SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 118
Confidential
1. Disconnect the FFC from the connector (CN100) of the CR SUB BOARD.
2. Hide the A part of the film (1) under the FFC.

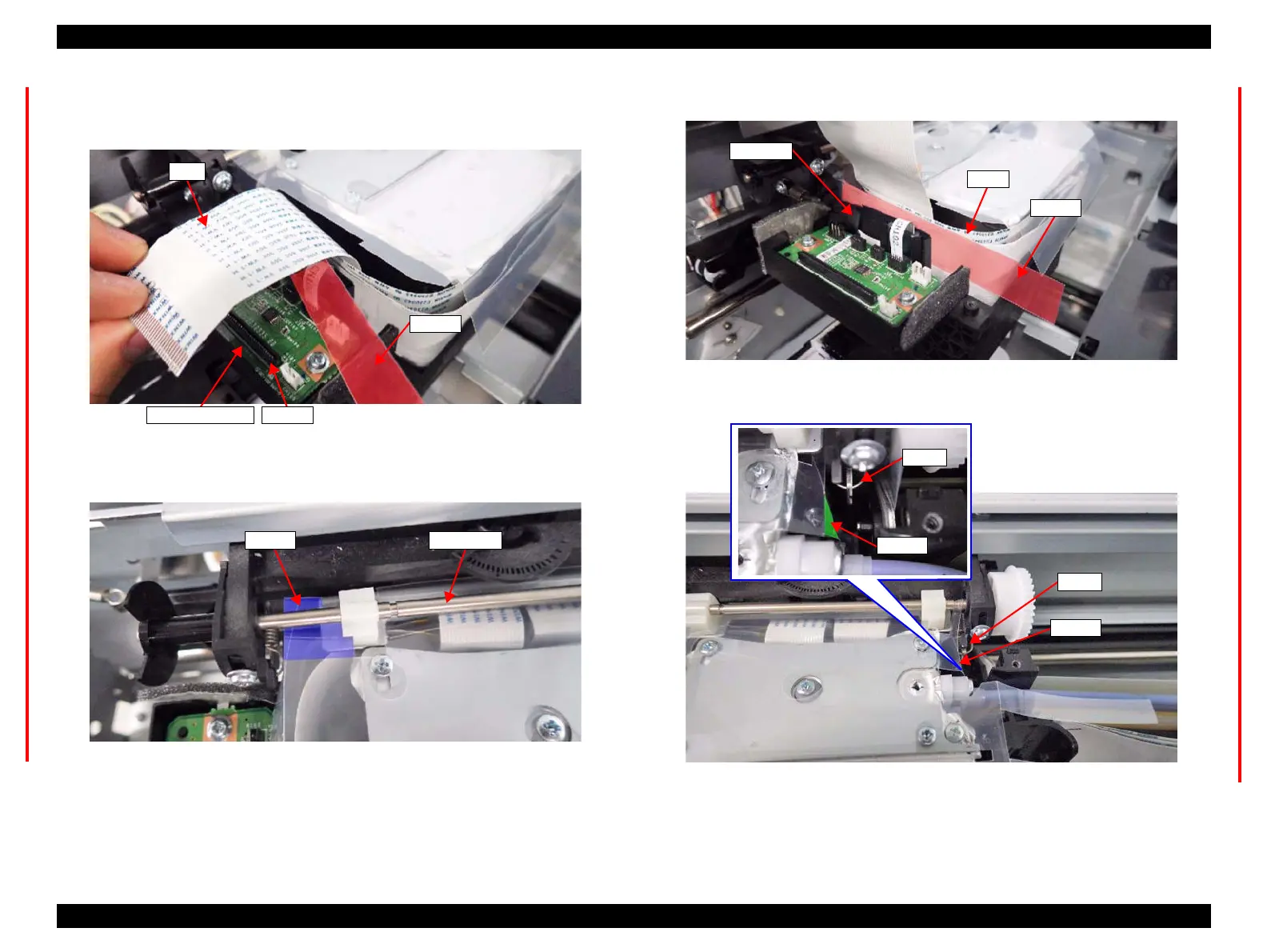

Figure 3-72. Installing the film (1) (1)
3. Insert the B part of the film (1) in under of the APG shaft.
Figure 3-73. Installing the film (1) (2)
4. Insert the A part of the film (1) in the space between the FFC and the CR UNIT.
Figure 3-74. Installing the film (1) (3)
5. Insert the C part of the film (1) in inside of spring.
Figure 3-75. Installing the film (1) (4)
CR SUB BOARD
CN100
FFC
A part
