DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 119
Confidential

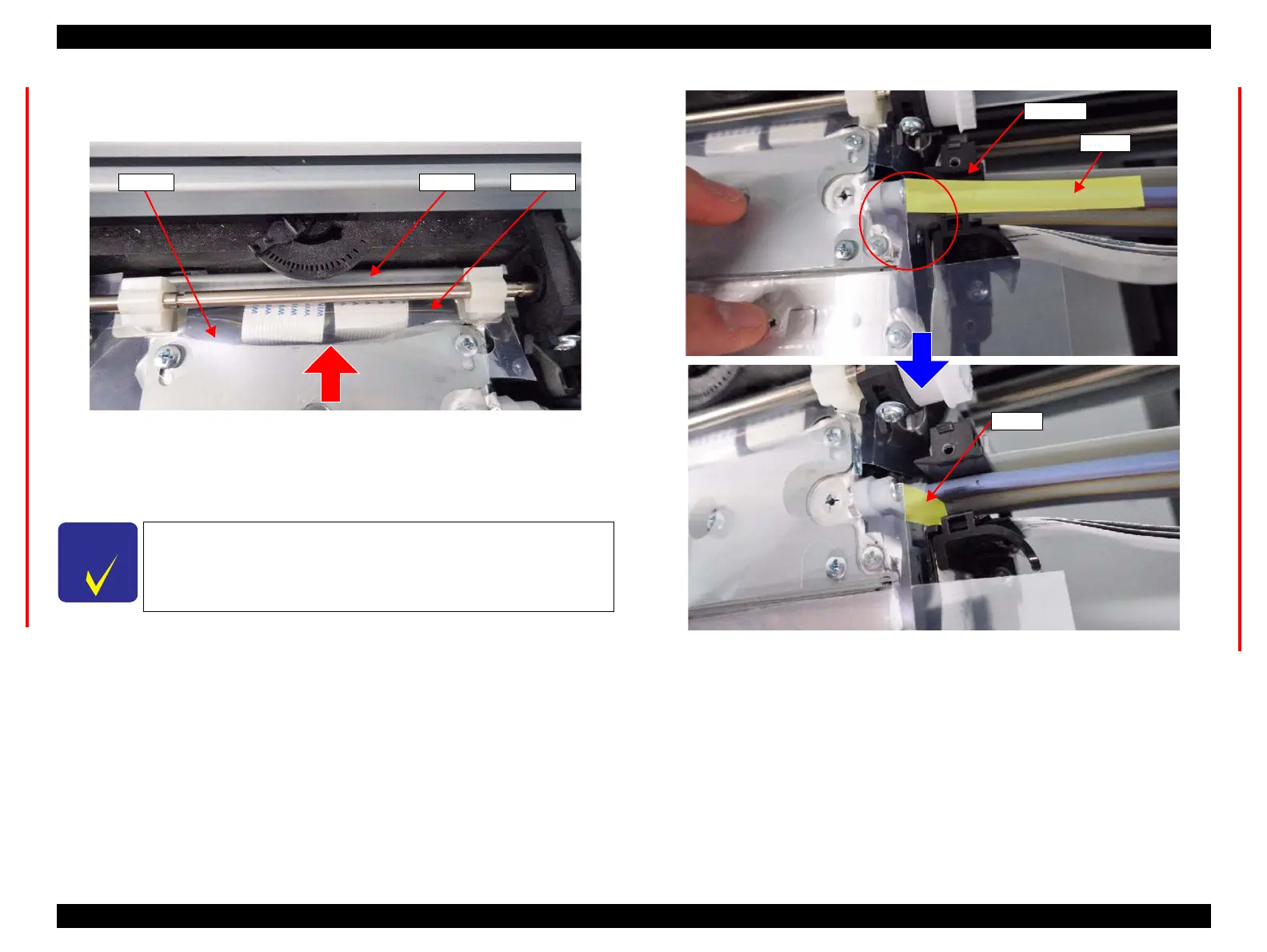

6. Press the film (1) in the direction of the arrow, and insert the film (1) between the
CR UNIT and frame.
Figure 3-76. Installing the film (1) (5)
7. Again, insert the C part of the film (1) in inside of spring exactly (see Figure 3-75).
8. Insert the D part of the film (1) in the Red-marking position of the CR UNIT.
ｘ
Figure 3-77. Installing the film (1) (6)
C H E C K
P O I N T
D part of the film (1) should not be outside than CR UNIT.
Film (1) Frame CR UNIT
D part
CR UNIT
D part
