DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 116
Confidential
4. Install the sponge (3) in the CR UNIT.

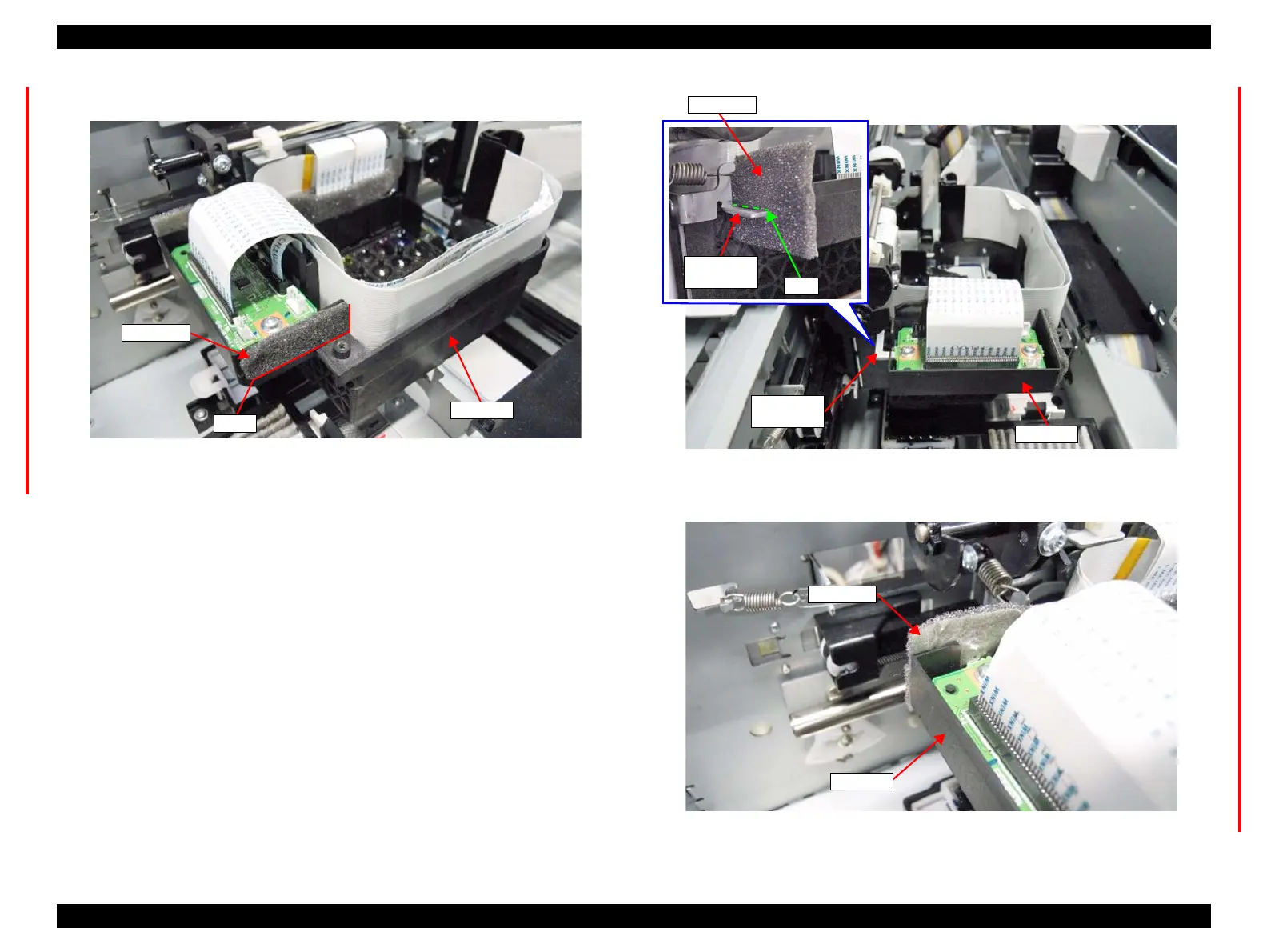

Figure 3-67. Installing the sponge (3)
5. Sandwich the L-shaped sheet metal by slit of the sponge (4).
Figure 3-68. Installing the sponge (4) (1)
6. Install the sponge (4) in the CR UNIT.
Figure 3-69. Installing the sponge (4) (2)
CR UNIT
Sponge (3)
Stick
Slit
L-shaped
sheet metal
Sponge (4)
CR UNIT
L-shaped
sheet metal
Sponge (4)
CR UNIT
