SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 121
Confidential

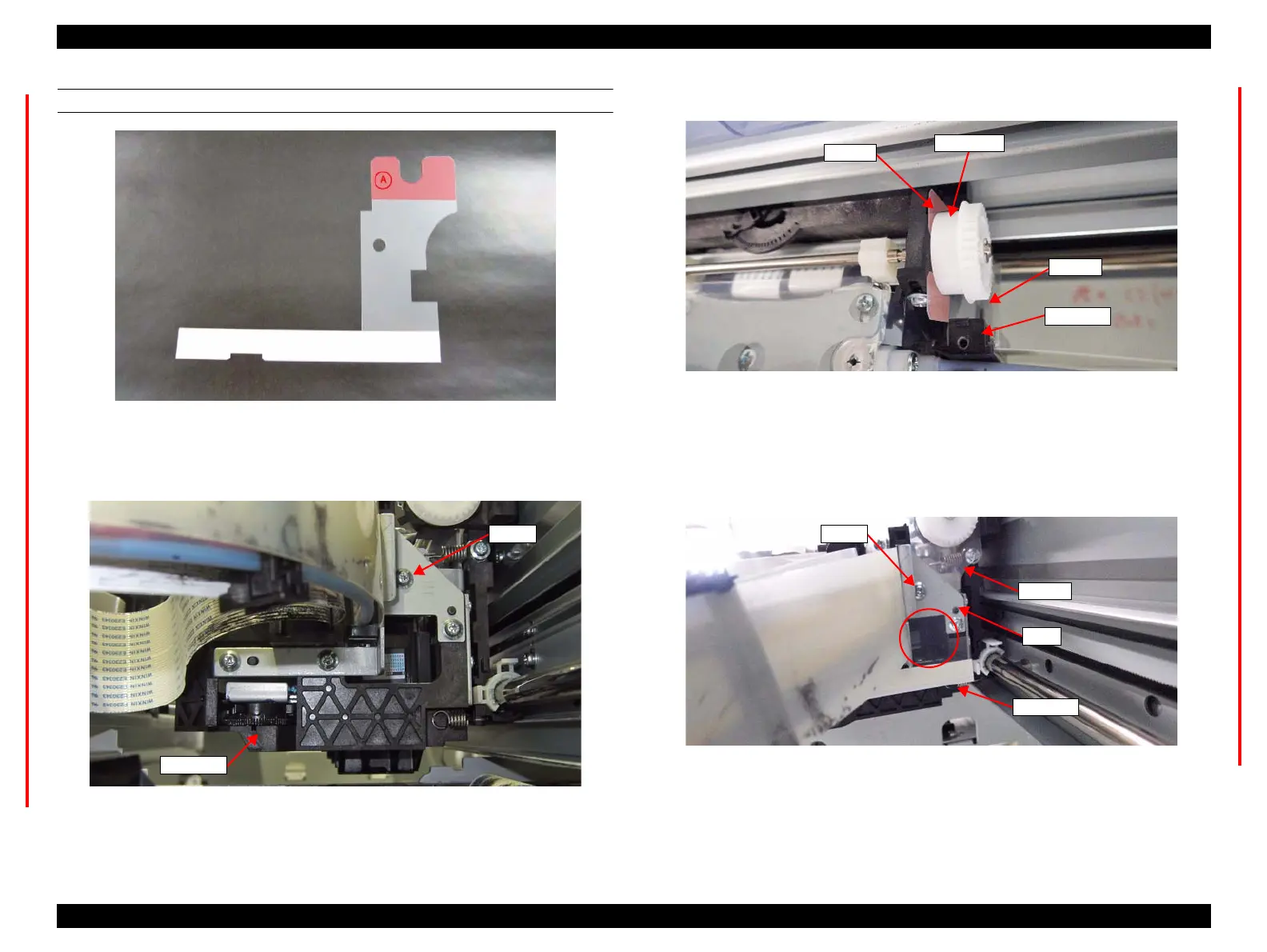

INSTALLING THE FILM (2)
Figure 3-80. Film (2)
1. Move the Table Feed Mechanism to the rear.
2. Remove the screw.
Figure 3-81. Installing the film (2) (1)
3. Insert A part of the film (2) in space between the CR UNIT and the APG Gear.
Figure 3-82. Installing the film (2) (2)
4. Insert the film (2) between the CR UNIT and plate.
5. Tighten the screw temporarily.
6. Check that the part of red-circle has been closed with the film (2).
7. Tighten the screw while holding the film (2).
Figure 3-83. Installing the film (2) (3)
APG Gear
Film (2)
A part
CR UNIT
Plate
Film (2)
CR UNIT
Screw
To Next Page
