SC-F2000
Revision C
PRODUCT DESCRIPTION
Hardware Specifications
19
Confidential
BACK

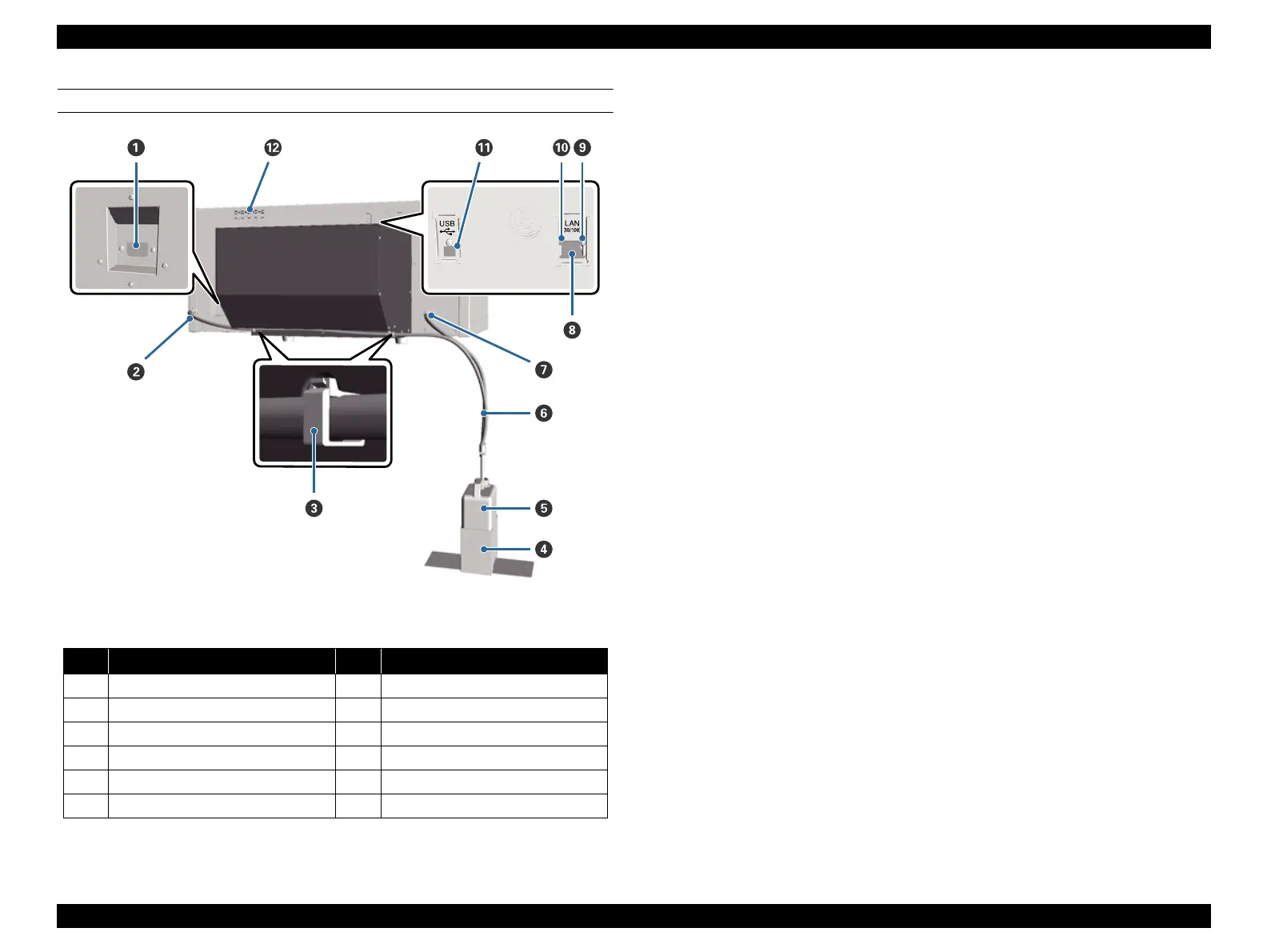

Figure 1-8. Back
Table 1-12. Back
No.
Name
No.
Name
1
AC Inlet
7
Waste Ink Outlet (Right)
2
Was
te Ink Outlet (Left
)
8
LAN Port
3
Tube Clamp
9
Data Lamp
4
Waste Ink Bottle Holder
10
Status Lamp
5
Waste Ink Bottle
11
USB Port
6
Waste Ink Tube
12
Air Inlet
18
20
Table of Contents
Chapter 1 PRODUCT DESCRIPTION
4
Table of Contents
8
Product Description
11
Basic Specifications
13
Electric Specifications
13
Ink Specifications
14
Available Media Specifications
15
Hardware Specifications
17
Dimensions and Weight
17
Installation Room Requirement
17
Part Names
18
Operation Panel Specifications
20
Setup Menu
23
Serviceman Mode
27
Status Sheet
28
Overview
30
Preliminary Check
30
Troubleshooting Procedure
31
Procedure after Troubleshooting
31
Remedies for Maintenance Requests
32
Remedies for Service Call Error
33
Remedies for Print Quality Troubles
45
Other Troubles
48
Trouble on Service Program
50
Trouble on NVRAM Viewer
51
Overview
53
Precautions
53
Cautions after Assembling
55
Orientation Definition
55
Recommended Tools
56
Parts Diagram
57
Disassembly Flowchart
64
Disassembly and Assembly Procedure
69
Preparation for Servicing
69
Consumables/Accessories
70
Housing
72
Electric Circuit Components
95
Carriage Mechanism/Ink System Mechanism
103
Fans
188
Chapter 4 ADJUSTMENT
192
Overview
193
Precautions
193
Adjustment Items and the Order by Repaired Part
194
Adjustment Items
203
Tools/Consumables for Adjustments
208
How to Set the Media for Adjustment
208
Service Program Basic Operations
210
NVRAM BACKUP / NVRAM Viewer
211
NVRAM Read Procedure
211
NVRAM Viewer Basic Operation
212
ADJUSTMENTS (Individual)
217
ADJUSTMENTS (Sequence)
218
Installing Firmware
219
Image Print
220
Counter Reset
221
References
222
Charge Flag Status
223
CR Related Adjustments
224
CR Belt Tension Adjustment
224
CR Scale Check
226
Manual Uni-D Adjustment
227
Manual Bi-D Adjustment
229
1St Dot Position Adjustment
231
Clamp Position Adjustment
233
Head Related Checks and Adjustments
234
Tube Inner Pressure Reduction
234
Head ID Input
235
Nozzle Check
237
Cleaning
238
Head Inclination Adjustment
239
Head Slant Adjustment
243
PG Check
246
Ink Supply Related Checks and Adjustments
248
Discharge
248
Tube Inner Cleaning
249
Initial Ink Charge
250
TF Adjustments
251
Pulley and TF Belt Position Adjustment
251
TF Belt Tension Adjustment
253
TF Timing Belt Tension Adjustment
255
Obstacle Sensor Adjustment
257
TF Position Detection Sensor Check
261
TF Scale Check
262
TF Adjustment
263
TF Encoder Position Adjustment
264
Platen Parallelism Check
265
Parallelism Check & Adjustment for the Parallel Adjustment Plate
268
Electrical Component Adjustments
273
NVRAM Data Backup/Restore
273
MAC Address Input
274
Serial Number & USB ID Input
275
RTC Input
276
Board Exchange Counter
277
USB Port and Network Communication Check
278
Panel Setting Reset & Job History Reset
279
Panel LCD Operation Check
280
Panel Buttons Operation Check
280
LED Lighting Test
281
Motor Measurement & Automatic Adjustment
282
Value Reset
284
Chapter 5 MAINTENANCE
285
Overview
286
Storing the Printer
287
Transportation
288
Exchange Parts
289
Cleaning
290
Preliminary Check
290
Lubrication
293
Chapter 6 APPENDIX
300
Block Wiring Diagram
301
Connection Diagram
302
Sensors
302
Left Ink Cartridge Holder
302
Right Ink Cartridge Holder
303
Circulation Pump
303
Pump Cap Unit / Cloth Wiper Unit
304
Fan
305
CR Unit
305
TF Mechanism
306
Panel Menu Map
307
Part Names Used in this Manual
310
Exploded Diagram/Parts List
312
