SC-F2000 Revision C
MAINTENANCE Lubrication 294
Confidential

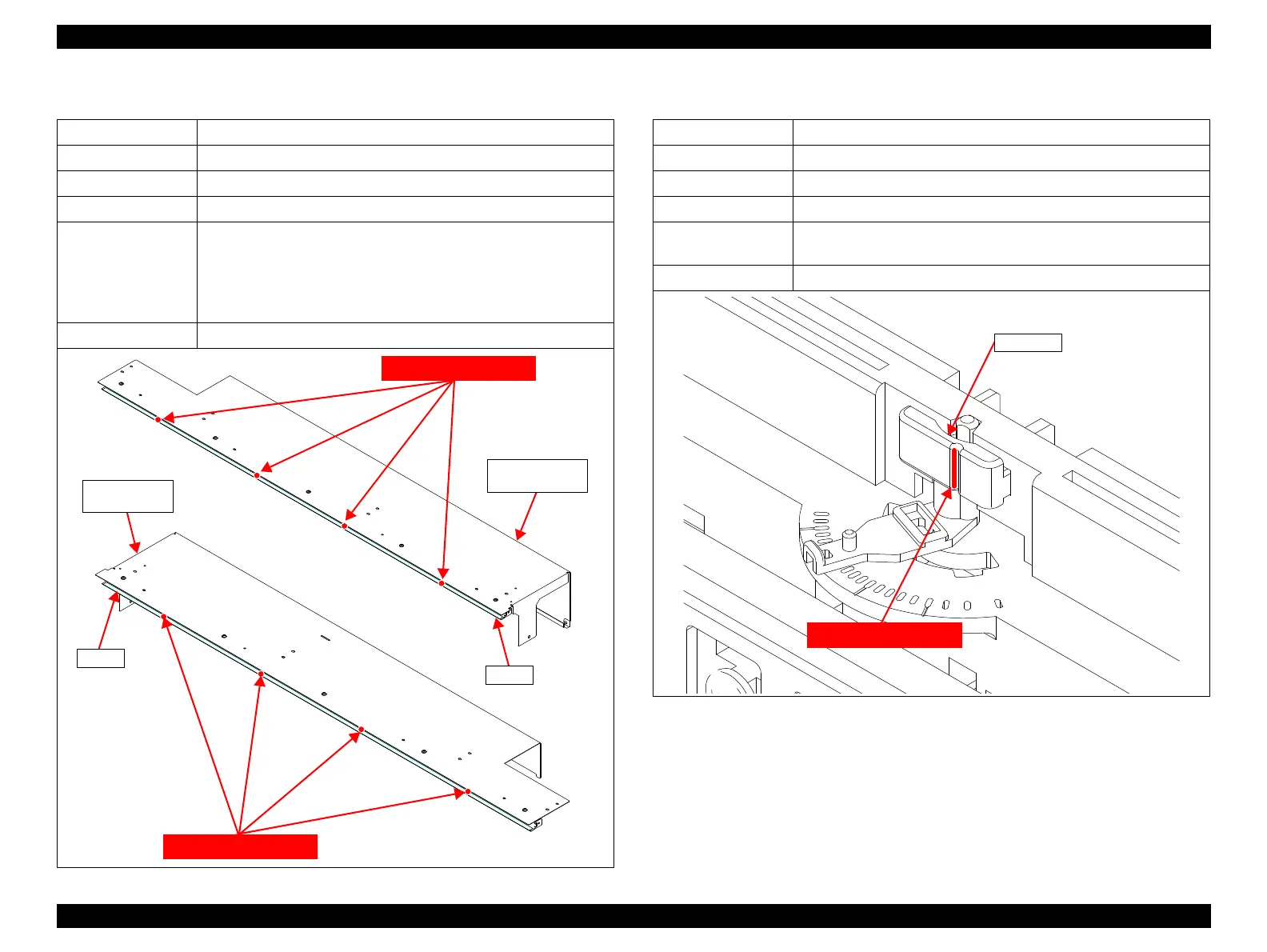

[Lubrication 1] [Lubrication 2]
Part Name LEFT FRONT COVER / RIGHT FRONT COVER
Lubricants (Part Code) G-26 (1080614)
Amount φ 2mm × 8mm × 8 points
Lubrication Tool φ 2 mm injector
Lubrication Manner
Apply the lubricant on the sheets of the LEFT FRONT COVER /
RIGHT FRONT COVER.
Apply the lubricant on the midpoint of the screws.
Apply the lubricant with a φ 2 mm injector, then spread the lubricant
with a waste cloth.
Note Be careful not to apply the lubricant beyond the specified point.
RIGHT FRONT
COVER
LEFT FRONT
COVER
Sheet
Lubrication Points
Lubrication Points
Sheet
Part Name CR Slider
Lubricants (Part Code) G-84 (1516265)
Amount φ 2 mm × 6 mm
Lubrication Tool φ 2 mm injector
Lubrication Manner
On the contact point of the CR Slider with the Sub Shaft Guide Plate,
lubricate by filling the lubricant into the groove.
Note Be careful not to apply the lubricant beyond the specified point.
CR Slider
Lubrication Point
