Epson Stylus Color 1520 Service Manual

EPSON Stylus COLOR 1520
Rev. A
5-
4

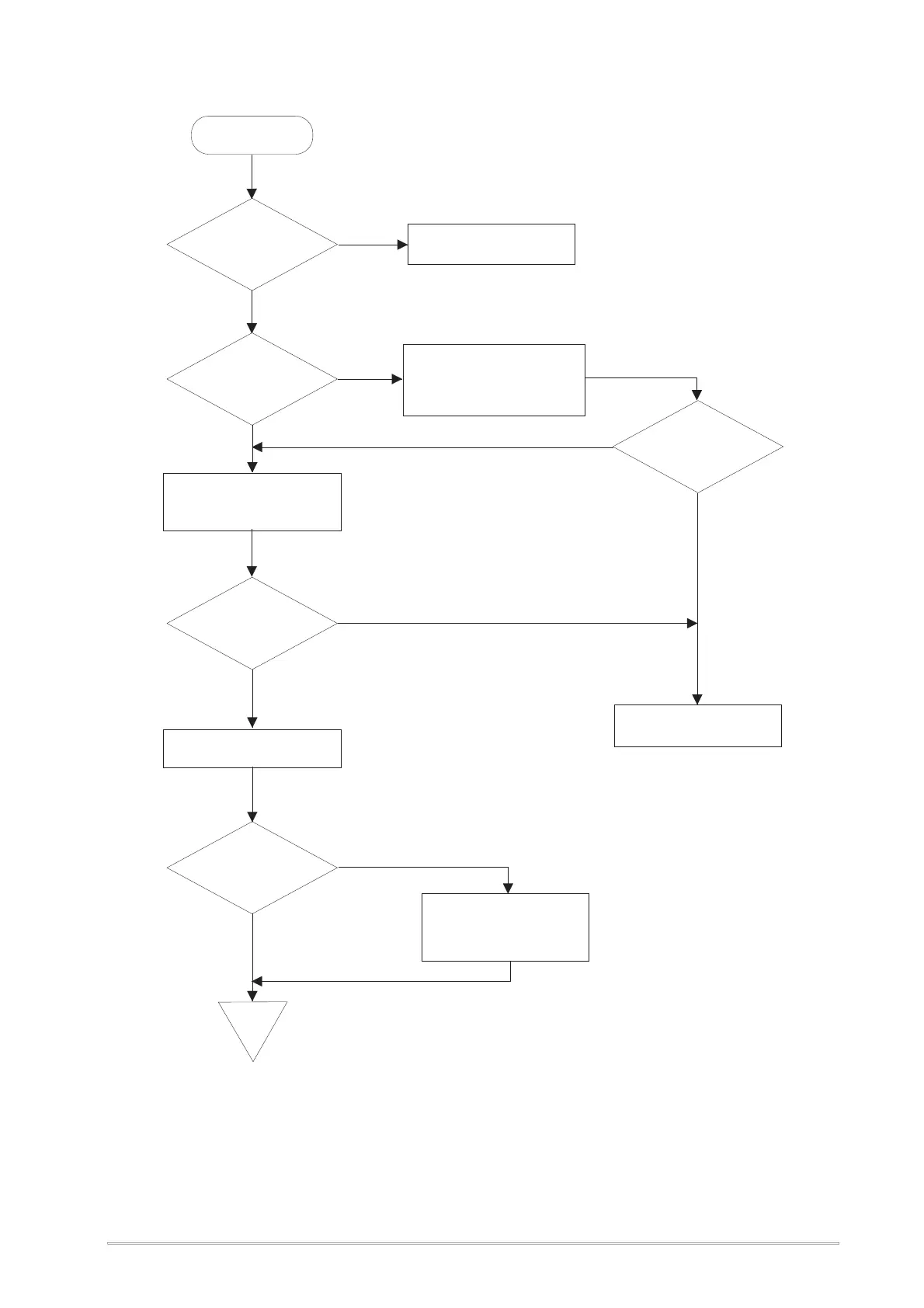

1. The printer does not operate at all.
START
Is the AC
input voltage
correct?
Apply the correct
AC input voltage.
Check the voltage output
from the CN2 on the
PSB/PSE board.
Is the voltage correct?
Replace the MAIN board.
Is the problem
corrected?
Replace the PSB/PSE
board.
Check the motor and
driver circuits.
(Refer to Section 5.5.)
YES
NO
Has the
fuse (F1) on the
PSB/PSE board
blown?
Does the
fuse blow again
at power on?
Replace the fuse and
disconnect the connector
CN2 on the PSB/PSE
board.
END
NO
YES
YES
NO
YES
NO
YES
NO
Figure 5-2. Flowchart (1)

Epson Stylus Color 1520 Specifications

General

Color	Yes
Maximum resolution	600 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	- ppm
Maximum input capacity	100 sheets
Envelopes sizes	10, C5, DL
Standard media sizes	4\
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4
ISO B-series sizes (B0...B9)	B5
Power requirements	120V AC, 50/60 Hz
Printing noise level	45 dB
Maximum operating temperature range (T-T)	-20 - 60 °C
Market positioning	Home & office
