Epson Stylus CX4900 User Manual

EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
DISASSEMBLY/ASSEMBLY Printer Section 142
 External view (2)

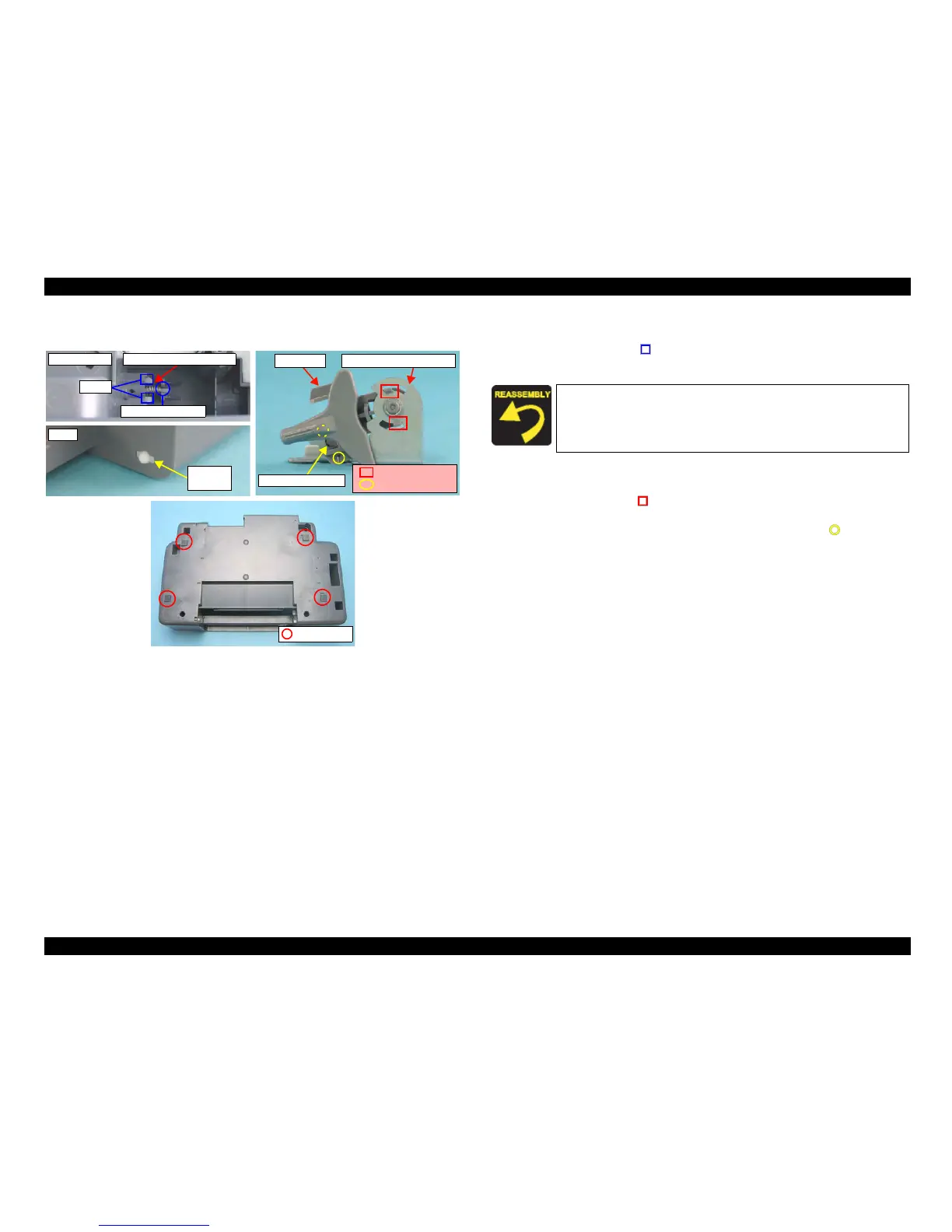

Figure 4-22. Removing Stacker L
ock/PG Lever/Rubber Feet
 Stacker Lock Removal
1. Remove the tabs (x2, ) that secure the Stacker Lock, and remove the
Stacker Lock and Compression Spring 5.1 from the Housing, Lower.
 PG Lev
er Removal
1. Release the tabs (x2, ) that secure the PG Lever to the PG Lever Mounting
Plate.
2. Remove Torsion Spring 26.1 from the installation holes (x2, ) of the PG
Lever and the PG Lever Mounting Plate, and remove the PG Lever.
 Rubber Feet Removal
1. Rem
ove the rubber feet (x4) from the Housing, Lower.
Tabs
Compression Spring 5.1
Shaft and Groove
Inner Surface
Stacker
Lock
Right
PG Lever
Torsion Spring 26.1
Tabs
Installation Holes
PG Lever Mounting Plate
Rubber Feet
Pass the shaft of the Stacker Lock through the groove of the
Housing Lower.
