EPSON Stylus CX4900/CX4905/CX5000/DX5000/DX5050/CX5900/CX6000/DX6000/DX6050 Revision A
MAINTENANCE Overview 195

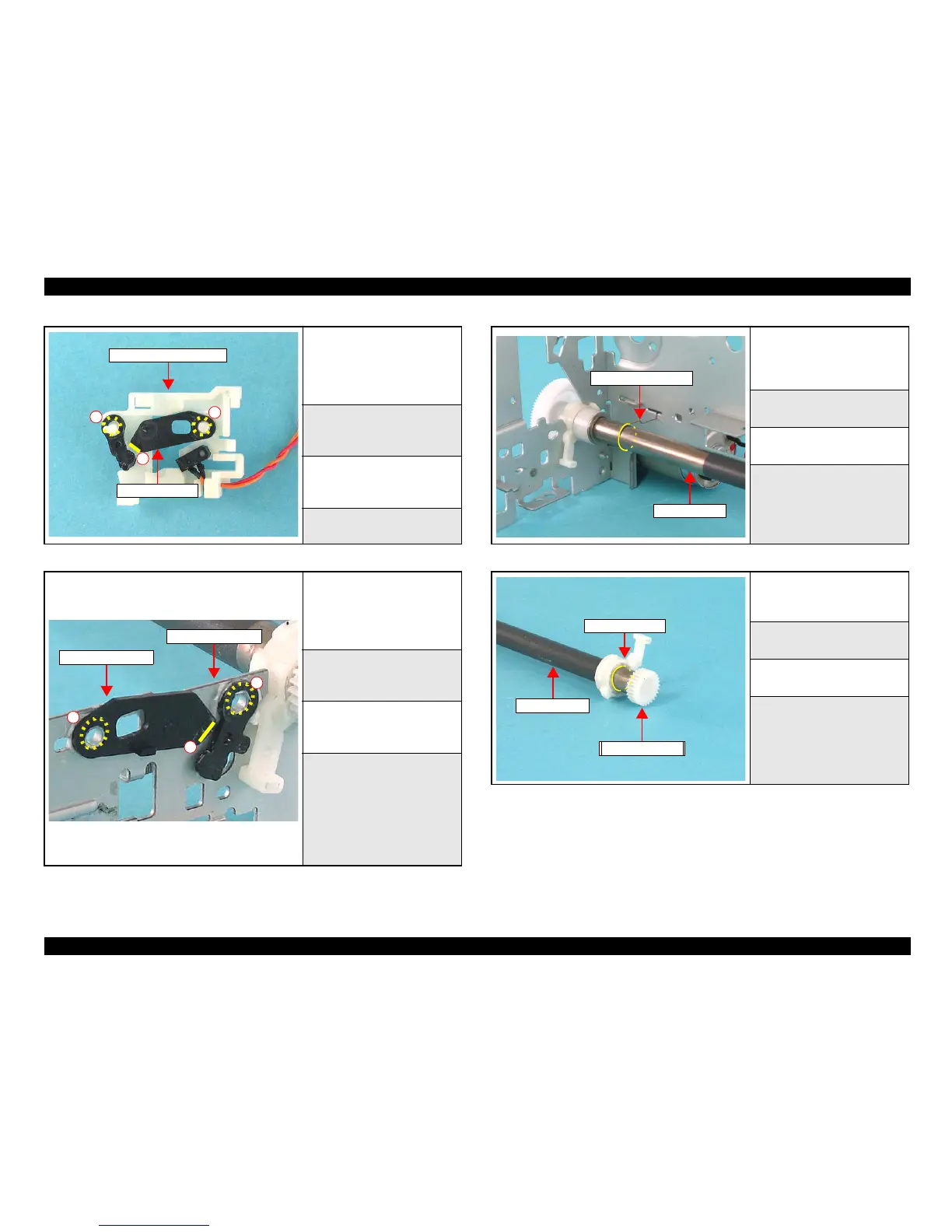

Figure 6-10. Lubrication on Link Lever (Left)
Figure 6-11. Lubrication on Link Lever (Right)
Figure 6-12. Lubrication on PF Roller Unit (1)
Figure 6-13. Lubrication on PF Roller Unit (2)
<Lubrication Point>
1. Edge line of the Link Lever
(Left)
2. Around two guide pins of the
Link Lever Holder (Left)
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. φ1 x
1mm
2. φ1 x φ x 2 points
<Remarks>
Use a injector to apply.
<Lubrication Point>
1. Edge line of the Link Lever
(Right)
2. Around two guide pins of the
Main Frame (Right)
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. φ1 x
1mm
2. φ1 x φ x 2 points
<Remarks>
Use a injector to apply.
1
2
2
Link Lever (Left)
Link Lever Holder (Left)
1
2
2
Link Lever (Right)
Main Frame (Right)
<Lubrication Point>
Contact point between the PF
Grounding Spring and the PF
Roller Unit
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x φ of the PF Roller Unit
<Remarks>
Use a injector to apply.
<Lubrication Point>
Contact point between Bush 10
(Right) and PF Roller Unit
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x φ of the PF Roller Unit
<Remarks>
Use a injector to apply.
G-26 must not spread to Spool
Gear 13.5.
PF Grounding Spring
PF Roller Unit
Spool Gear 13.5
Bush 10 (Right)
PF Roller Unit
Spool Gear 13.5
