Epson TM L90 Technical Reference Guide

Setup 29
TM-L90/TM-L90 Peeler Model Technical Reference Guide
5. To fine tune the amount of remaining paper that is detected by the N.E. detector, move the
N.E. detector holder shown in the illustration "N.E. Detector Holder" on page 29 and adjust
the position.
Note:
Note that the direction to move the roll paper N.E. detector varies depending on the method of printer
installation (vertical/horizontal).

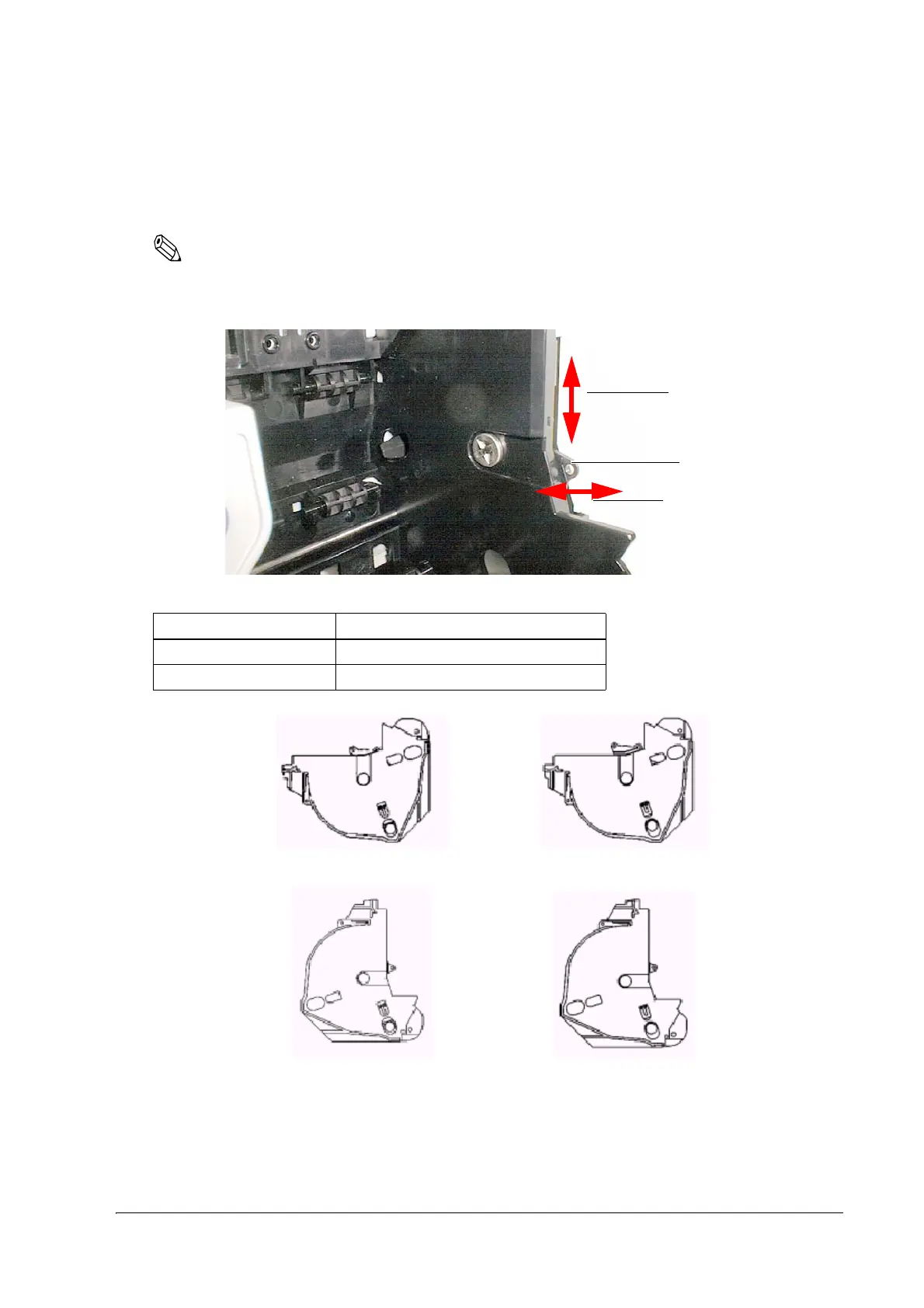

N.E. Detector Holder
Adjustment Positions of N.E. Detector
Adjustment Position Number Specified Thermal Paper Dimension
#1 Approximately 36 mm {1.42"}
#2 Approximately 41 mm {1.61"}
N.E. detector holder
Adjustment direction for
horizontal installation
Adjustment direction for
vertical installation
Holder Position #1 for horizontal Holder Position #2 for horizontal
Holder Position #1 for vertical Holder Position #2 for vertical

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
