Epson TM L90 Technical Reference Guide

32 Setup

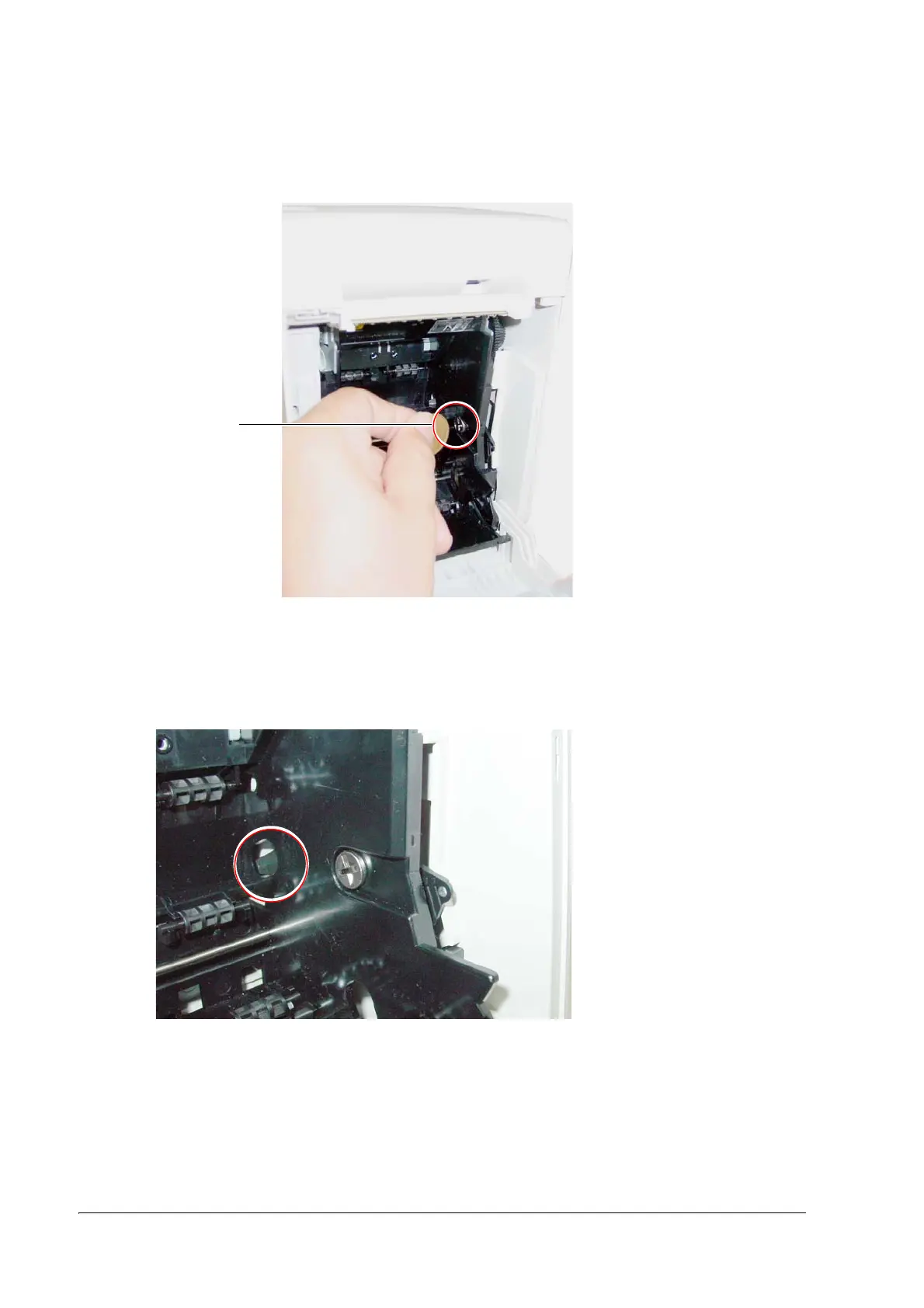

4. Using a coin or similar tool, loosen the sensor adjustment screw.
5. Adjust the roll paper near end sensor so that the claw of the roll paper near end sensor
projects from the hole near the bottom of the device. (Refer to "Part names and the locations
of N.E. detector components" on page 27 and "Near end sensor adjustment position" on page
33.)
6. To make fine adjustments to the amount of paper remaining detected by the roll paper near
end sensor, finely adjust the position of the near end sensor holder by moving it in the
direction of the arrows as shown in the figure "N.E. Detector Holder" on page 29.
sensor
adjustment
screw
Adjust the sensor so that it
projects from the window.

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
