Page 14 of 159

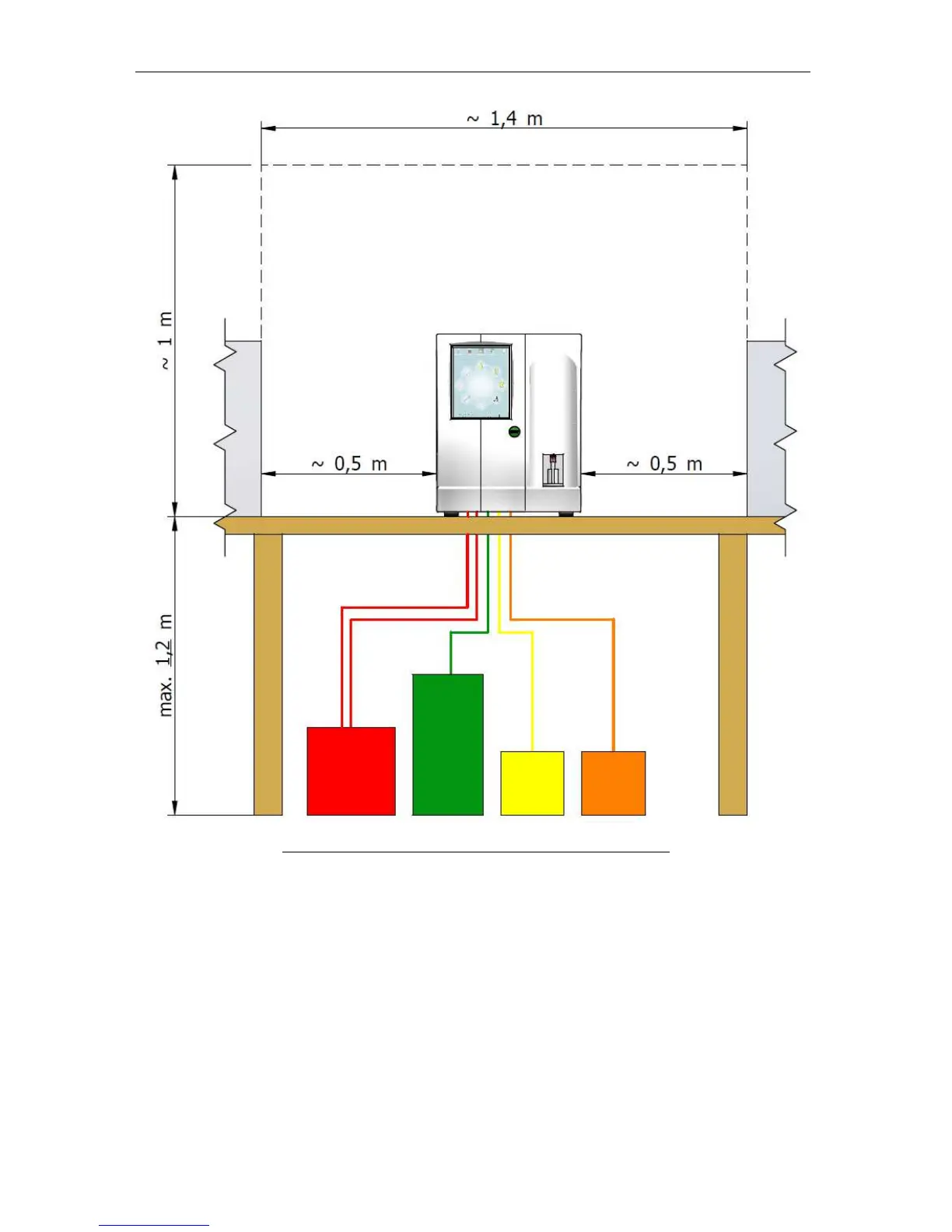

Figure 2. ELite 5 Without Autosampler Space Requirements
1.7 Weight Requirements
The ‘ELite 5’ analyzer weighs 35 Kg (77 lb) without the Autosampler. The ‘ELite 5’ with
optional Autosampler weighs 47Kg (104 lb). Adding an external keyboard, printer etc. can
bring the total weight up to 60 Kg (132 lb). If you decide to store the reagents on the same
surface, then the combined weight can reach 100 Kg (220 lb).
Please select a table, laboratory shelf, or other location which can support the weight of the
‘ELite 5’ with accessories and is free from vibration.
