4.2.7 Right Side Assembly
Aspiration Needle
Horizontal, Vertical
Motion Unit
Sample Rotor
Washing Head
Optical Head
Power Supply
Autosampler
Connector

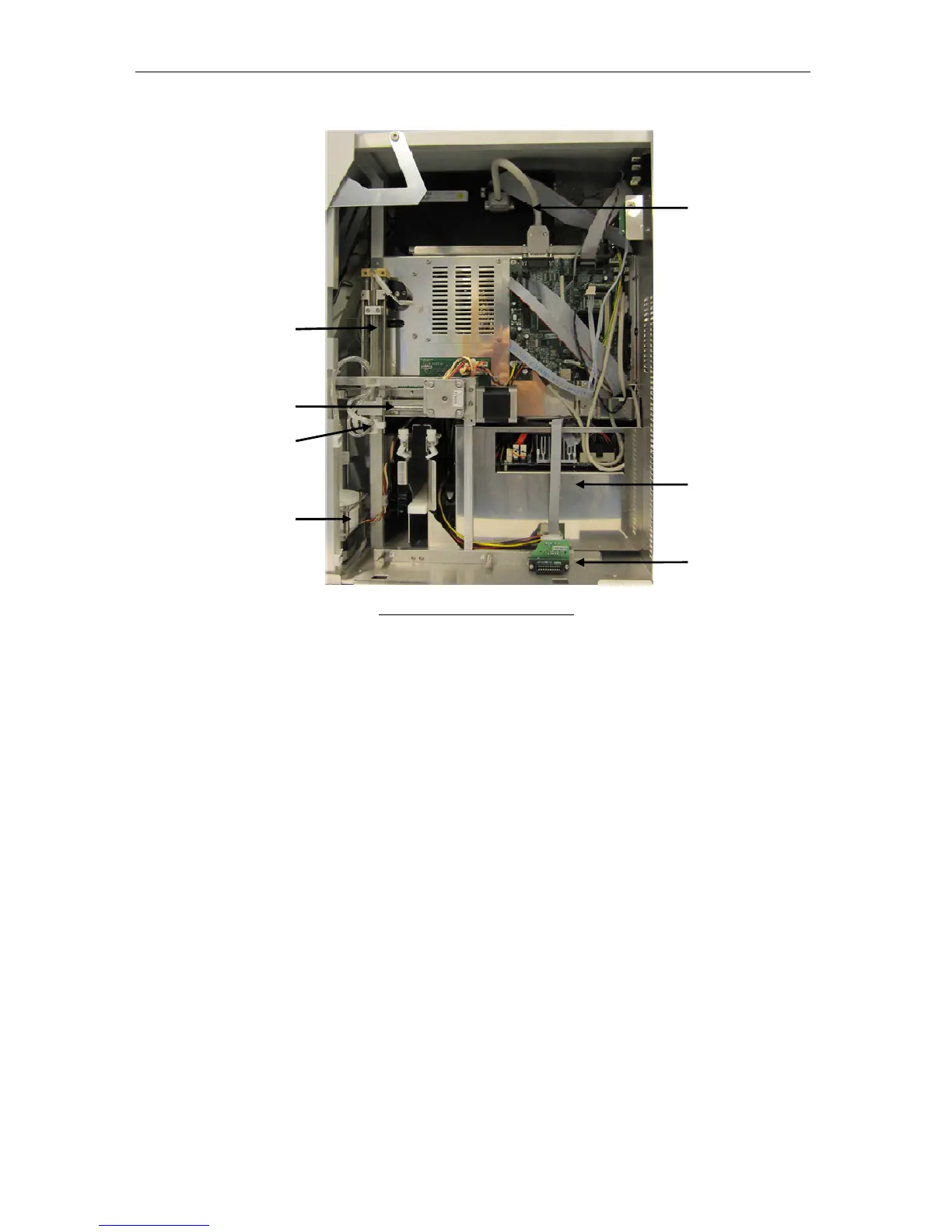

Figure 14 Right Side Assembly
• Aspirating needle aspirates a blood sample from the sample tube.
• Horizontal, vertical motion unit positions the aspiration needle.
• Washing head cleans the aspiration needle to prepare for the next sample.
• Sample rotor holds the sample tube for single tube manual presentation.
• Autosampler connector is the power and control connector of the optional
Autosampler.
• Optical head contains the laser source, optical detectors and auto alignment
mechanism for the optical measurement.
