7.5 Result Display
After the analysis is completed, the result screen displays all measured parameters, flags,
histograms and scatter plots. This information is automatically stored in the database, and
stored result data can be retrieved at any time from the database.
Histograms and scatter plots can be zoomed for closer inspection. Click or tap the histogram
or scatter plot to magnify it. Click or tap the ‘Close’ button on the upper right corner of the
image to close it and return to the result display.

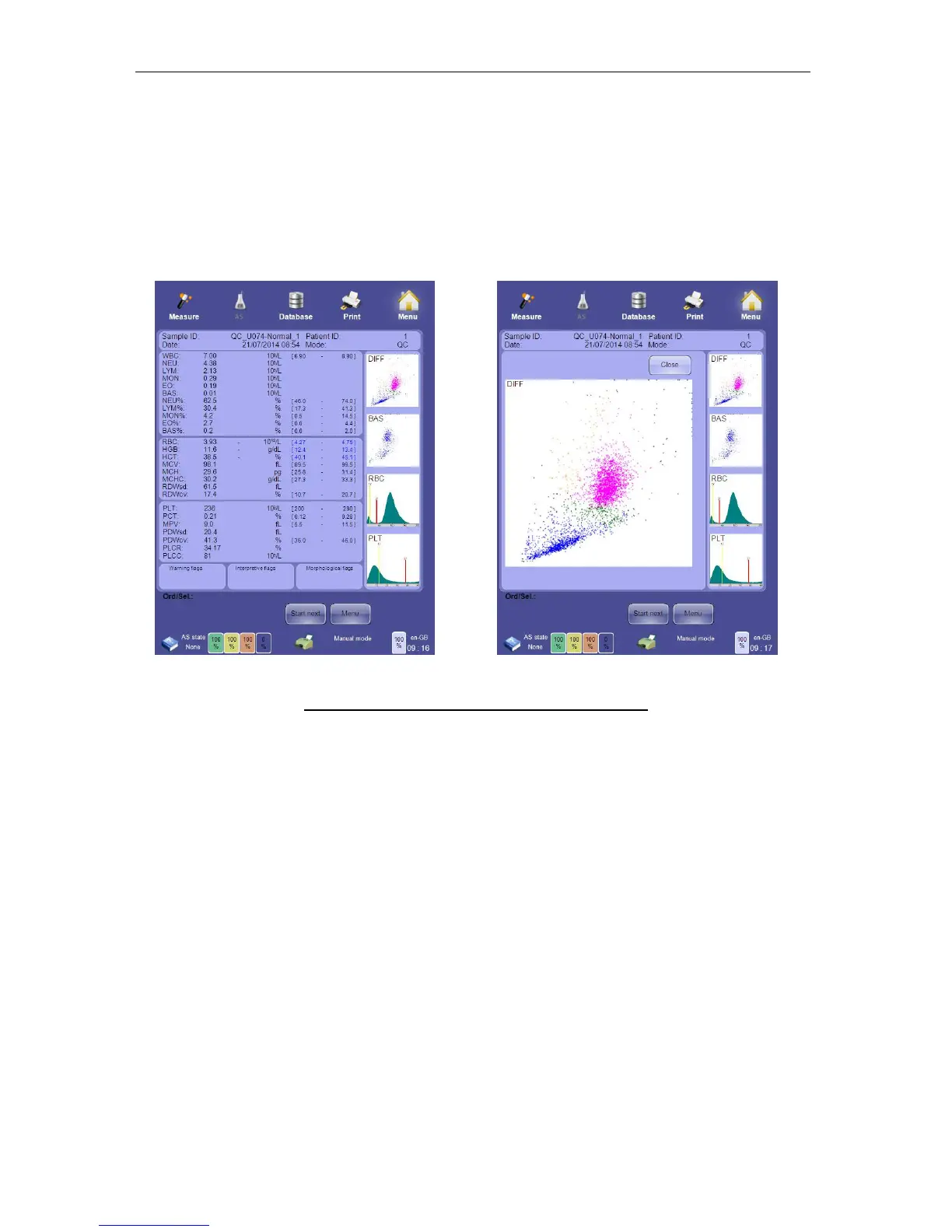

Figure 51. Results Display and Magnified Scatter Plot
Comparison of parameters to the normal range can be displayed numerically or graphically.
See section 13.7 for more information on display of normal range status. Other kinds of flags
are also displayed in the result screen.
See section 8 for detailed information about the ‘ELite 5’ result screen.
7.6 Printing Reports
Click or tap the Print icon at the top of the screen to send a report (or any displayed screen)
to the external printer.
7.7 The Measurement Process
The ‘ELite 5’ analyzer measures 24 parameters of whole human blood samples. Internal
dilutions are made to allow measurement of particles in the sample. Manual or automatic
mode samples are processed in the same way.
