7.4.3.6 Controlling the Autosampler
Detailed information about the Autosampler is available from the Autosampler info panel.
You can also reset the Autosampler from this panel. Double click or tap the Autosampler
status in the bottom left corner of the screen to view the Autosampler info panel. With this
panel, you can command the Autosampler to repeat the last command, or reset the
Autosampler. You can also view Autosampler messages with detailed information about the
last action or sample tube processed.

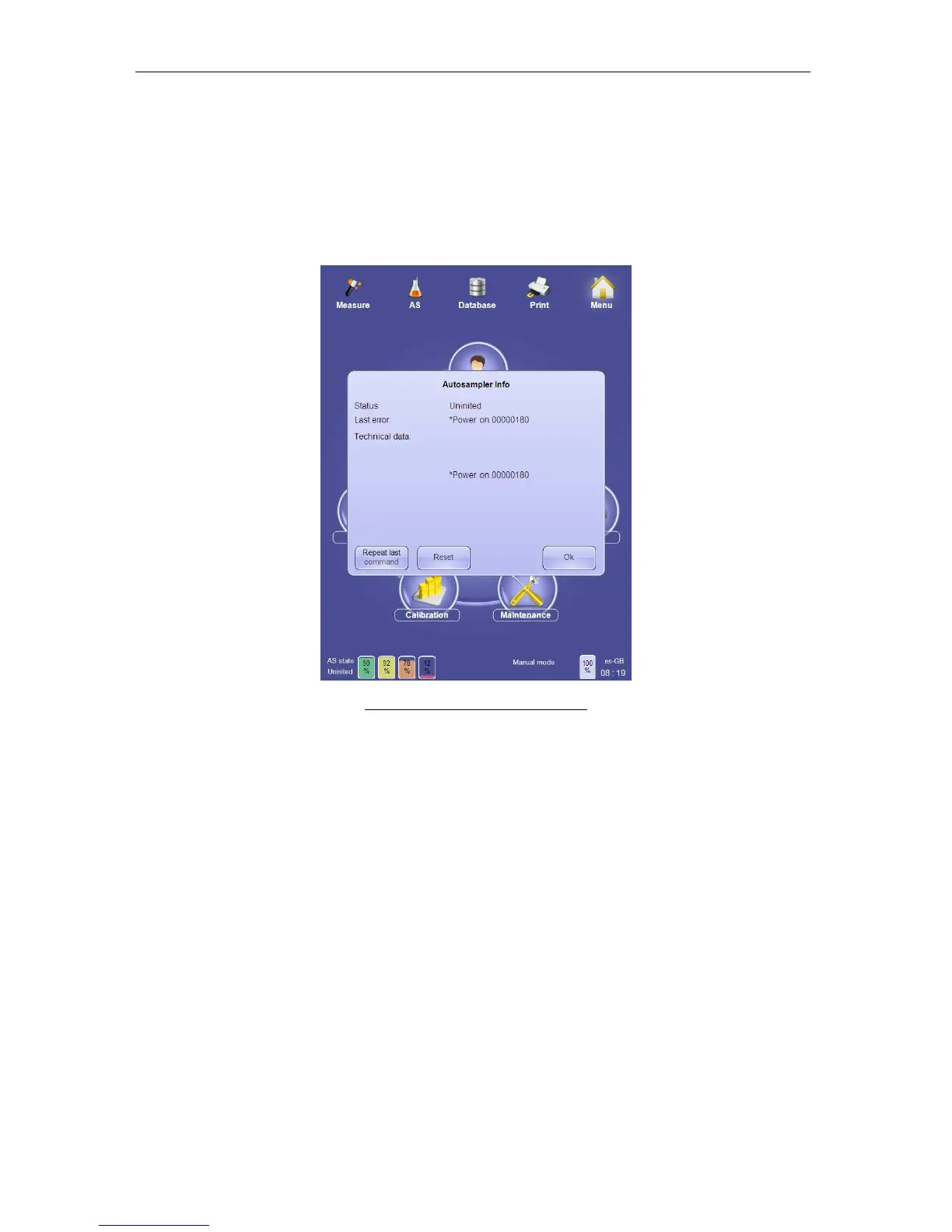

Figure 50. Autosampler Info Panel
The following is a list of messages from the Autosampler:
• Home message:
o Response after a successful reset
o +HOME_XX.YY (The XX.YY is the software revision number)
• VT zzzzzzz XY:
o Vacutainer® style tube detected
o Barcode content: “zzzzzzzzzzz”
o Tray position XY
• MV zzzzzzz XY:
o Monovette® style tube detected
o Barcode content: “zzzzzzzzzzz”
o Tray position XY
• +F : confirmation that the tube was moved from the mixing to the sampling position
• The power-on message contains the serial number of the Autosampler unit.
During the reset cycle are the Autosampler components moving to their ‘home position’. The
mixing stations moves to an upright position, the active rack moves back on to the sample
tray, and the entire tray moves to its home position. Small Sample Mode is not supported by
the Autosampler.
