Page 40 of 159
5.7.6 Main Menu
Tapping or clicking the ‘Menu’ icon with the main menu graphic displays and allows access
to the main menu. The main menu is automatically displayed when the ‘ELite 5’ analyzer is
started up. The main menu icons are arranged in an intuitive and attractive circular design.

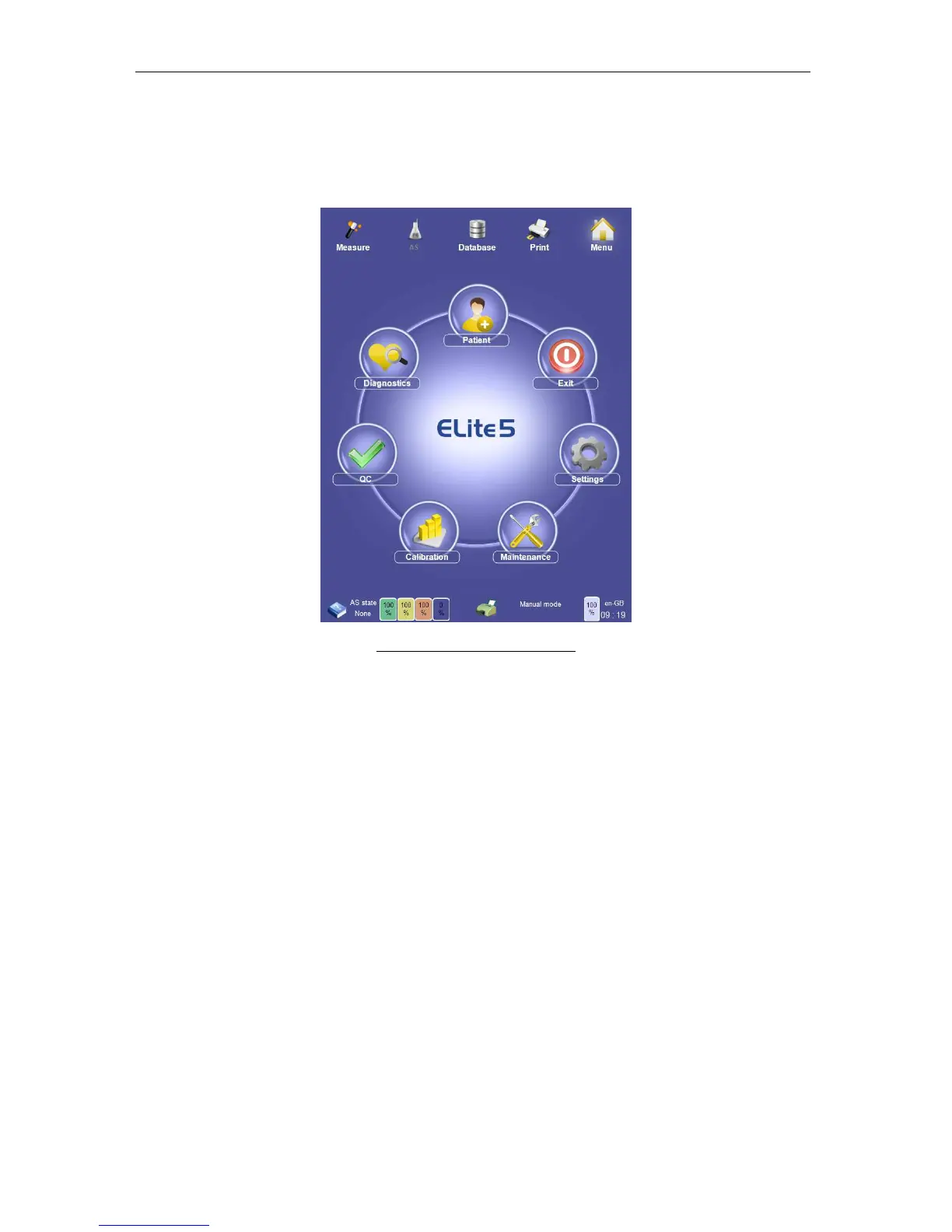

Figure 23. ‘ELite 5’ Main Menu
5.7.7 Autosampler (AS) Control Panel
If you have an optional Autosampler installed, the Autosampler control panel can be opened
by double clicking/tapping the Autosampler status on the left side of the status display on the
bottom of the screen. The Autosampler control panel allows you to see whether the
Autosampler is operational and perform an Autosampler initialization.
See section 7.4.3.6 for more details about the Autosampler control panel.
5.7.8 Adjust the Time and Date
Double click/tap the time display on the right side of the status display on the bottom of the
screen to bring up a panel for adjusting the stored time and date of the ‘ELite 5’ analyzer.
See section 13.9 for more information about time and date adjustment.
5.7.9 Open the Warning Panel
If an error or warning is currently active, an exclamation point icon appears on the status
display. Click the icon to review the active error or warning and jump to the appropriate menu
where the error or warning can be addressed (such as reagent replacement).
