Getting Started With Patching 17

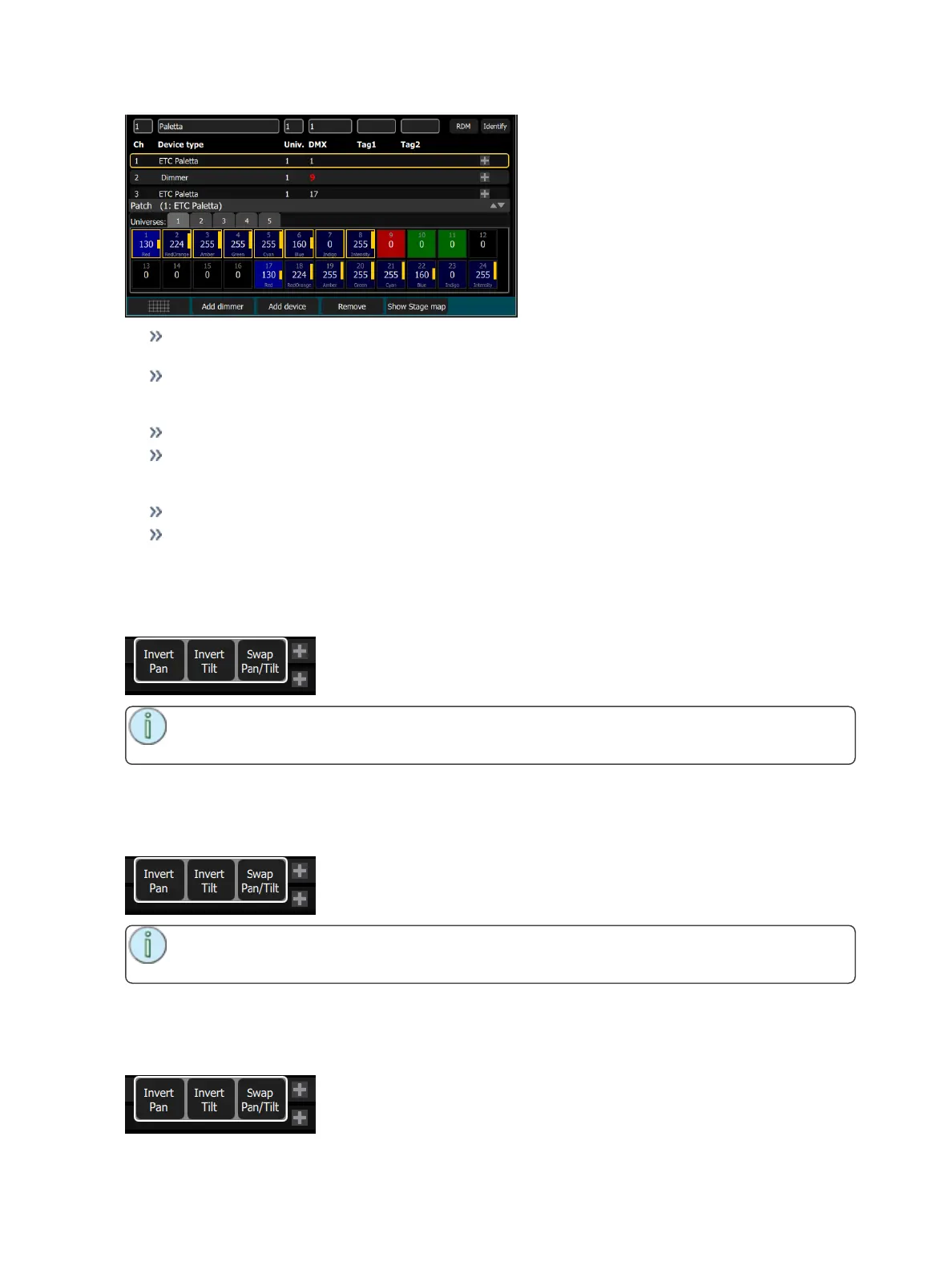

Each cell shows the DMX address, the value in the range 0-255 and the name of the parameter if for
a device patched with a personality.
Cells colored in light blue indicate the base address of the item, which is the address entered in the
Patch screen DMX box. The following cells in dark blue show the following DMX addresses used by
the device according to the size of its footprint.
Cells colored in green indicate single channel dimmers.
Cells colored in red indicate patching overlap, where more than one dimmer or device is patched to
the same DMX address. In some cases it may be desirable to patch with overlaps but usually it is a
bad idea to be avoided if possible.
Cells in black are unoccupied and not patched.
A yellow bar graph indicates the approximate value being output.
Invert Pan
Switches the pan control to run in the opposite direction. Click on the + button in patch for the device you
want to invert pan.
Note: Use this if you have rigged a light upside-down or back-to-front compared to other similar
lights so that if they are all selected together their movements will be in similar directions.
Invert Tilt
Switches the tilt control to run in the opposite direction. Click on the + button in patch for the device you
want to invert tilt.
Note: Use this if you have rigged a light upside-down or back-to-front compared to other similar
lights so that if they are all selected together their movements will be in similar directions.
Swap Pan and Tilt
Exchanges the pan and tilt channels so that pan on the console controls tilt on the device and vice-versa.
Click on the + button in patch for the device you want to swap pan and tilt.
