HMG-838PT & HMG-838EPT Web Configuration 17-1
Chapter 17
VCL

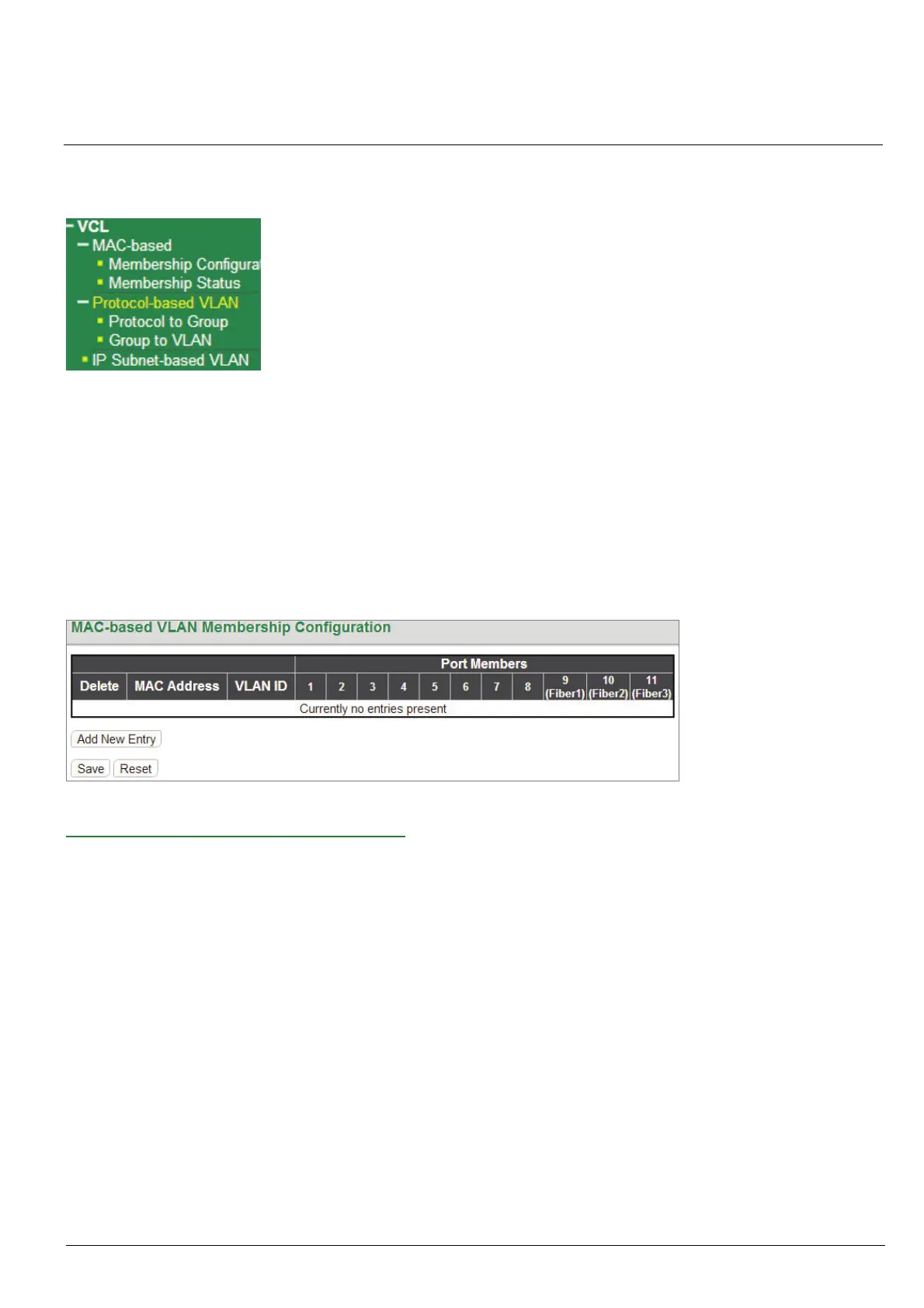

The “VCL” menu contains the following sub menus.
17-1 MAC-based
MAC-based VLAN configuration page is to set up VLANs based on source MAC addresses. When ingress untagged
frames are received by a port, source MAC address is processed to decide which VLAN these untagged frames belong.
When source MAC addresses does not match the rules created, untagged frames are assigned to the receiving port’s
native VLAN ID (PVID).
17-1.1 Membership Configuration
MAC-based VLAN Membership Configuration:
MAC Address: Indicate the source MAC address. Please note that the source MAC address can only map to one
VLAN ID.
VLAN ID: Map this MAC address to the associated VLAN ID.
Port Members: Ports that belong to this VLAN.
Delete: Click “Delete” to remove this entry.
Click “Add New Entry” button to create a new rule.
Click “Save” button the changes will be saved and newly entered rules are enabled.
Click “Reset” button to clear all unsaved configuration.
17-1.2 Membership Status
This page shows the status of current VCL rules.
