G.8032 Configuration Procedure
HMG-838PT & HMG-838EPT Web Configuration A-14

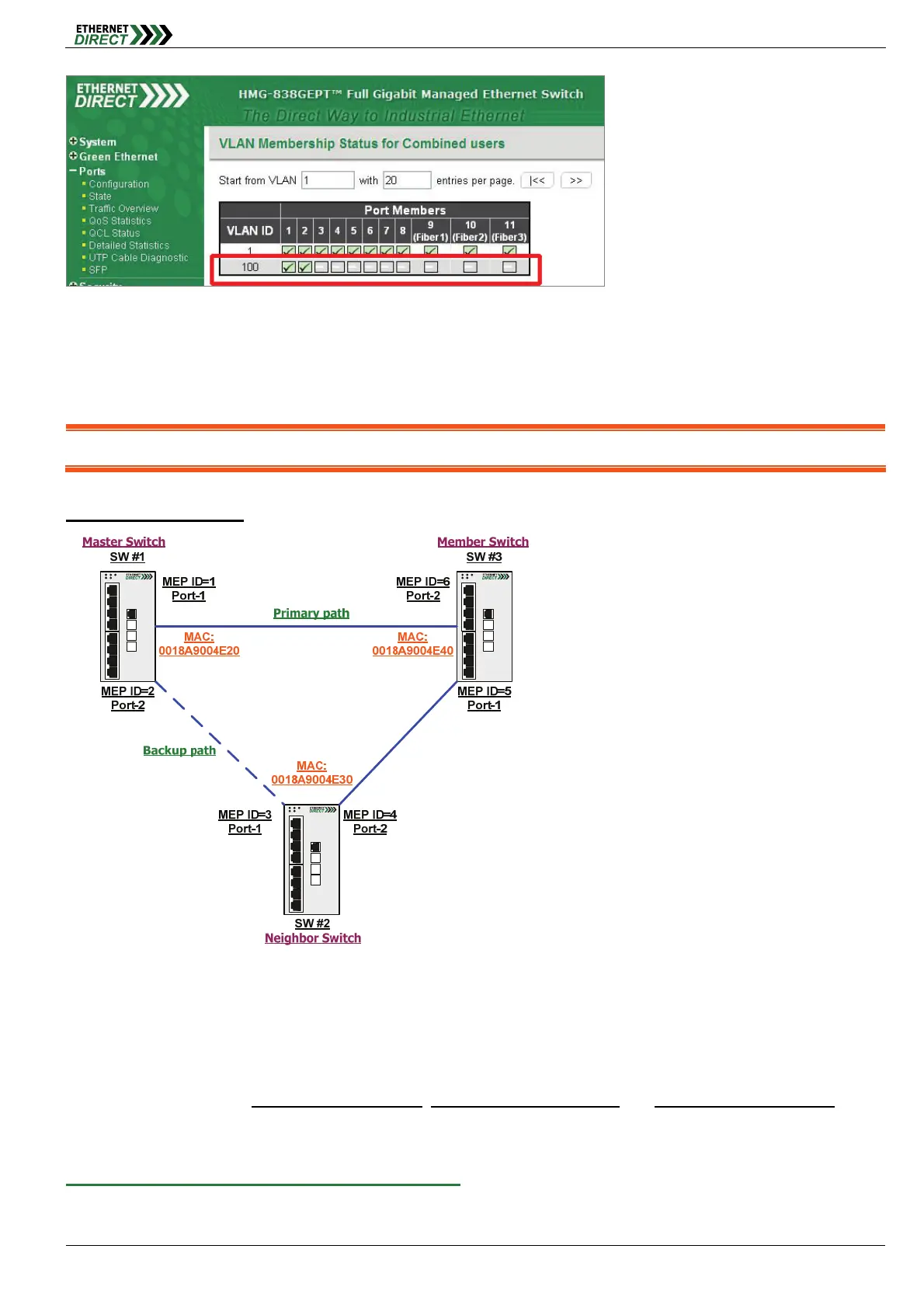

When MEP instances are created, an entry of VLAN membership associated with MEP configuration will be established
automatically in VLAN Membership Table. Hence, you do not manually create this VLAN entry. In this example, VLAN
ID 100 entry with port 1 & 2 as members is created dynamically.
Note: When MEP instances are deleted, VLAN membership associated with MEP configuration will also be deleted automatically.
ERPS Configuration
We need to assign one switch as Master, one as Neighbor, and all others as Member switches. The function of Master
switch is to decide which path is active (unblocked) and which one is backup path (blocked). Neighbor switch is
connecting to Master switch directly by backup path (or standby path).
In this topology, we assign SW#1 as Master switch
, SW#2 as Neighbor switch and SW#3 as Member switch. The
configuration example is below:
ERPS configuration of SW#1 (Master switch)
Create 1 ERPS protection Group
