Ports
HMG-838PT & HMG-838EPT Web Configuration 4-4
Rx/Tx: The number of received and transmitted packets per queue.
4-5 Ports QCL Status
This page shows the QCL status by different QCL users.

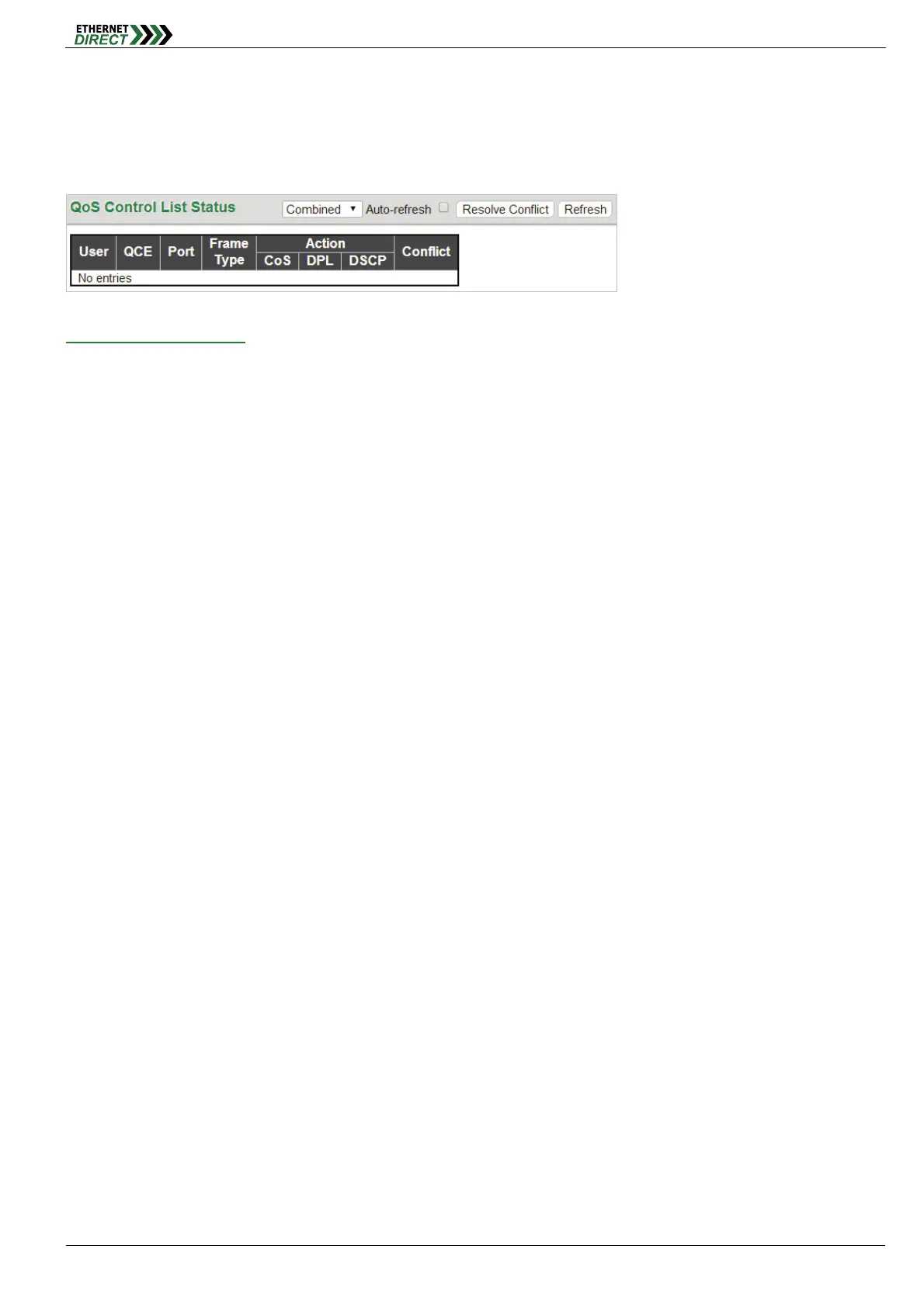

QoS Control List Status:
Each row describes the QCE that is defined. It is a conflict if a specific QCE is not applied to the hardware due to
hardware limitations. The maximum number of QCEs is 256 on each switch.
User: Indicates the QCL user.
QCE#: Indicates the index of QCE.
Frame Type: Indicates the type of frame to look for incoming frames. Possible frame types are:
Any: The QCE will match all frame type.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
IPv4: The QCE will match only IPV4 frames.
IPv6: The QCE will match only IPV6 frames.
Port: Indicates the list of ports configured with the QCE.
Action: Indicates the classification action taken on ingress frame if parameters configured are matched with the
frame's content. There are three action fields: Class, DPL and DSCP.
Class: Classified QoS class; if a frame matches the QCE it will be put in the queue.
DPL: Drop Precedence Level; if a frame matches the QCE then DP level will set to value displayed under
DPL column.
DSCP: If a frame matches the QCE then DSCP will be classified with the value displayed under DSCP
column.
Conflict: Displays Conflict status of QCL entries. As H/W resources are shared by multiple applications, it may
happen that resources required to add a QCE may not be available. In that case it shows conflict status as 'Yes',
otherwise it is always 'No'. Please note that conflict can be resolved by releasing the H/W resources required to
add QCL entry on pressing 'Resolve Conflict' button.
4-6 Ports Detailed Statistics
This page provides detailed traffic statistics for a specific switch port. The displayed counters are the totals for receive
and transmit, the size counters for receive and transmit, and the error counters for receive and transmit. Use the port
select pull down to select which switch port details to display.
