Ethernet Direct Husky HMG-1648P User Manual

G.8032 Configuration Procedure
HMG-838PT & HMG-838EPT Web Configuration A-13
 The MEP ID (5) here is for Port 1 of SW#3
 And Peer MEP ID (4) is the neighbor port 2 of SW#2.
 Always refer back to your design topology as in < Figure 1>.

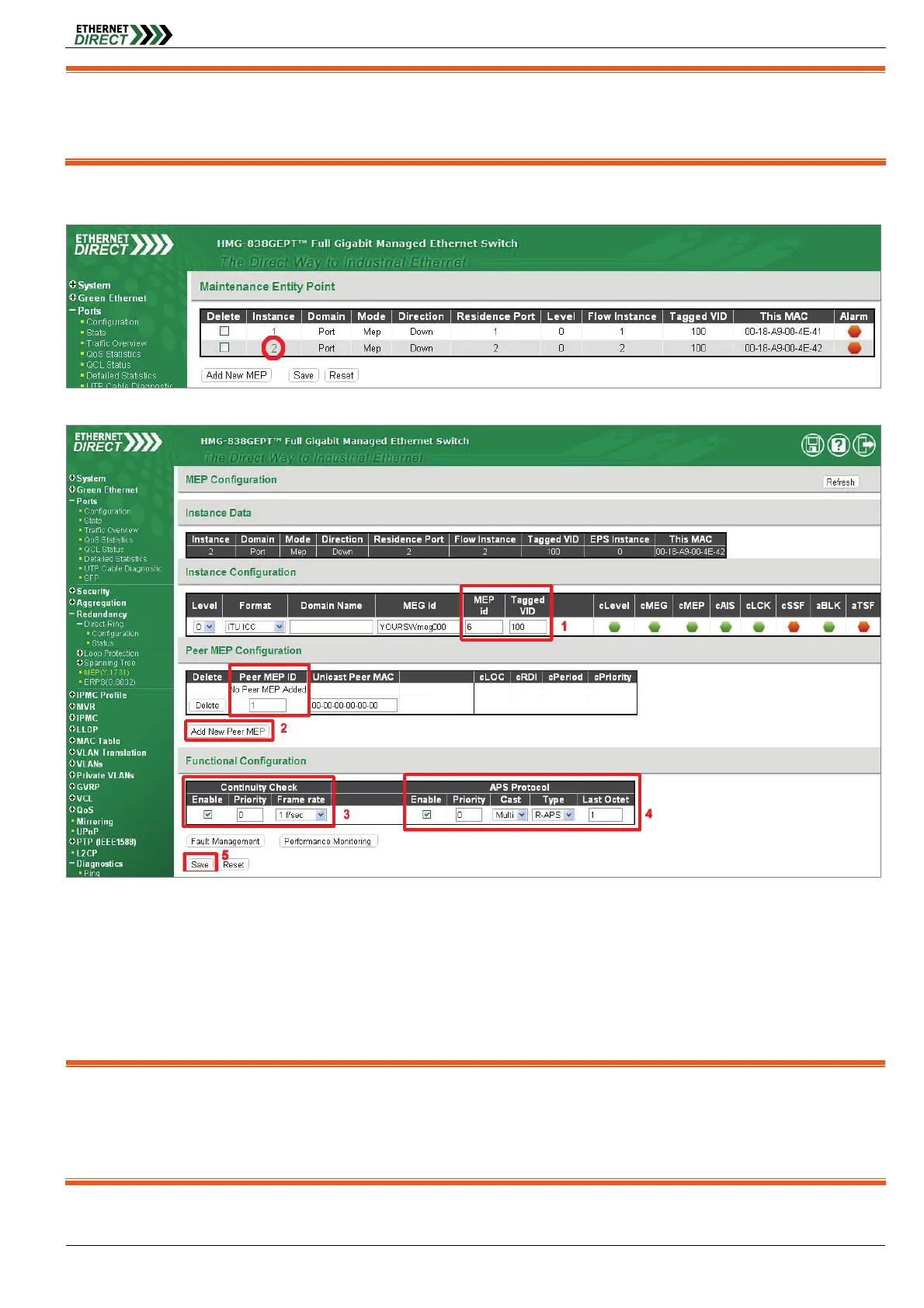

 Click “Instance 2“ to configure further setting of MEP for port 2
1. Set the first MEP ID to "6" and make sure Tagged VID matches our set VID (100 here)
2. Click "Add New Peer MEP" and enter the peer's ID which is "1" in our topology example
3. Enable Continuity Check and leave "Frame rate" at 1 f/sec
4. Enable the APS Protocol, with "Multicasting" and type "R-APS"
5. Click "Save"
Note:
 The MEP ID (6) here is for Port 1 of SW#3
 And Peer MEP ID (1) is the neighbor port 1 of SW#1.
 Always refer back to your design topology as in < Figure 1>
 Check VLAN Membership Table
