5. Installation
5.1. Mechanical fastening
Fasten the modules of the MSC system to a 35-mm DIN rail as follows:
1. Connect together a number of rear 5-pin MSCB plug connectors to suit the number of modules to be installed.
2. Fasten the row of plug connectors assembled in this manner to the DIN rail (first hook on at the top).
3. Fasten modules to the rail and during this process place the contacts on the base of the module over the related plug
connector. Carefully push in module until it noticeably engages.
4. To remove the module, the catch on the rear of the module must be pulled down with the aid a screwdriver and the
module lifted and pull off upward.
1 2a
2b 3 4

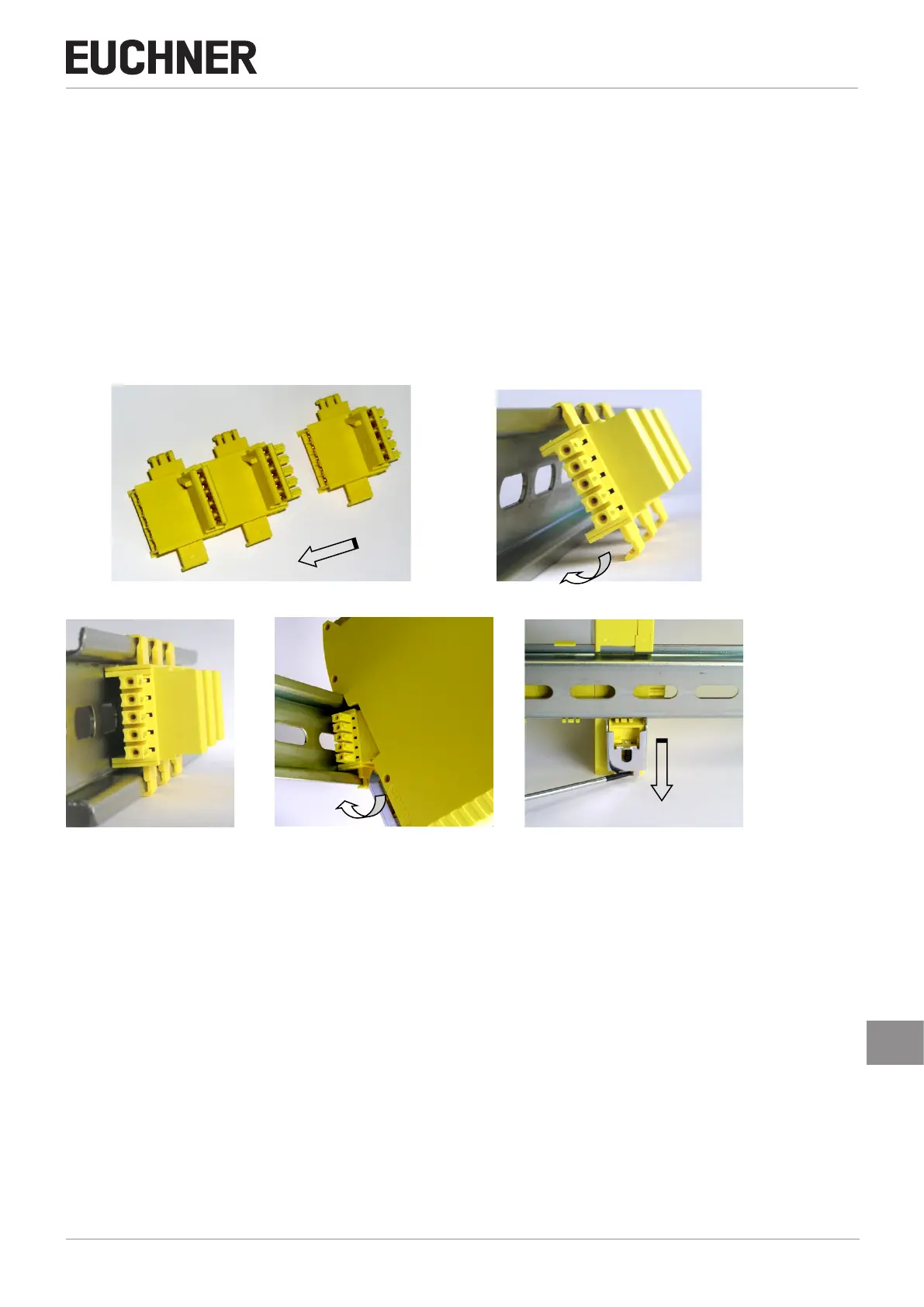

Figure 1: Fastening modules of the MSC system to a 35-mm DIN rail
