8.3.5. Module FI16 (Figure 18)
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL
ORANGE
IN1–16
YELLOW
Switch on – initial CHECK ON ON ON ON ON
Table 28: Indication on starting
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL
ORANGE
IN1–16
YELLOW
NORMAL OPERATION
OFF
If the module is waiting for the first
message from the base unit
FLASHING
If no INPUT or OUTPUT is requested
by the configuration
ON
If INPUT or OUTPUT is requested by
the configuration
OFF
OFF
Indicates the signal table
NODE_SEL0/1
INPUT
state
ON
Erroneous external connec-
tion detected
Only the number for the INPUT with
the erroneous connection ashes
Table 29: Dynamic indication

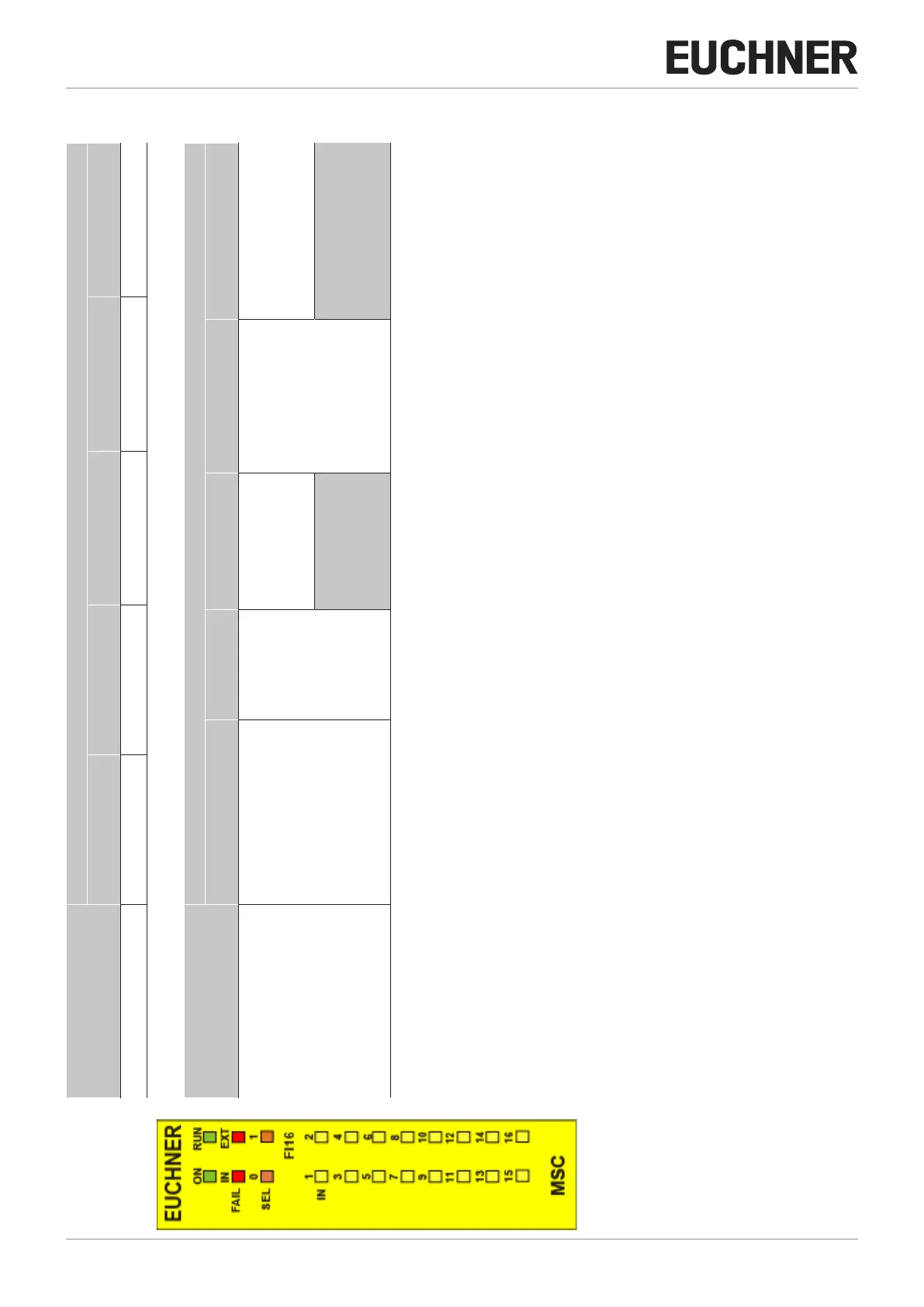

Figure 18: FI16
