9.1.10.7. System layout
The actual layout of the MSC system can be checked using the button (password required: level 1). A table with the
following content appears:
Ì Modules connected;
Ì Firmware version installed in the individual modules;
Ì Node number (physical address) of the individual modules.

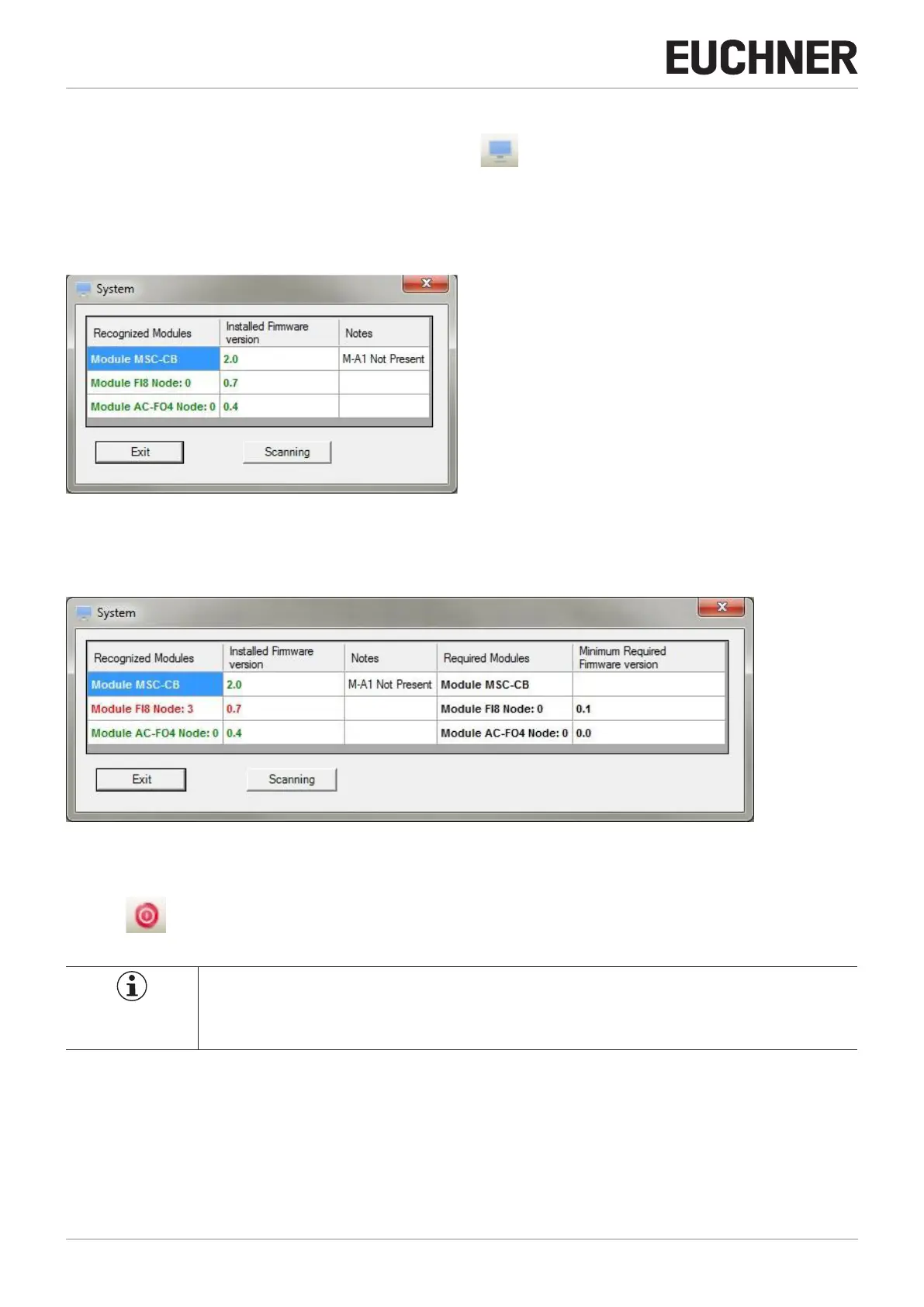

Figure 53: Overview of system layout
If there is an error in one of the modules detected, the following window appears.
In the example below the node number of module FI8 is not correct (indicated by red text).
Figure 54: Erroneous system layout
9.1.10.8. Disconnecting the system
Click the button to disconnect the PC from the MSC-CB. After the disconnection of the system, then system is reset
and restarted with the project transferred.
NOTICE
If the system does not comprise all the modules foreseen in the configuration, this incompatibility is
indicated on the module MSC-CB and the module is not started (see SIGNALS).
