9.4.2.7. Macro monitored restart (MACRO RESTART MONITORED)
(max. number = 16, including other RESTART operators)
Using the MACRO RESTART MONITORED operator, a logic block select-
ed by the user can be combined with the monitored restart function
block ("USER RESTART MONITORED") as per the following truth table:
Clear Restart D Q
1 X X 0
X X 0 0
0 L 1 Retain memory
0 Rising edge 1 Retain memory
0 1 1

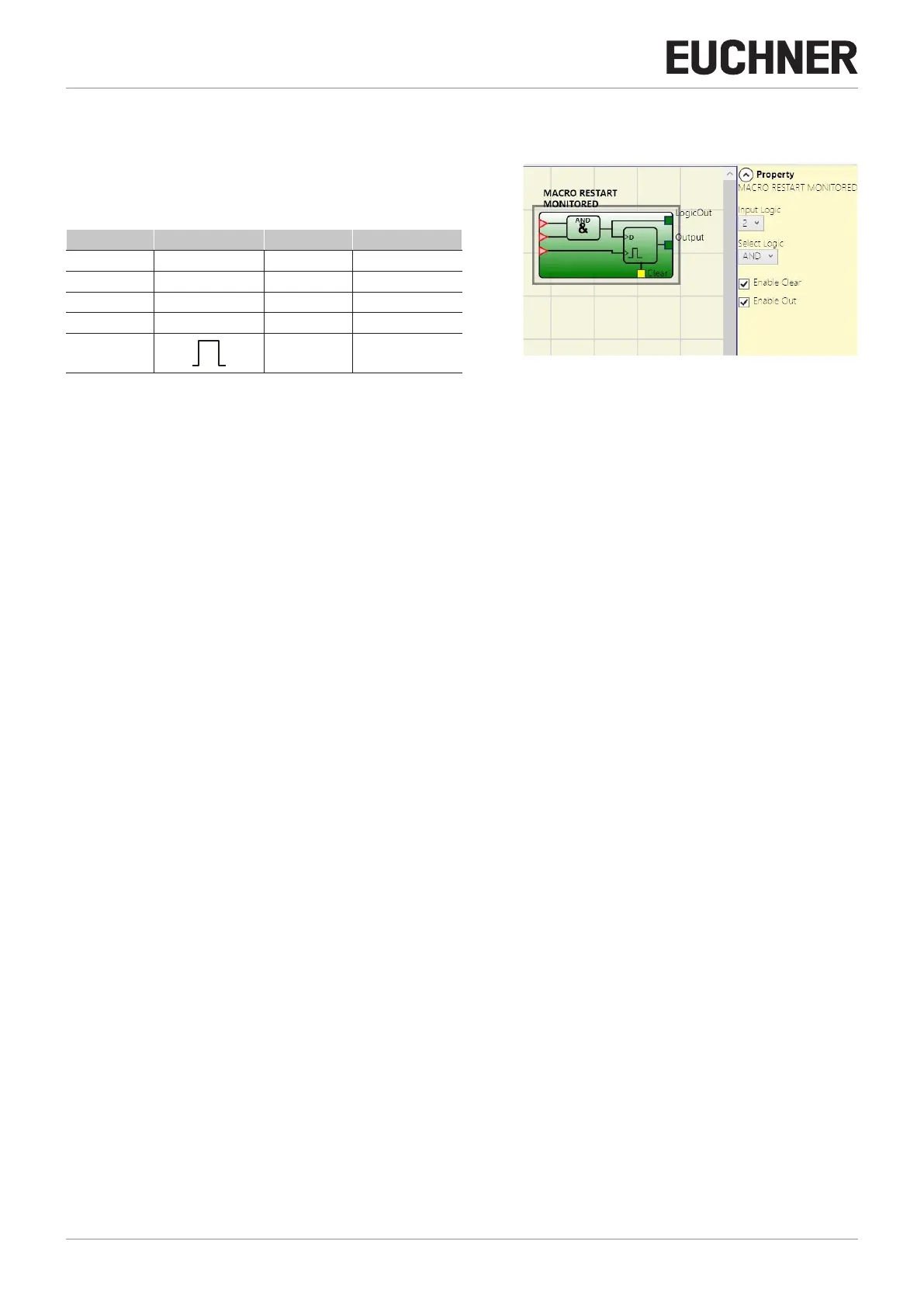

Figure 155: Macro monitored restart
Parameter
Input Logic: Use this option to set the number of logic inputs (2 to 7).
Select Logic: Permits the selection of the type of operator from the following options: AND, NAND, OR, NOR, XOR, XNOR.
Enable Clear: If selected, the memory process can be reset.
Enable Out: Select this option to display intermediate result of the logic.
