9.4.5.2. MONOSTABLE_B
Using this operator an output of "1" (TRUE) is generated by the rising/
falling edge on the input. This state is retained for the time t set.
Parameter
Time: The delay can be set to a value between 10ms and 1098.3s.
Rising Edge: If selected, the output is set to "1" (TRUE) by a rising
edge on the input signal and remains in this state for the time set.

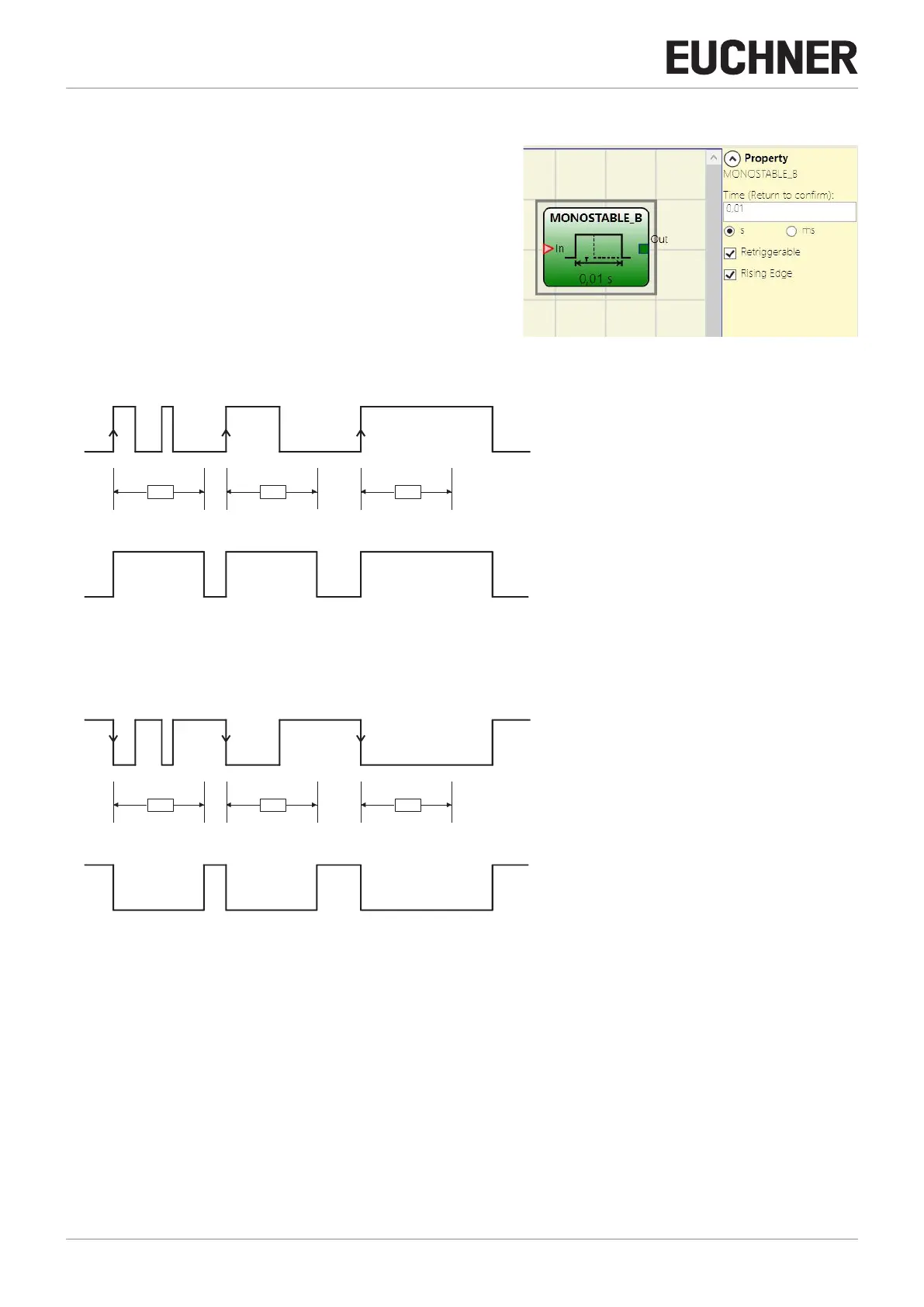

Figure 165: Monostable_B
In
O
ut
T T T
Figure 166: State change on usage with rising edge
If not selected, the logic is reversed, i.e.the output is set to "0" (FALSE) by a falling edge on the input signal and remains
in this state for the time set.
In
O
ut
T T T
Figure 167: State change on usage with falling edge
¨ Unlike the MONOSTABLE operator, the OUT output on the MONOSTABLE_B is not retained beyond the maximum time t
set at "1" (TRUE).
Retriggerable: If selected, the time is reset on each status change on the input.
