9.1.10.9. Monitor (real-time I/O status – text form)
Click the button to activate the monitor (password required: level 1). A pop-up window with the following content
appears (in real time):
Ì Status of the inputs (if the item has two or more input connections to MSC, only the first is indicated in the monitor as
active; see example shown)
Ì Input diagnostics;
Ì OSSD state;
Ì OSSD diagnostics;
Ì Status of the digital outputs;
Ì OUT_TEST diagnostics.

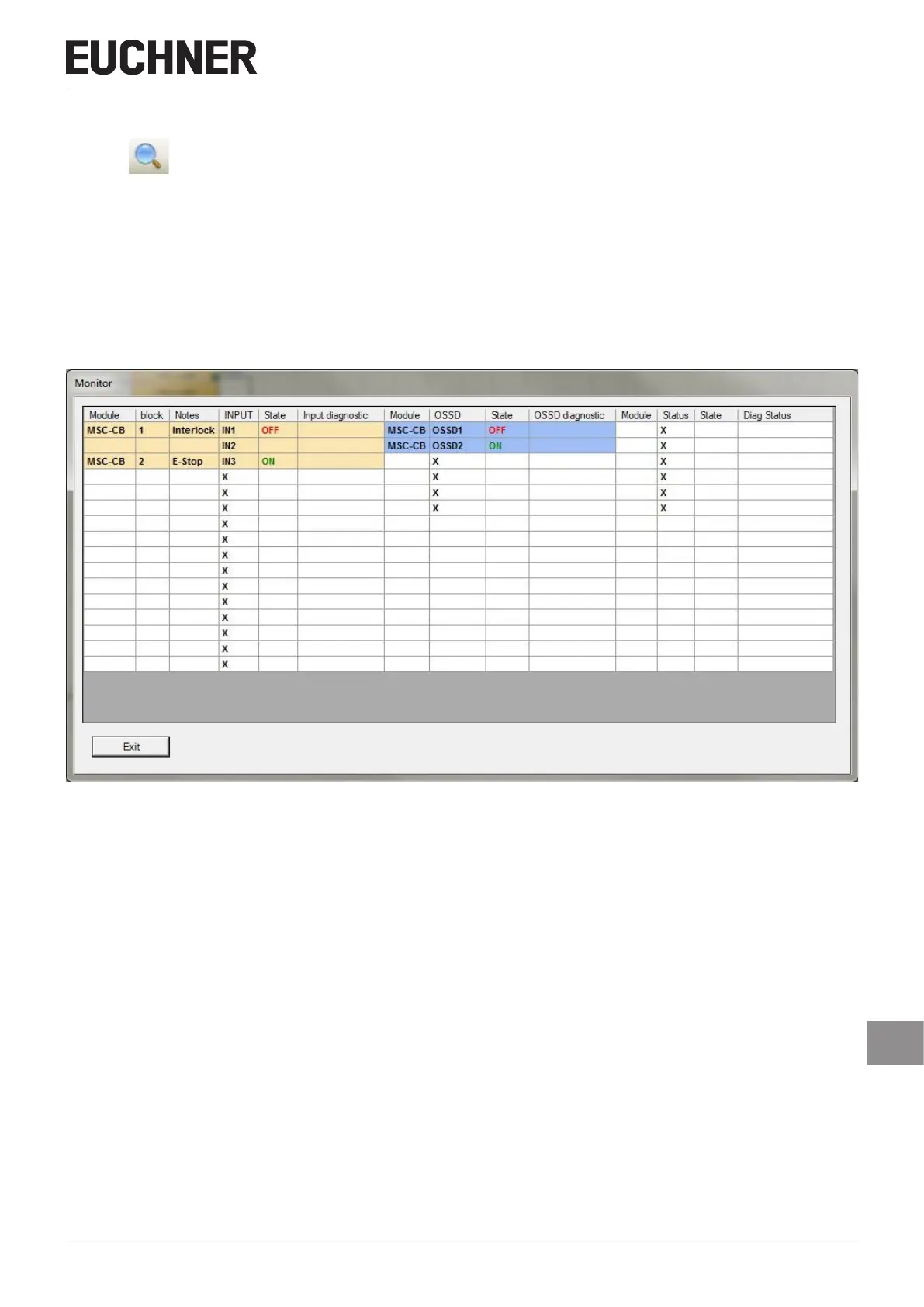

Figure 55: Monitor (text form)
