EUCHNER MSC - 9.6.4. Error log file

169
2121331-04-04/19 (Translation of the original operating instructions)
Operating Instructions
Modular Safety Control System MSC
EN
CODE FAIL SOLUTION
1D ÷ 31D Error on microcontrollers
RESTART SYSTEM. IF THE ERROR PERSISTS, SEND THE MODULE TO
EUCHNER FOR REPAIR.
32D ÷ 63D Fault on main printed circuit board
64D ÷ 95D Error in the communication between the modules
96D ÷ 127D Error on the M-A1 memory card REPLACE M-A1 MEMORY CARD
128D ÷ 138D Error on the module AZ-FO4, relay 1
RESTART SYSTEM. IF THE ERROR PERSISTS, SEND THE MODULE TO
EUCHNER FOR REPAIR.
139D ÷ 148D Error on the module AZ-FO4, relay 2
149D ÷ 158D Error on the module AZ-FO4, relay 3
159D ÷ 168D Error on the module AZ-FO4, relay 4
128D ÷ 191D Error on the encoder interface on the SPM modules
RESTART SYSTEM. IF THE ERROR PERSISTS, SEND THE MODULE TO
EUCHNER FOR REPAIR.
192D ÷ 205D Error OSSD1
206D ÷ 219D Error OSSD2
220D ÷ 233D Error OSSD3
234D ÷ 247D Error OSSD4
Table 79: Overview of error codes, internal malfunction
9.6.4. Error log le
The error log file can be displayed using the button on the default toolbar
(password required: level 1)
A table is displayed with the last 5 errors that have occurred since the scheme was last sent to the MSC or the last time
the error log was deleted (button: )

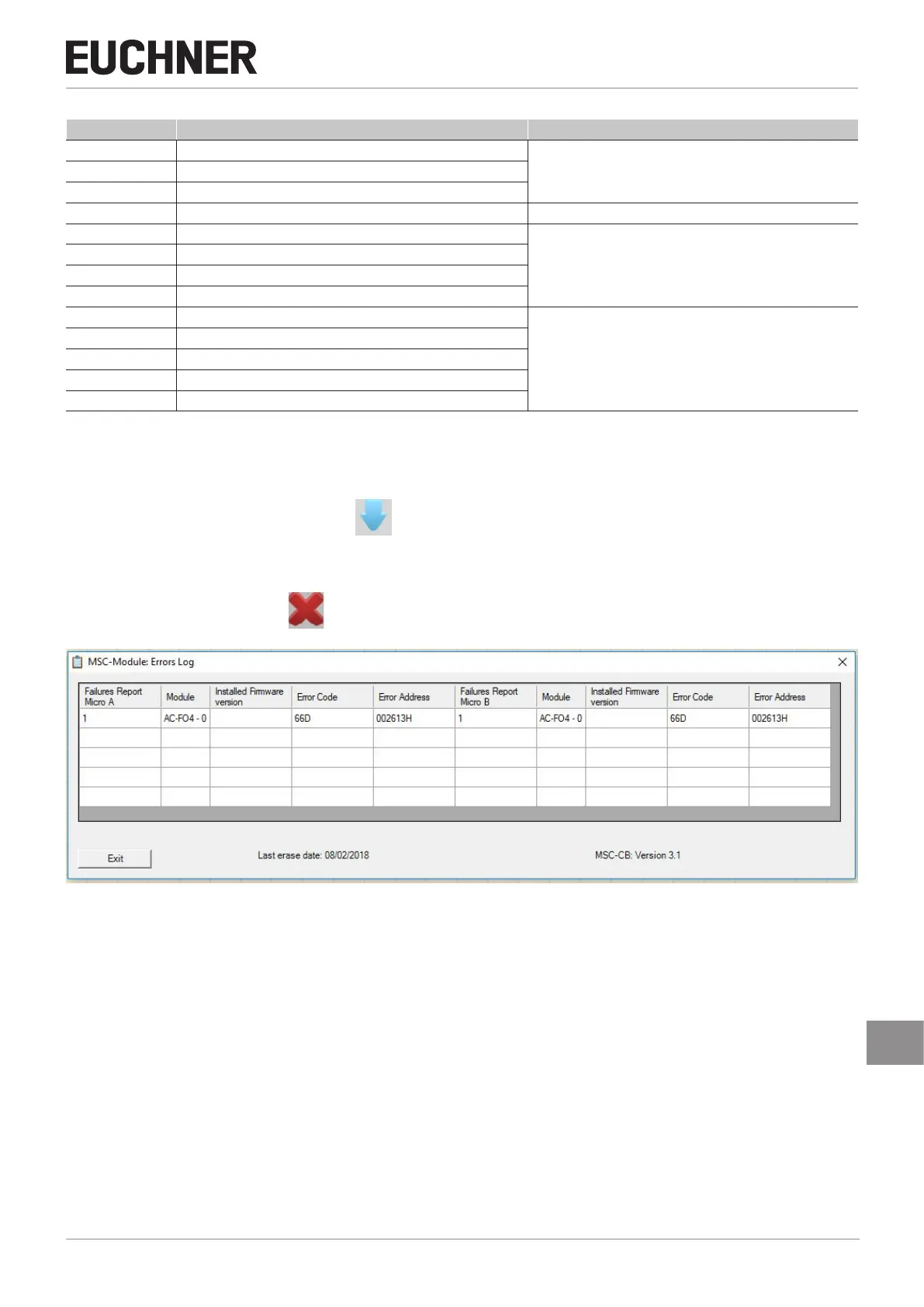

Figure 207: Error log file
