9.5.2. Special applications
9.5.2.1. Output delay with manual operating mode
If two OSSD outputs are required and one output is to be delayed (in the MANUAL operating mode), the following diagram
is to be used:

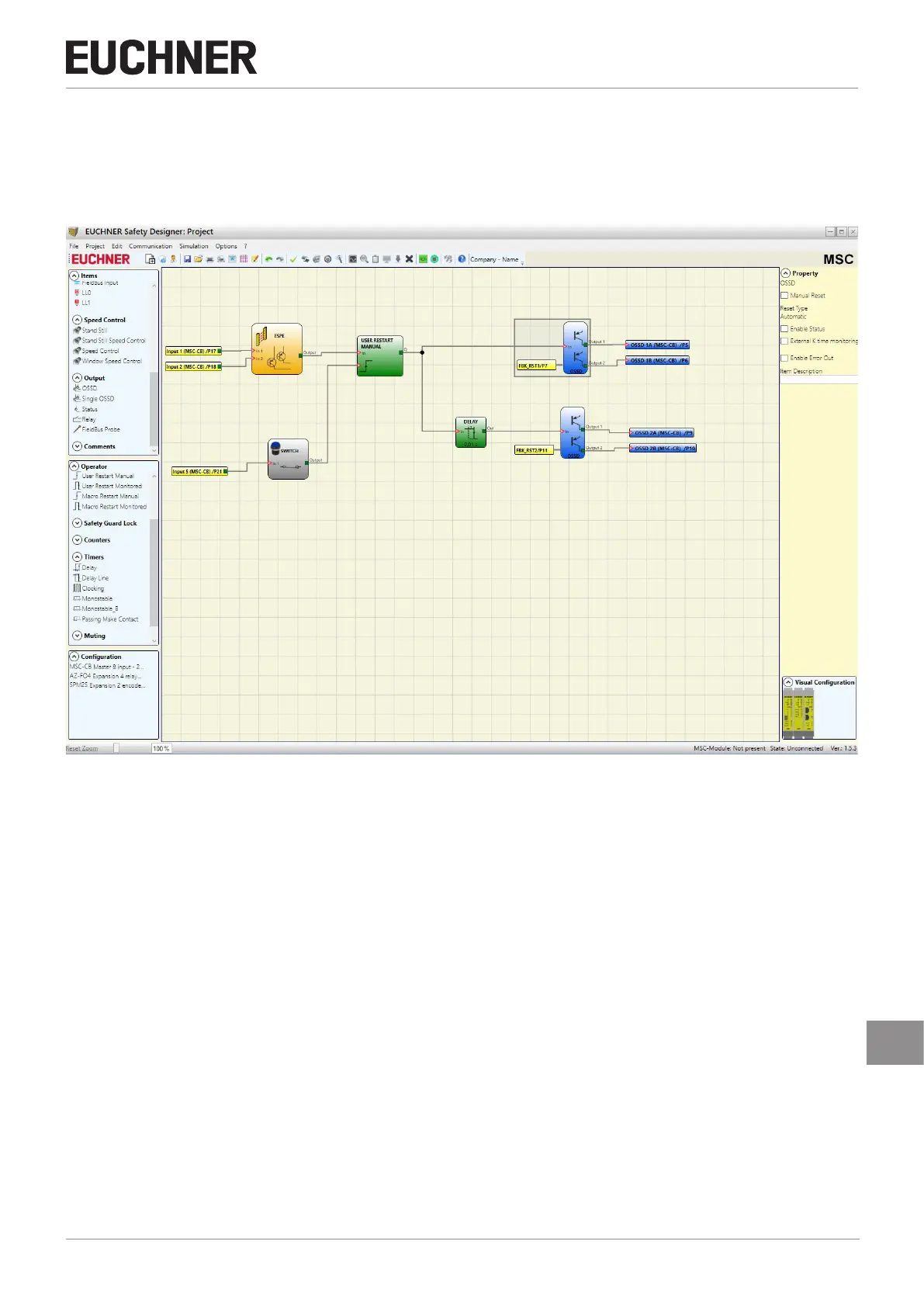

Figure 195: Two outputs, of these one output delayed (MANUAL operating mode)
¨ If the Delay operator is used, the application must be as follows:
- The two outputs must be programmed via the USER RESTART MANUAL function with automatic reset.
