8.3.10. Module O8 (Figure 23)
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL0/1
ORANGE
STATUS1/8
YELLOW
Switch on – initial CHECK ON ON ON ON ON
Table 38: Indication on starting
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL0/1
ORANGE
STATUS1/8
YELLOW
NORMAL OPERATION
OFF
If the module is waiting for the first
message from the base unit
FLASHING
If no INPUT or OUTPUT is requested
by the configuration
ON
If INPUT or OUTPUT is requested by
the configuration
OFF
Operation OK
OFF
Operation OK
Indicates the signal table
NODE_SEL0/1
OUTPUT
state
Table 39: Dynamic indication

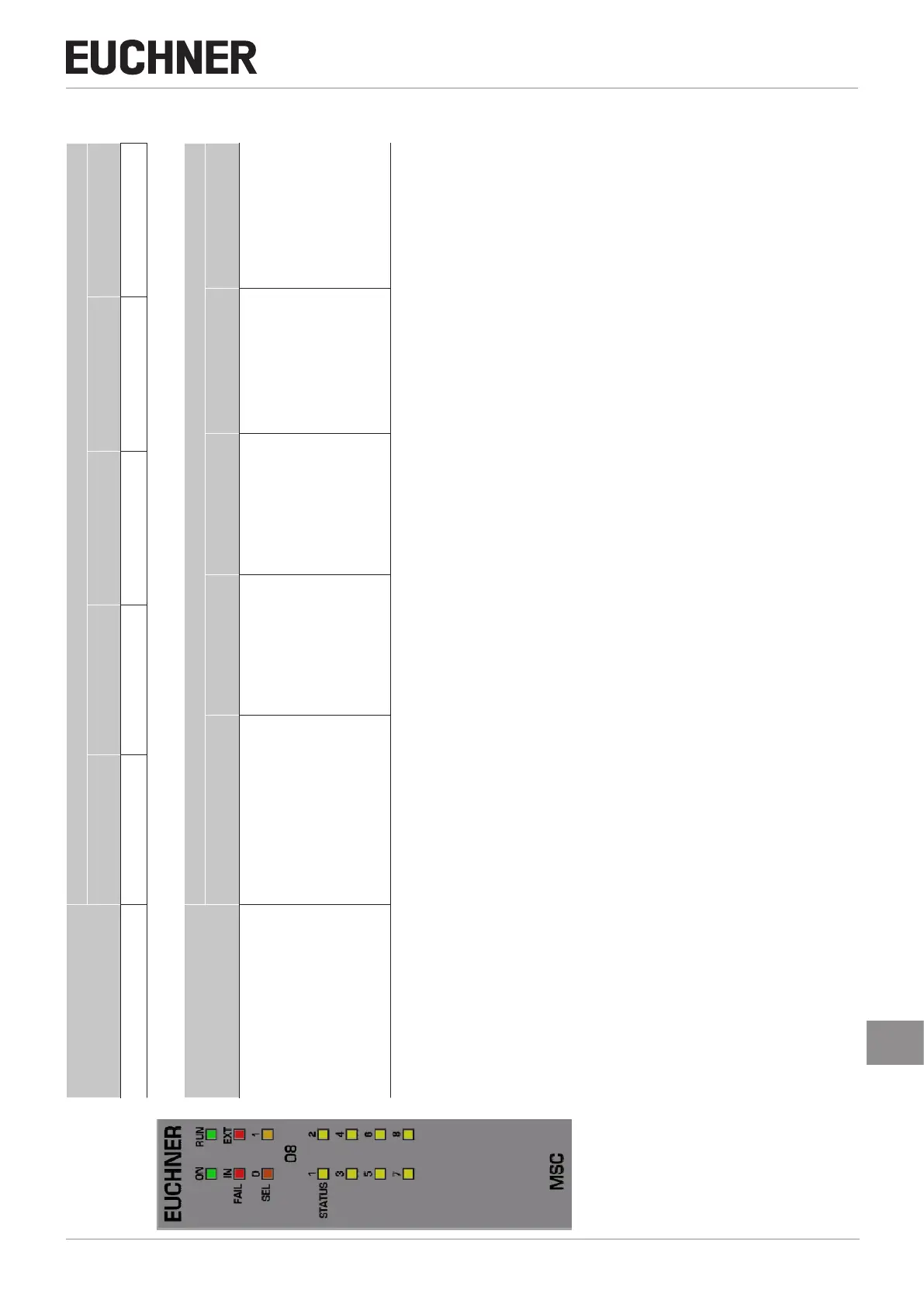

Figure 23: O8
