8.3.12. Modules SPM0, SPM1, SPM2 (Figure 25)
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL
ORANGE
ENC*
YELLOW
PROX
YELLOW
SH
YELLOW
Switch on – initial CHECK ON ON ON ON Red ON ON
Table 42: Indication on starting
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL
ORANGE
ENC*
YELLOW
PROX
YELLOW
SH
YELLOW
NORMAL OPERATION
OFF
If the module is waiting for the first
message from the base unit
FLASHING
If no INPUT or OUTPUT is requested
by the configuration
ON
If INPUT or OUTPUT is requested by
the configuration
OFF
Operation
OK
OFF
Operation
OK
Indicates the
signal table
NODE_SEL0/1
ON
Encoder connected
and operational
ON
Proximity switch
connected and
operational
OFF
Axis in normal speed
range
ON
Axis at standstill
FLASHING
Axis at elevated
speed
Table 43: Dynamic indication * IF SPM0 MODULE NOT FITTED

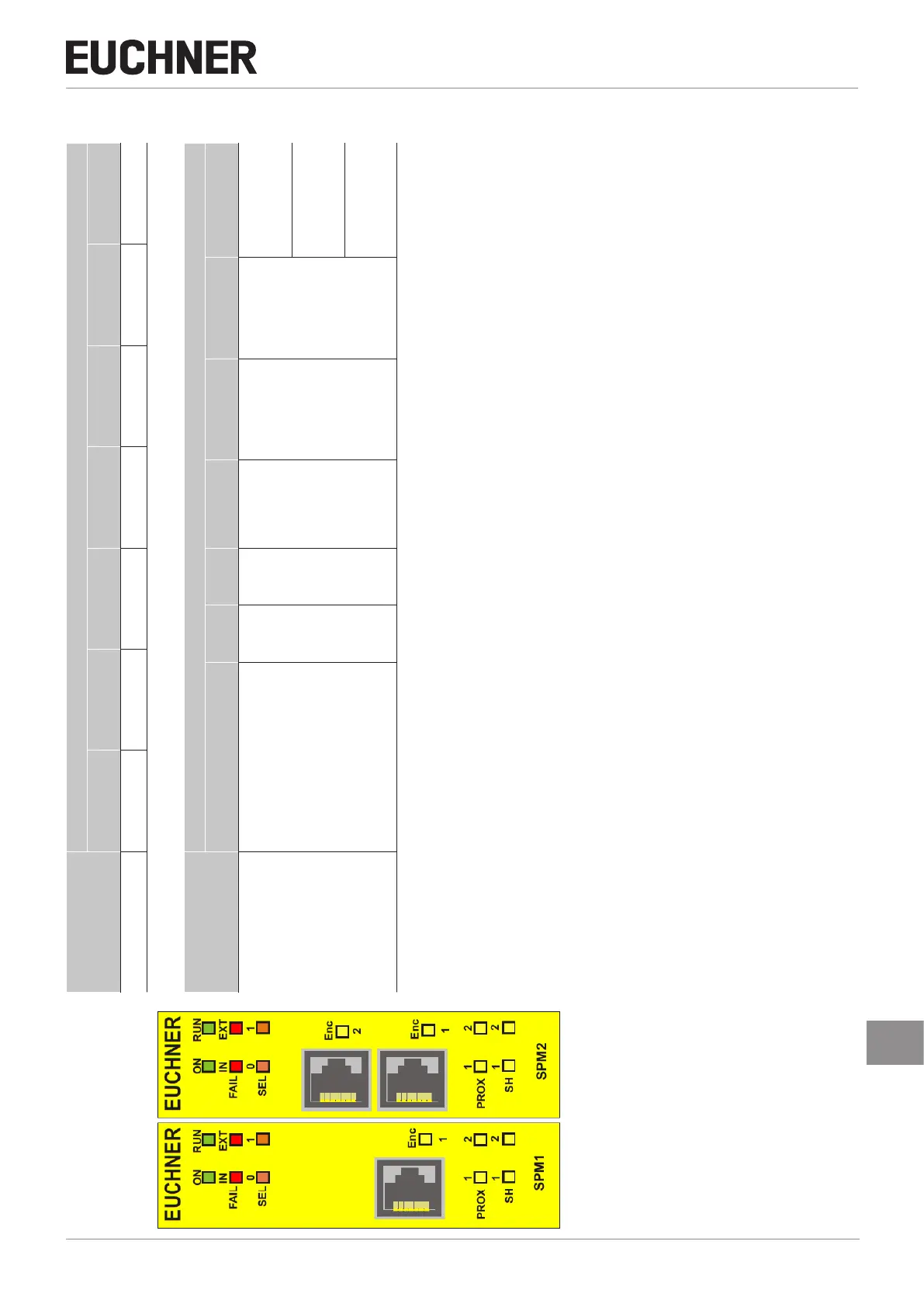

Figure 25: SPM1, SPM2
