8.3.8. Module AZ-FO4 (Figure 21)
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL0/1
ORANGE
RELAY1/4
RED/GREEN
CLEAR1/4
YELLOW
Switch on – initial CHECK ON ON ON ON Red ON
Table 34: Indication on starting
MEANING
LED
RUN
GREEN
IN FAIL
RED
EXT FAIL
RED
SEL0/1
ORANGE
RELAY1/4
RED/GREEN
CLEAR1/4
YELLOW
NORMAL OPERATION
OFF
If the module is waiting for the first
message from the base unit
FLASHING
If no INPUT or OUTPUT is requested
by the configuration
ON
If INPUT or OUTPUT is requested by
the configuration
OFF
Operation OK
OFF
Operation OK
Indicates the signal
table
NODE_SEL0/1
RED
If contact open
ON
Waiting for RESTART
GREEN
If contact closed
Flashing
Error feedback loop
external switchgear
Table 35: Dynamic indication

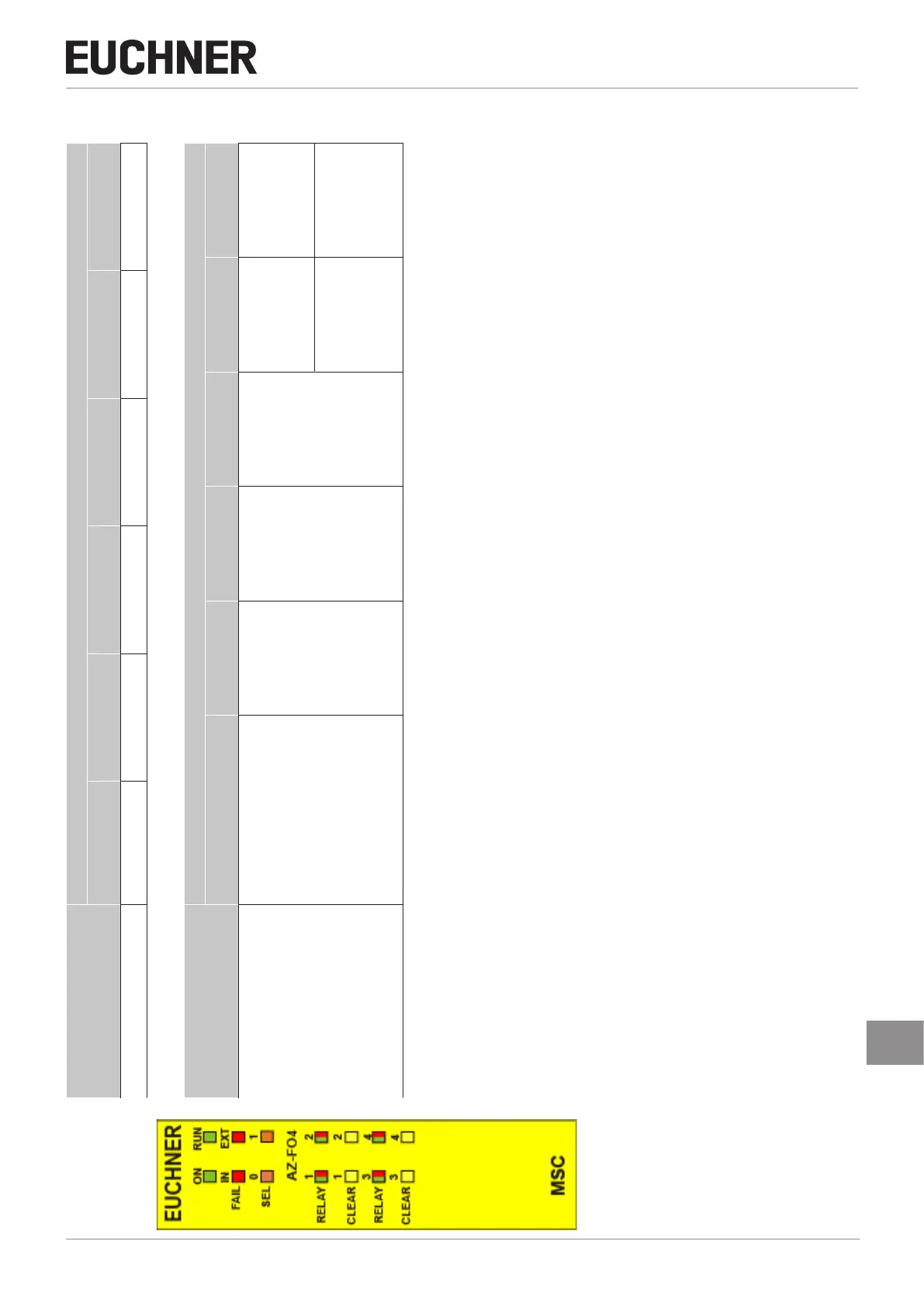

Figure 21: AZ-FO4
