33
2121331-04-04/19 (Translation of the original operating instructions)
Operating Instructions
Modular Safety Control System MSC
EN
7.2.5. OSSD (AH-FO4SO8)
The module AH-FO4SO8 has 4 high-current safety outputs (max. 2 A per channel).
Two settings are available for the outputs (configuration via the software EUCHNER Safety Designer):
Ì 4 single-channel outputs (1 safety output per channel with corresponding RESTART_FBK input).
Ì 2 dual-channel outputs (2 safety outputs per channel with corresponding RESTART_FBK input).
MSC-CE-AH-FO4SO8
MSC-CE-AH-FO4SO8

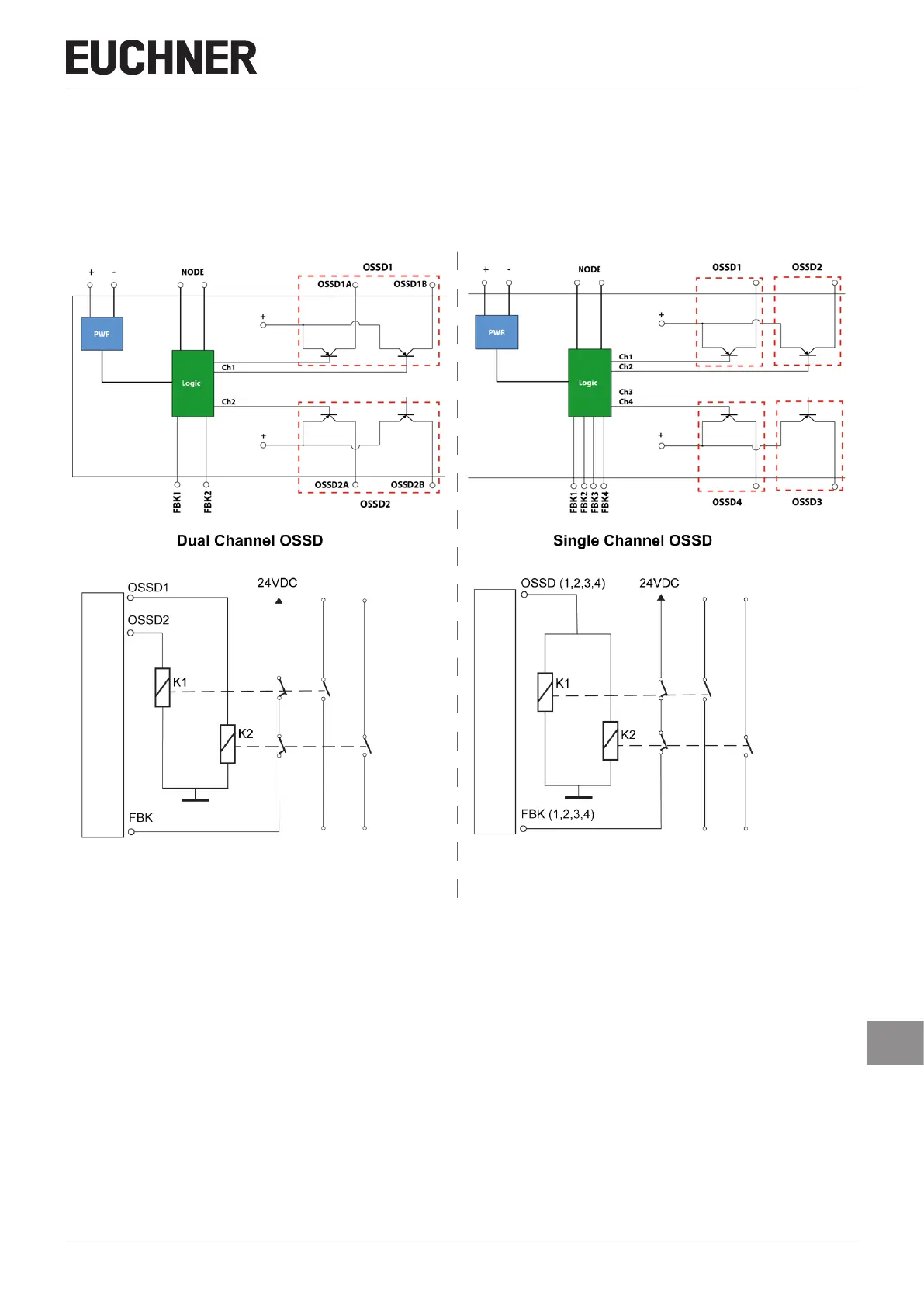

Figure 11: Configuration of 2-channel double outputs
(safety category 4)
Figure 12: Configuration of 4-channel single outputs
(safety category 4)
¨ On the use of the module AH-FO4SO8 with output current > 500 mA, the module must be separated from the neighboring
modules by fitting an MSC plug connector in between.
