CP-2116E
Remote Control Panel
Revision 1.2 Page - 5
2.3. POWER CONNECTIONS
The CP-2116E comes with an auto-ranging DC voltage adapter that automatically senses the input
voltage. Power should be applied by connecting a 3-wire grounding type power supply cord to the
power entry module on the DC voltage adapter. The power cord should be minimum 18 AWG wire
size; type SVT marked VW-1, maximum 2.5 m in length. The DC cable of the voltage adapter should
be connected to the DC power jack on the rear of the panel.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF
THE GROUND PIN OF THE MAINS PLUG MUST BE MAINTAINED.
2.4. MOUNTING
The CP-2116E is equipped with rack mounting angles and fits into a standard 19 inch by 3.5 inch by
1.2 inch (483 mm x 89 mm x 32mm) rack space.
Figure 2-3 to Figure 2-6 illustrates the various mounting options. Please refer to section 3.1.3 for
information on physical specifications.

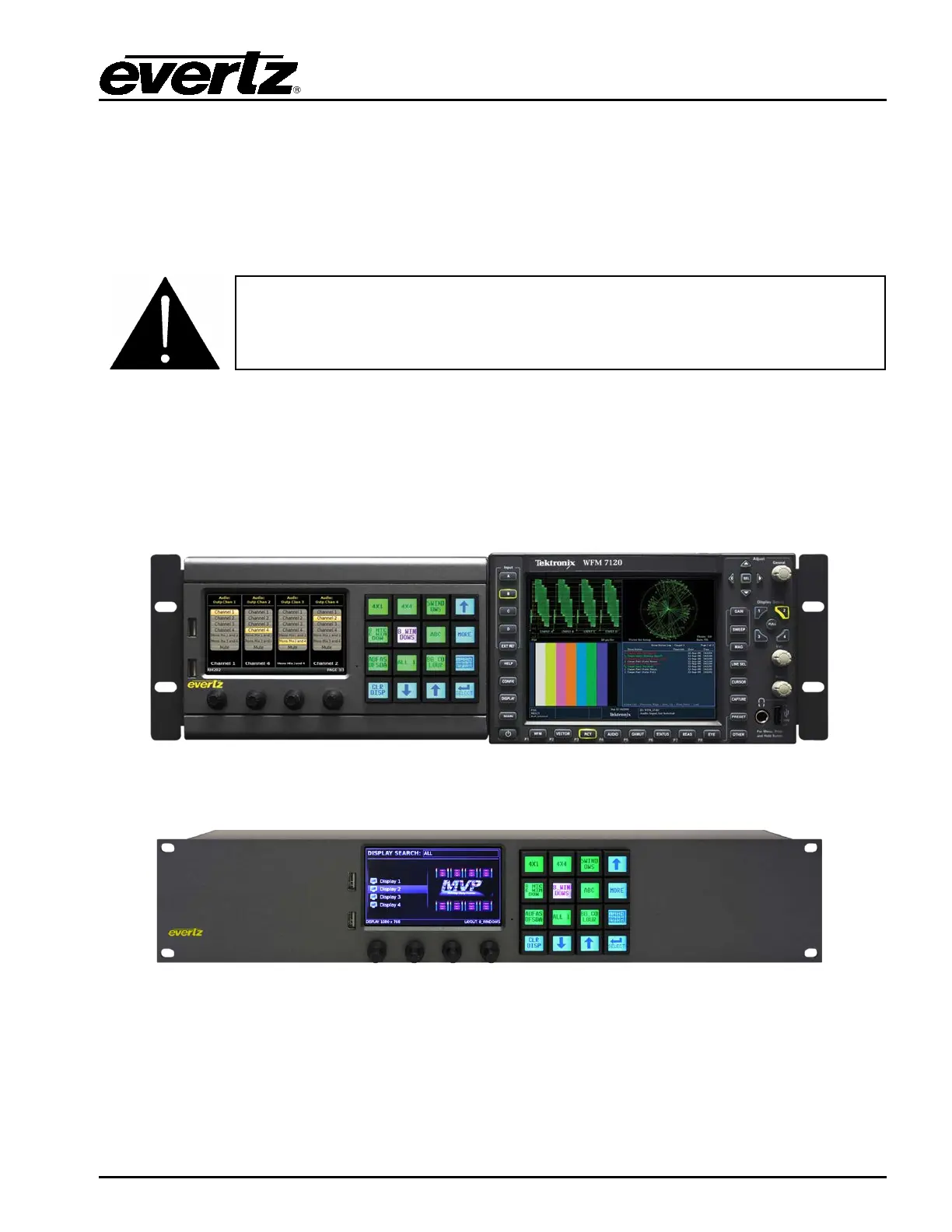

Figure 2-3: One CP-2116E-H mounted in a 3RU CPH-TEK
with Owner Furnished Tektronix WFM
Figure 2-4: CP-2116E
