CP-2116E
Remote Control Panel
Page - 62 Revision 1.2
When in One Destination View the TOGGLE TAKE button can be used to toggle with each press
between the Current Source and the Previous Source on the selected destination.

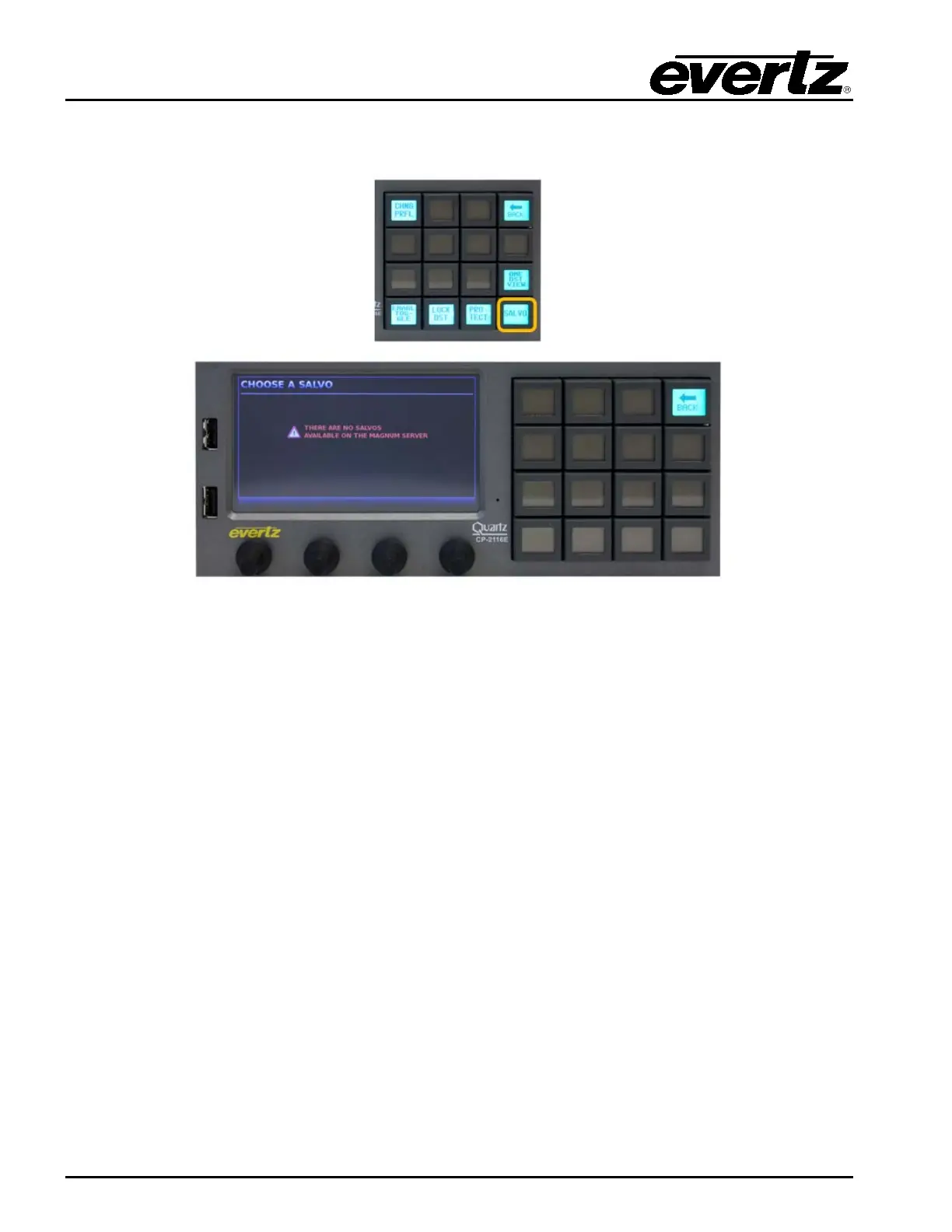

Figure 7-21: Selecting the “SALVO” Button
The SALVO button when pressed will display a list of Salvos in the screen that are available to the
current profile active on the panel. The left shaft encoder under the display is used to navigate through
the Salvo list by turning the shaft encoder. When the required Salvo is highlighted, the RECAL SALVO
button is fire the selected salvo. The Back button can be used to return to the Quad Destination view.
