5.6. UPGRADE MENU

The Upgrade menu enables the user to upgrade the firmware on the CP-2116E panel. Select the

Upgrade menu and the Install Firmware page will open as illustrated in Figure 5-34.

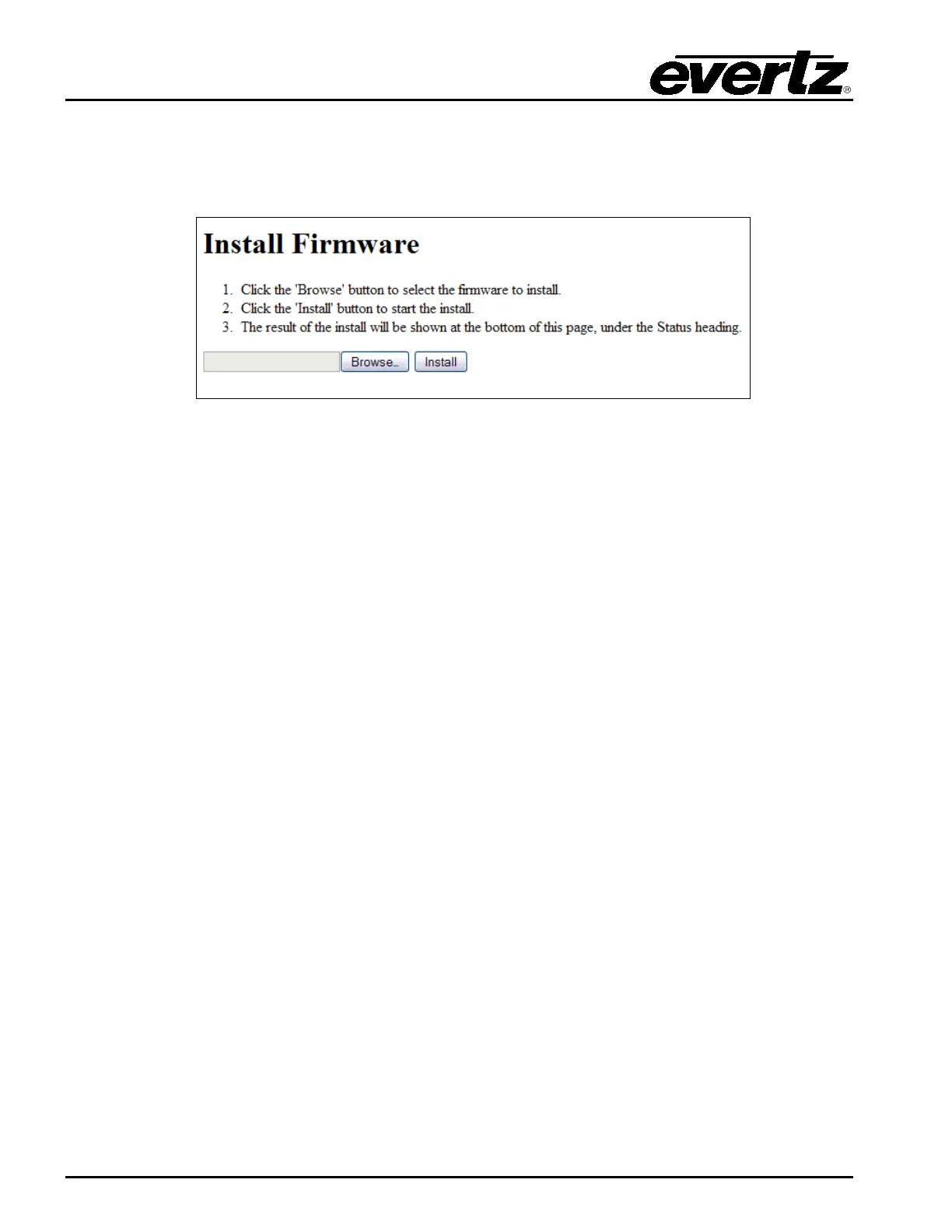

Figure 5-34: Install Firmware Page

For instructions on how to upgrade the panel’s firmware, please refer to section 5.1.3.
