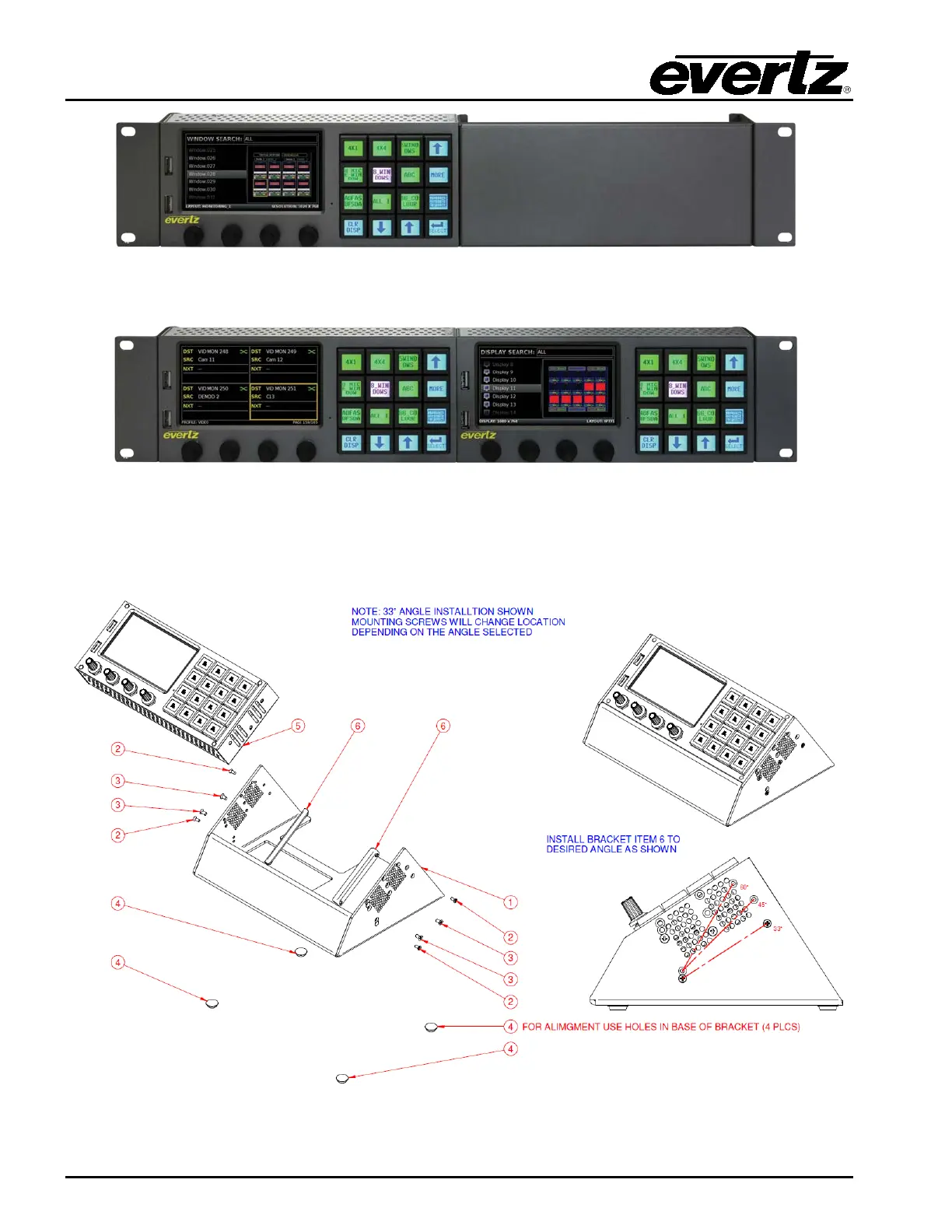

Figure 2-5: One CP-2116E-H Mounted in a 2RU CPH-RMB

with Supplied Blank Plate

Figure 2-6: Two CP-2116E-H Mounted in a 2RU CPH-RMB

Cooling is achieved by passive air flow across and through the panel chassis.

The following diagrams illustrate mounting installation for the CP-2116E-DBK & the CP-2116E-TEK.

Figure 2-7: Mounting Installation for the CP-2116-DBK
