CP-2116E
Remote Control Panel
Revision 1.2 Page - 49
7. NAVIGATING THE CONTROL PANEL

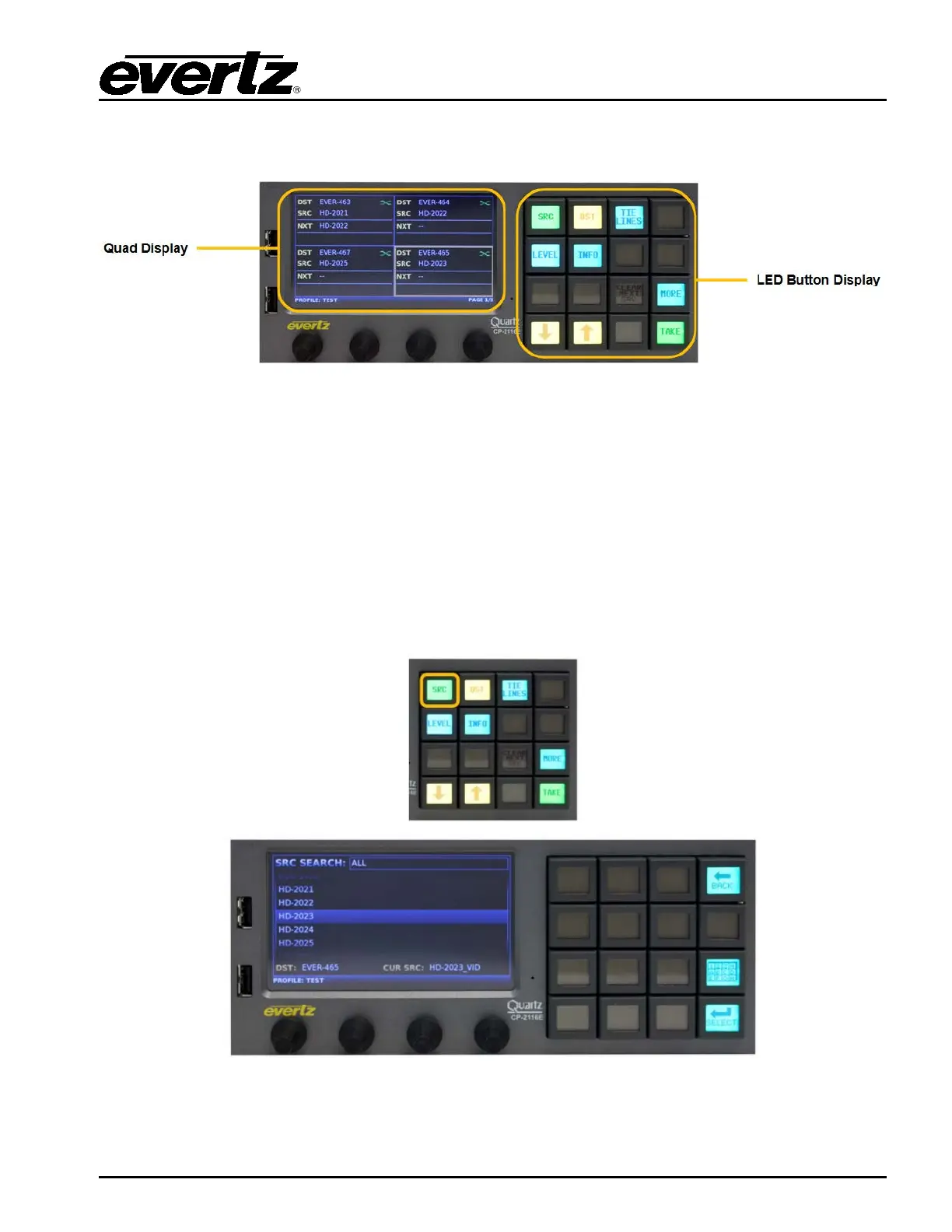

Figure 7-1: Front Panel Display
The default router control view of the CP-2116E features a single touch LCD screen with a maximum
of four destinations displaying the following information: Destination Name, Current Source Name,
Next Source Name, Profile Selected Name, Destination Page, and State of the Destination
(Lock/Protected/etc). The user can select a destination by touching the required destination within the
quadrant. The shaft encoders can also be used to select a destination within a quadrant. The default
button navigation pad will contain Src, Dst, Up, Dwn, Clear Next Src, Level, More, and Take buttons.
Depending on the panel configuration the default button assignments may contain more or less then
shown in Figure 7-1.
7.1. SOURCE (SRC) BUTTON
Figure 7-2: SRC Layout
