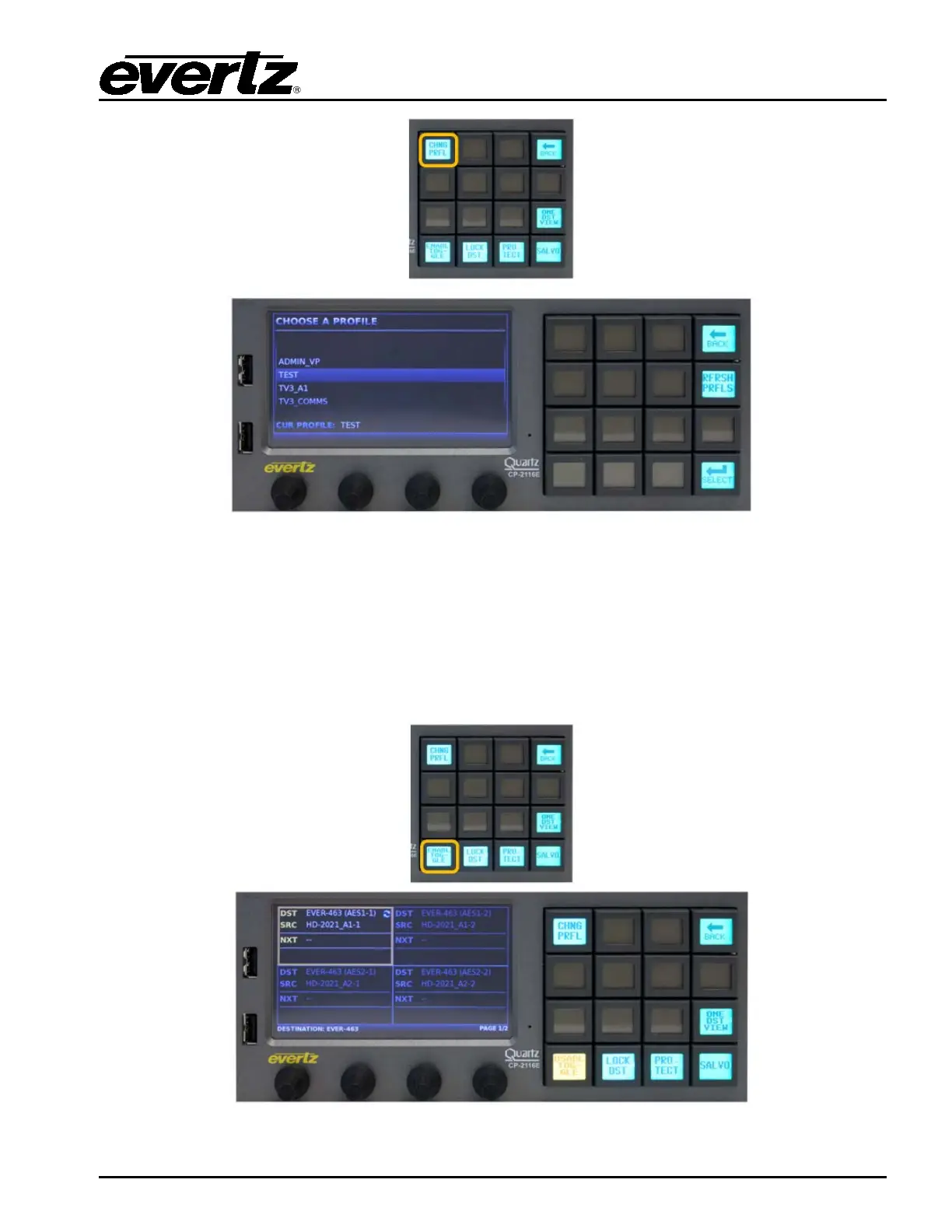

Figure 7-13: Selecting the “CHNG PRFL” Button
The CHG PRFL button when pressed will display a list of Profiles that have been assigned to the panel
from MAGNUM. A Profile contains sources, destinations, labels, and categories. These can be
different on a per profile basis. The screen will display the list of available profiles for selection. The left
shaft encoder can be used to scroll through the list. When the required Profile is highlighted, the
Select button is used to confirm the choice and return the user to Quad Destination view with this
profile loaded. The RFRSH PRFLS will re-query MAGNUM for any updates in the available profiles to
the panel. The Back button can be used to cancel the profile selection and return to the Quad
Destination view
Figure 7-14: Selecting the “ENABLE TOGGLE” Button
