CP-2116E
Remote Control Panel
Page - 50 Revision 1.2
The SRC button when pushed will display a list of available sources in the display screen. The left shaft
is used to navigate through the list by turning the shaft encoder. When the required source is
highlighted, the Select button is used to confirm the choice and return the user to Quad Destination
view. The selected source will appear in the NXT source box in the destination that was previously
selected; when the Take button is pressed the source will be routed. The Back button can be used to
cancel the source search and return to the Quad Destination view.

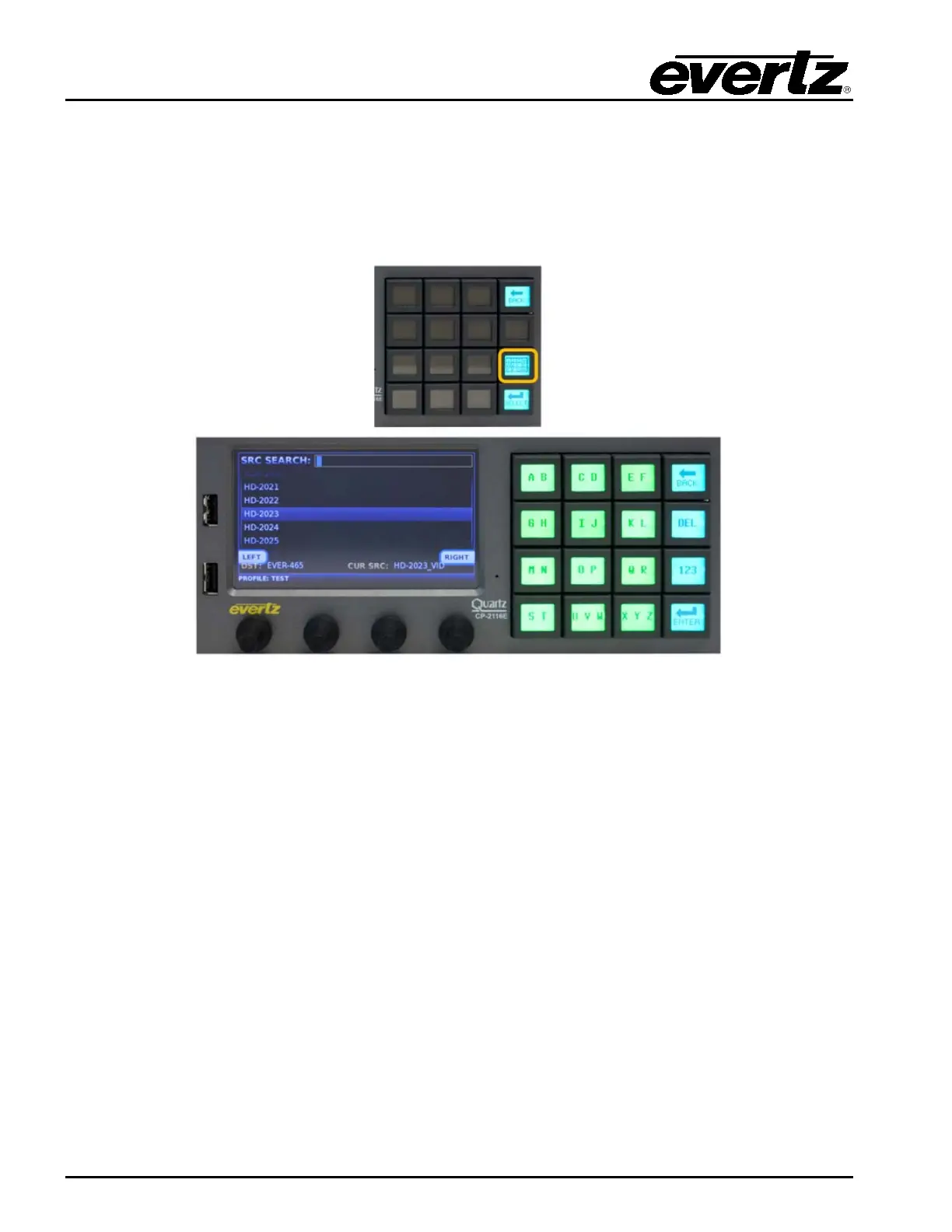

Figure 7-3: SRC Keypad Display
The Alpha-Numeric button when pressed will allow the user to type the name of the required source in
the screen. As the user types the CP-2116E will automatically filter the source list to display any source
that matches the characters typed. If a character is typed incorrectly the DEL button can be used to
delete the characters. The Left and Right buttons on the screen can be used to navigate the SRC
Search box. When the required source is highlighted, the Enter button is used to confirm the choice
and return the user to Quad Destination view. The selected source will appear in the NXT source box in
the destination that was previously selected; when the Take button is pressed the source will be
routed. The Back button can be used to cancel the source search and return to the Quad Destination
view.
