SERVICE & INSTALLATION MANUAL - Symbol
6.5.5 Configuration Sub Tab

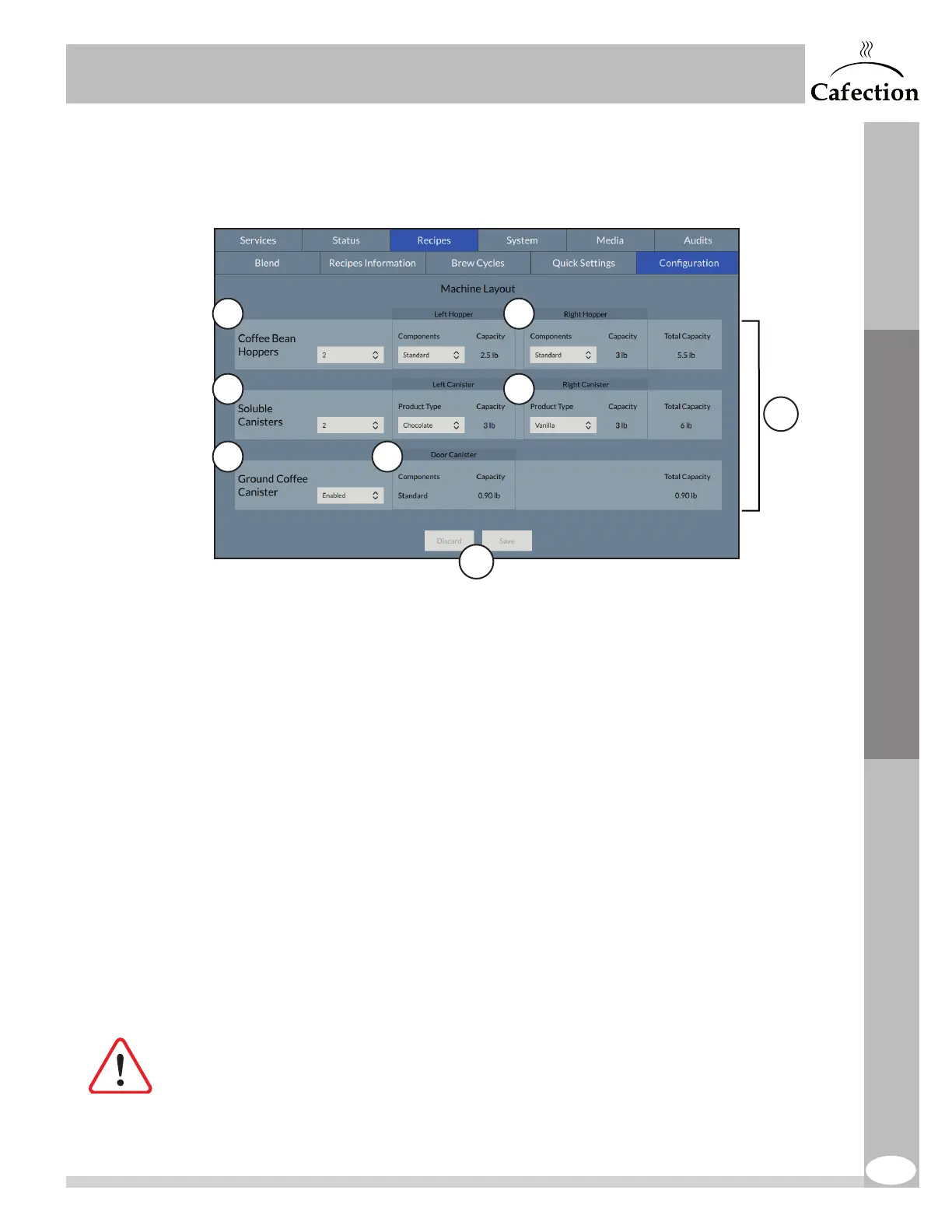

The Configuration sub tab allows the user to edit the layout of the machine for each
product type (coffee beans, soluble ingredients and ground coffee).
1. This dropdown menu is used to set the quantity of coffee bean hoppers (1 or 2).
2. This dropdown menu is used to set the quantity of soluble ingredients canisters
(1 or 2).
3. This dropdown menu is used to enable or disable the ground coffee canister.
4. This section is used to set the components for each coffee hopper, in accordance with
the machine layout.
Use the dropdown menu to select the component installed on the machine for each
coffee hopper (left and/or right).
The Capacity section will automatically adjust to show how many pounds of
coffee beans the selected component can contain.
5. This section is used to set the product type for each of the soluble ingredients
canisters, in accordance with the machine layout.
Use the dropdown menu to select the soluble ingredient used to fill each canister
(left and/or right).
The Capacity section will automatically adjust to show how many pounds of
product the soluble ingredient canister can contain.
6. This section indicates the capacity, in pounds, of the ground coffee canister (if this
canister is enabled in the machine layout).
7. This section indicates the total capacity, in pounds, of each product type available in
the machine layout (coffee beans, soluble ingredients and ground coffee).
8. Use the Save button to confirm the changes made to the machine layout.
Use the Discard button to erase all changes.
The layout set in Service mode must reflect the real-life configuration of the
machine in order for the brewer and its user interface to work properly.
