SERVICE & INSTALLATION MANUAL - Symbol

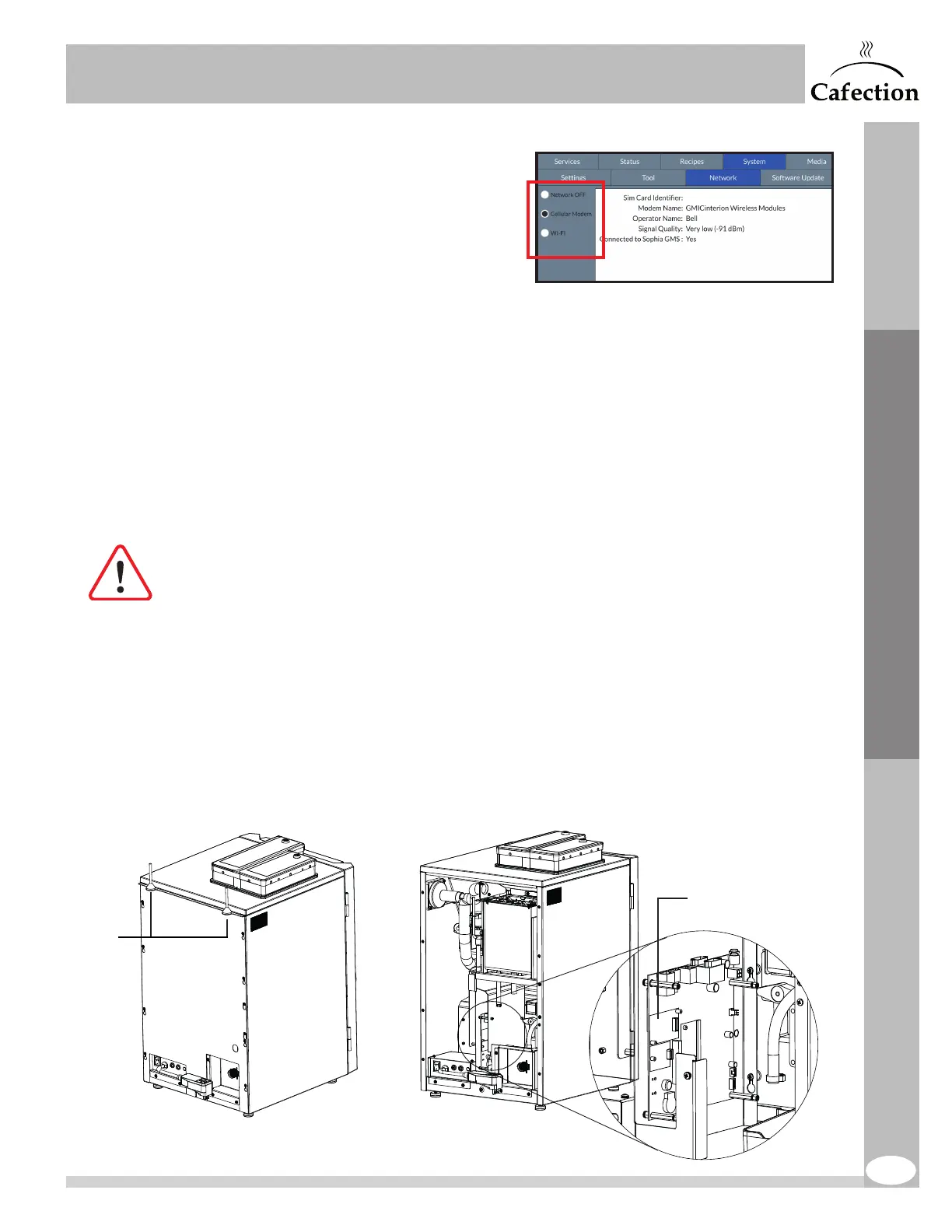

6.6.3 Network Sub Tab
This section is used to connect the
brewer to the internet.
Use the checkboxes on the left to select
the desired connection.
Cellular Modem (Optional for base-line model)
The Symbol is equipped with a cellular modem. The modem is a small PCB located on the
mother board at the back of the brewer. A SIM card is in the modem.
If no signal is detected, move the antennas to get the best signal possible (see section
Ensure Optimal Cellular Connection below).
If the problem persists, contact Technical Support at 800- 561-6162, ext.310, or by email
at service.na@evocagroup.com.
Never remove parts from the mother board.
If there is a problem with the modem, contact the Technical Support team for the
procedure at 800- 561-6162, ext.310.
Ensure Optimal Cellular Connection
• Properly position the antennas and check the signal at the location
(use an app such as OpenSignal).
• Make sure the serial number has correctly been entered in the unit software (System
tab, Admin sub tab).
• Correctly activate the modem through the unit software (System tab, Network sub tab)
4
3
2
D
C
B
A
A
B
C
D
1
2
345
678
8
7
6
5
1
3
2
D
C
B
A
A
B
C
D
1
2
345
678
8
7
6
5
4
1
Modem Position
2
D
C
B
A
A
B
C
D
1
2
345
678
8
7
6
5
4
31
Antenna
Service Mode
