www.cafection.com 800-561-6162
76
DS2212NSA Rev. 1 2023-04
SERVICE & INSTALLATION MANUAL - Symbol

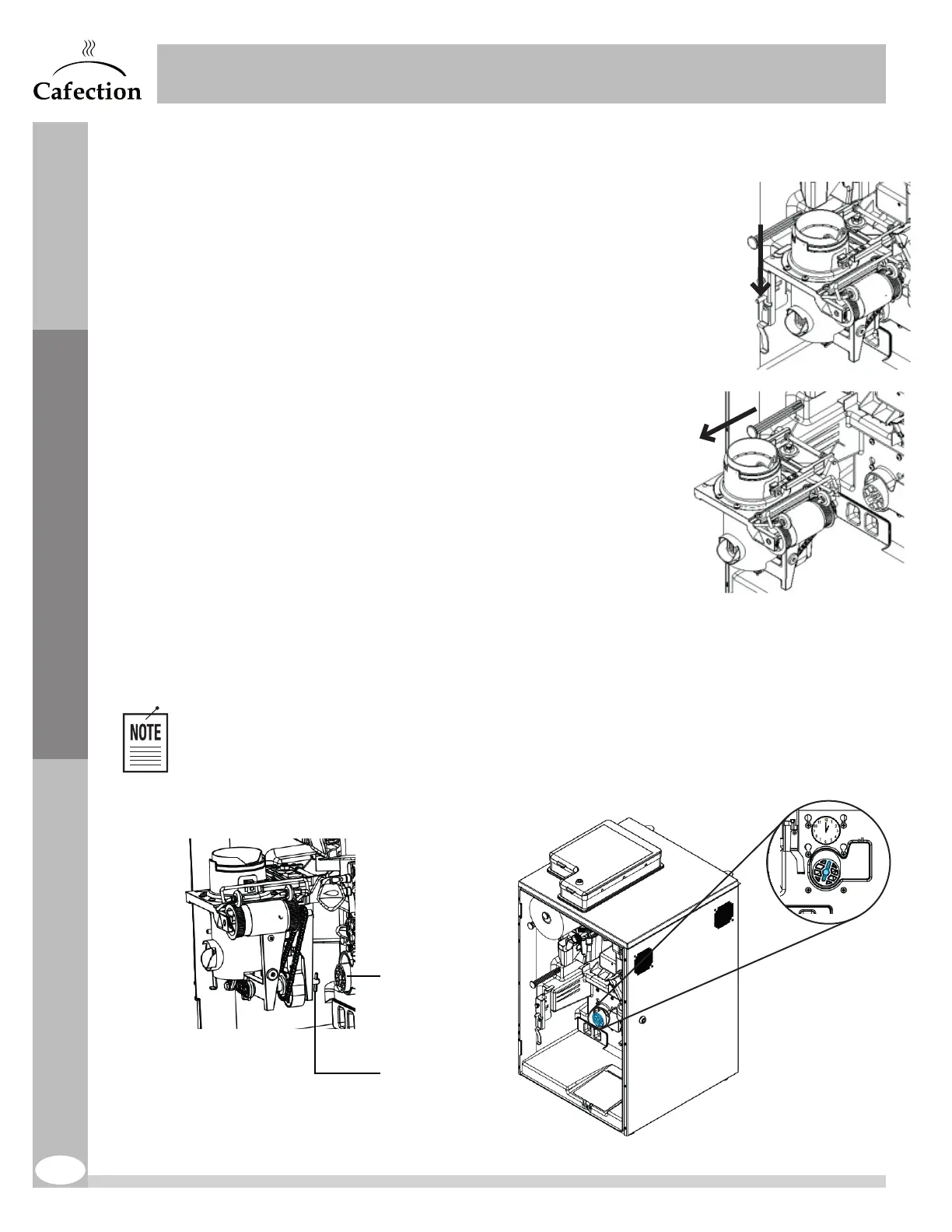

9.3 Brew Group Assembly
Removing the brew group
1. Open the brewer’s door.
2. Access Service mode (see section6).
3. Press on the "Filter Paper Install" button (see section6.2).
4. Wait for the brew chamber to open. Cut the filter paper with
scissors on both sides of the brew chamber.
5. Remove the coffee spout.
6. Support the brew group assembly by holding the aluminum frame
on the right side of the brew group assembly.
7. With the left hand, push the locking pin down, then right.
8. Pull the brew group assembly straight outward.
Installing the brew group
1. Make sure that the dog drive pin in the back of the brew group is at 1 o’clock.
2. Align the left edge of the brew group on the left bracket support.
3. Push the brew group back completely into the dog drive motor.
4. Push the brew group’s retaining pin to the left, then up.
To clean the brew group, see section 7.8.6.
Dog Drive
Pin
Parts Maintenance
