EVOCA Opera Touch - Programming Menus Access

26 02-2023 6095 00
1
3
8
2
7
5
4
6

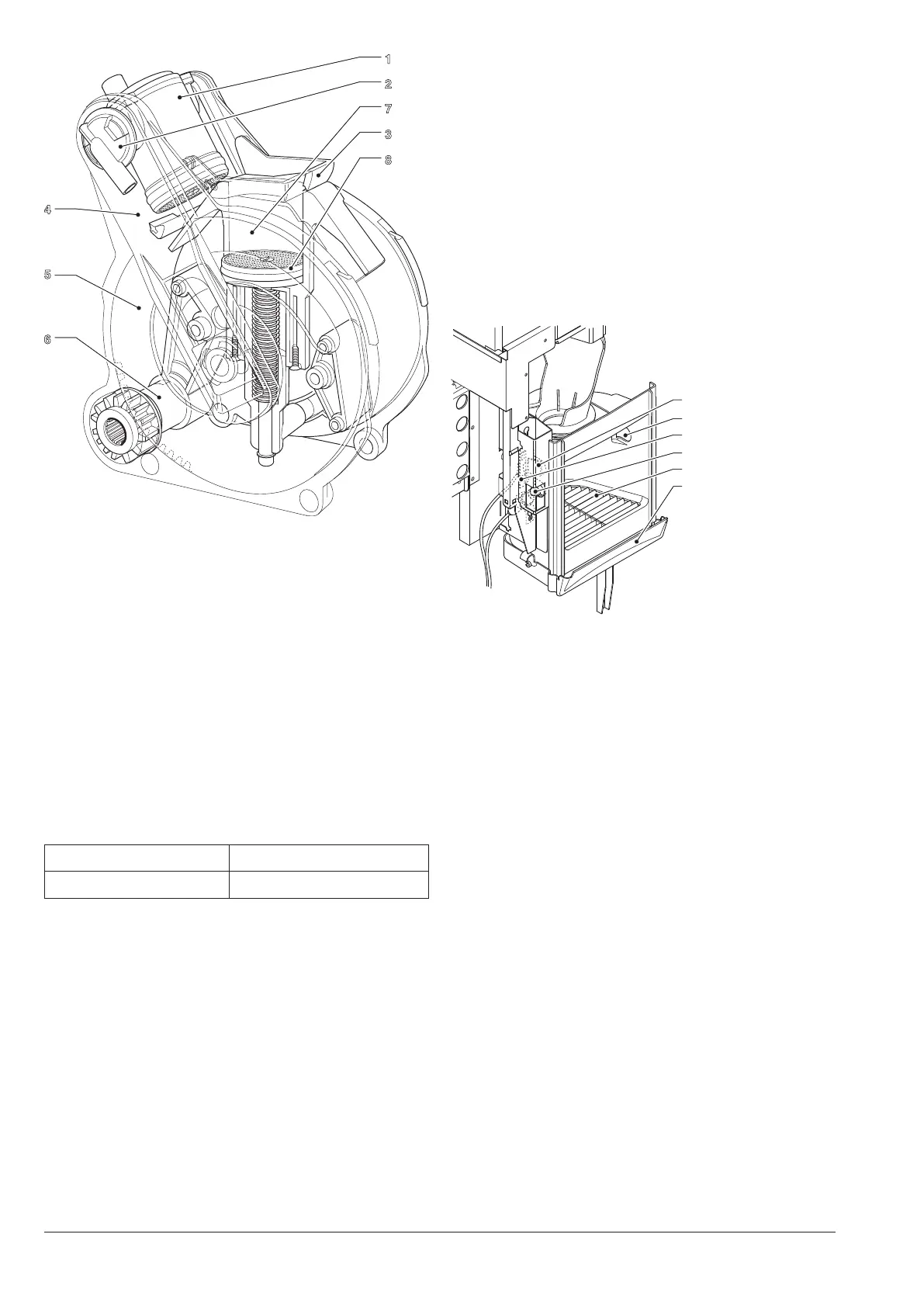

Fig. 22
1. Upper piston
2. Coffee outlet nozzle
3. Scraper
4. Connecting rods
5. Cranks
6. Pinion
7. Brewing chamber
8. Lower piston
brEwiNg cHambEr volumE
The coee doses the brew unit may use
vary according to the models of the brew
unit.
The upper piston will automatically position.
The unit may use the doses specied here
below according to the model or diameter
of the brewing chamber.
Brew unit doses
Z4000 NE (∅ 46) 7,5 g - 15 g.
CUP SENSOR
Some models are equipped with a cup
sensor intended to detect the presence of
any object that may be placed between the
reex reector and the sensor itself.
The sensor has 2 leds intended to signal
the state:
-Green: sensor power supply.
-Orange: cup presence or absence
For a correct operation it is necessary to
keep the emitter and the reex reector in
front of it clean.
6
5
3
1
2
4
Fig. 23
1. Dispensing compartment tray
2. Grid
3. Cup sensor
4. Board
5. Display glass for reflector
6. Compartment lighting
