ELECTRIC CONNECTION
The machine is arranged for electrical op-
eration at a 120 VAC single-phase voltage
For connection make sure that the rating
will comply with the mains data, in particu-
lar that the supply voltage value shall lie
within the limits recommended for the con-
nection points;
It is absolutely necessary to use a main
switch in compliance with the installa-
tion rules in force, placed in an accessi-
ble position. It shall be featured in such
a way that it can support the maximum
load required as well as ensure com-
plete disconnection from the mains on
the conditions of overvoltage category
III and, therefore, the protection of
circuits against earth faults, overloads
and short-circuits.
The switch, the power socket and the corre-
sponding plug shall be located in an acces-
sible position.
The electrical safety of the machine is only
ensured when the machine is correctly and
eciently grounded according to the safety
standards in force.
-
tal safety requirement and, in case of
doubt, to require professionally quali-
carefully.
The supply cable is of a exible type with a
xed plug.
If necessary, the connection cable shall be
replaced by qualied personnel by using
only exible SJTO 3X14AWG electrical wire
with a NEMA 5-15P straight plug.
It is forbidden to use adapters, multiple
The manufacturer disclaims all respon-
sibility for any damage caused by the
non-observance of the precautions
mentioned above.

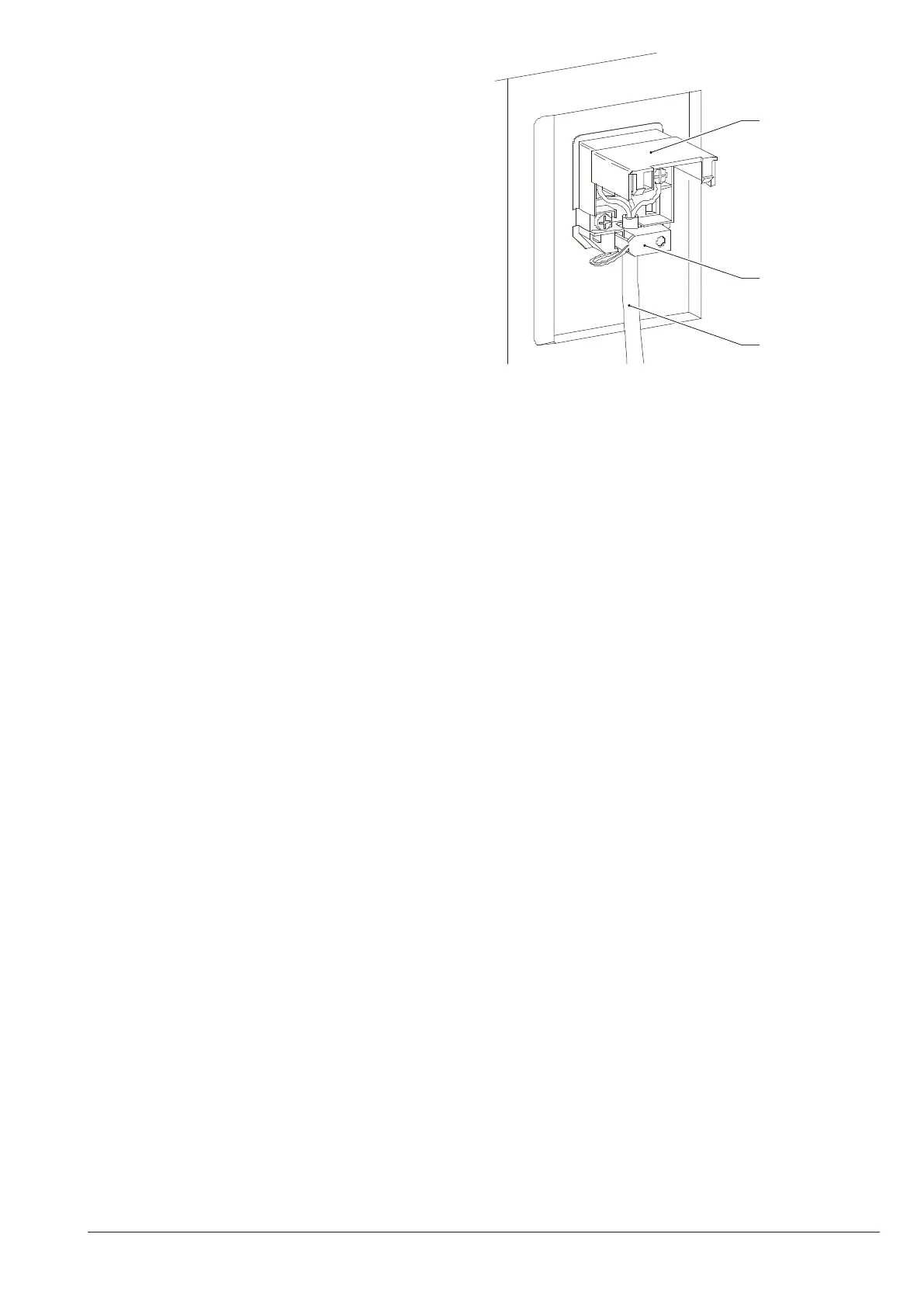

Fig. 19
1. Small lift cover
2. Cable clamp
3. Supply cable
