76 02-2023 6095 00

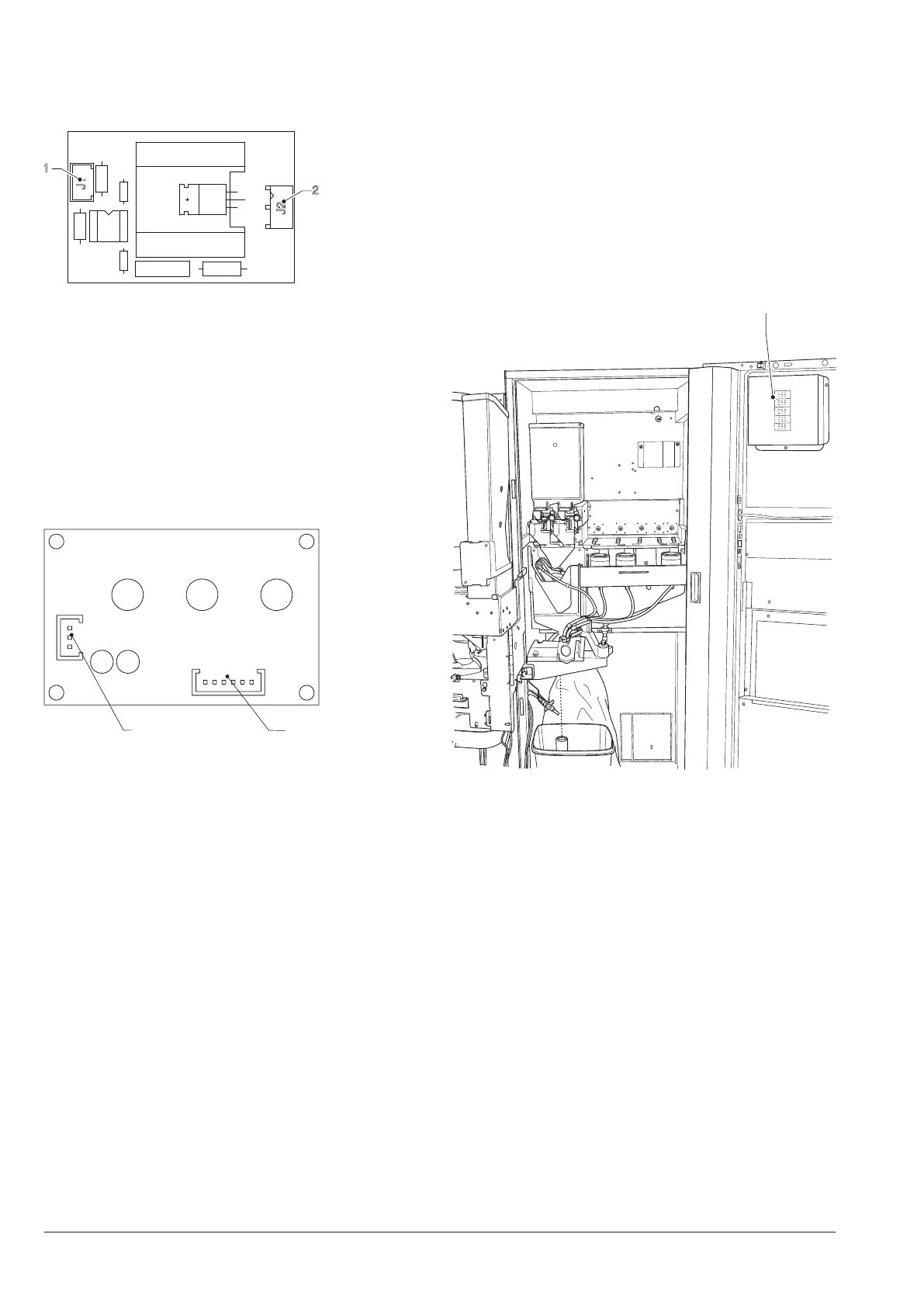

BOILER CONTROL BOARD
The board is intended to control the trip of
the boiler heating element.
J1
J2
Fig. 50
1. J1 To the actuation board
2. J2 To the boiler heating element
CURRENT REGULATOR BOARD
The current regulator board will supply
lighting LEDs by means of direct current.
The board will provide for the constant
brightness of aesthetic panels.
The board is arranged on the CPU board
support.
J1
J2
Fig. 51
1. To the CPU board
2. To the lighting LED's
POWER SUPPLY UNIT
No maintenance and/or calibration is re-
quired by the power supply unit.
To act on the supply unit, e.g. for replace-
ment, never forget to detach the equipment
from the mains.
Before replacing the supply unit,
supply unit are the same as those of
the previous one.
Fig. 52
1. Touch screen supply unit
