WATER SUPPLY
The vending machine must be supplied
with drinkable water according to the provi-
sions in force in the place of installation of
the equipment.
The machine must be connected with the
drinkable water mains at a pressure be-
tween 7,25 psi and 123,28 psi.
Let water come out of the water network
until it is limpid and free of any trace of dirt.
Use a tube, the min. inner diameter of
which is 0,25 inch (also available as a kit),
capable of withstanding the mains pres-
sure and suitable for use with foodstu, to
connect the water mains to the union of the
water inlet solenoid valve.
It is recommended to apply a tap on the

an accessible position.
To connect the machine with the water

tubes only.
Never re-use the existing material.
witH No filtEr prE-arraNgEmENt
Connect the water network with the ¾”
union of the water inlet solenoid valve by
means of a tube that can support the net-
work pressure and of a type suitable for
foodstus (min. inner diameter 0,25 inch).
1
2
3

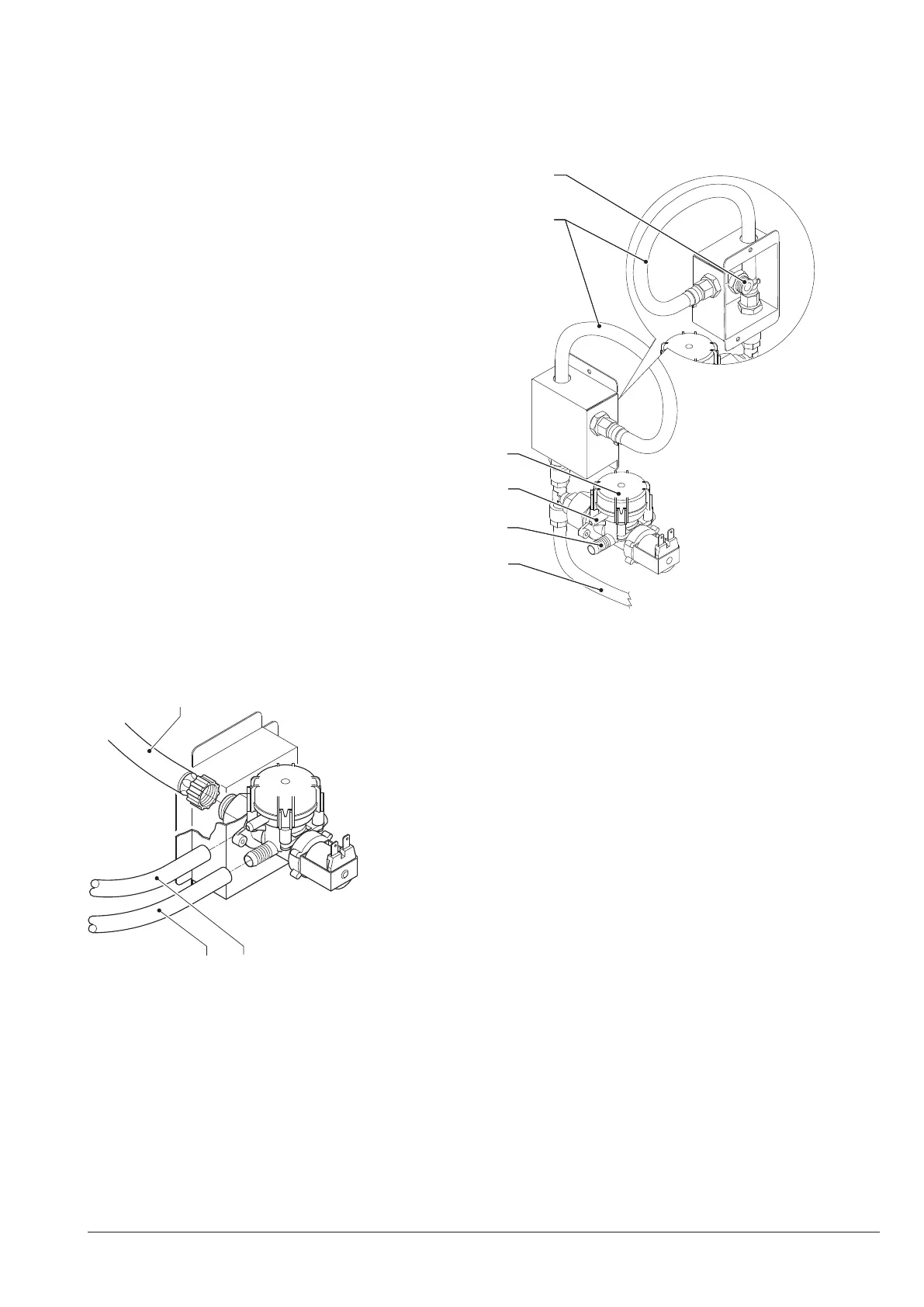

Fig. 17
1. Water inlet tube
2. supply tube
3. Overflow tube
witH filtEr prE-arraNgEmENt
Connect the water network with the ¼” un-
ion by means of a tube that can support the
network pressure and of a type suitable for
foodstus
2
6
4
1
5
3
Fig. 18
1. Water inlet union
2. Filter connection pre-arrangement
3. Water inlet solenoid valve
4. Overflow tube union
5. Supply tube union
6. To the cold drink cooling unit (optional)
