02-2023 6095 00 73
ELECTRONIC BOARDS
The electronic boards are designed to be
used on several equipment models.
If replaced, it is necessary to check the
conī°guration of the electronic boards and
to upload the corresponding software.
powEr supply aND fusEs
The fuse intended to protect the power sup-
ply mains can be accessed without disas-
sembling the cover.
The transformer supplying the boards and
the relative protection fuses are arranged
inside the electric panel.
Remove the covers after detaching the
machine from the mains.
ElEctric paNEl
ATTENZIONE
TOGLIERE TENSIONE
PRIMA DI MUOVERE
LA COPERTURA
ATTENZIONE
TOGLIERE TENSIONE
PRIMA DI MUOVERE
LA COPERTURA
ATTENZIONE
TOGLIERE TENSIONE
PRIMA DI MUOVERE
LA COPERTURA
ATTENZIONE
TOGLIERE TENSIONE
PRIMA DI MUOVERE
LA COPERTURA
1
2
8 7 6 5 4 3
9
10

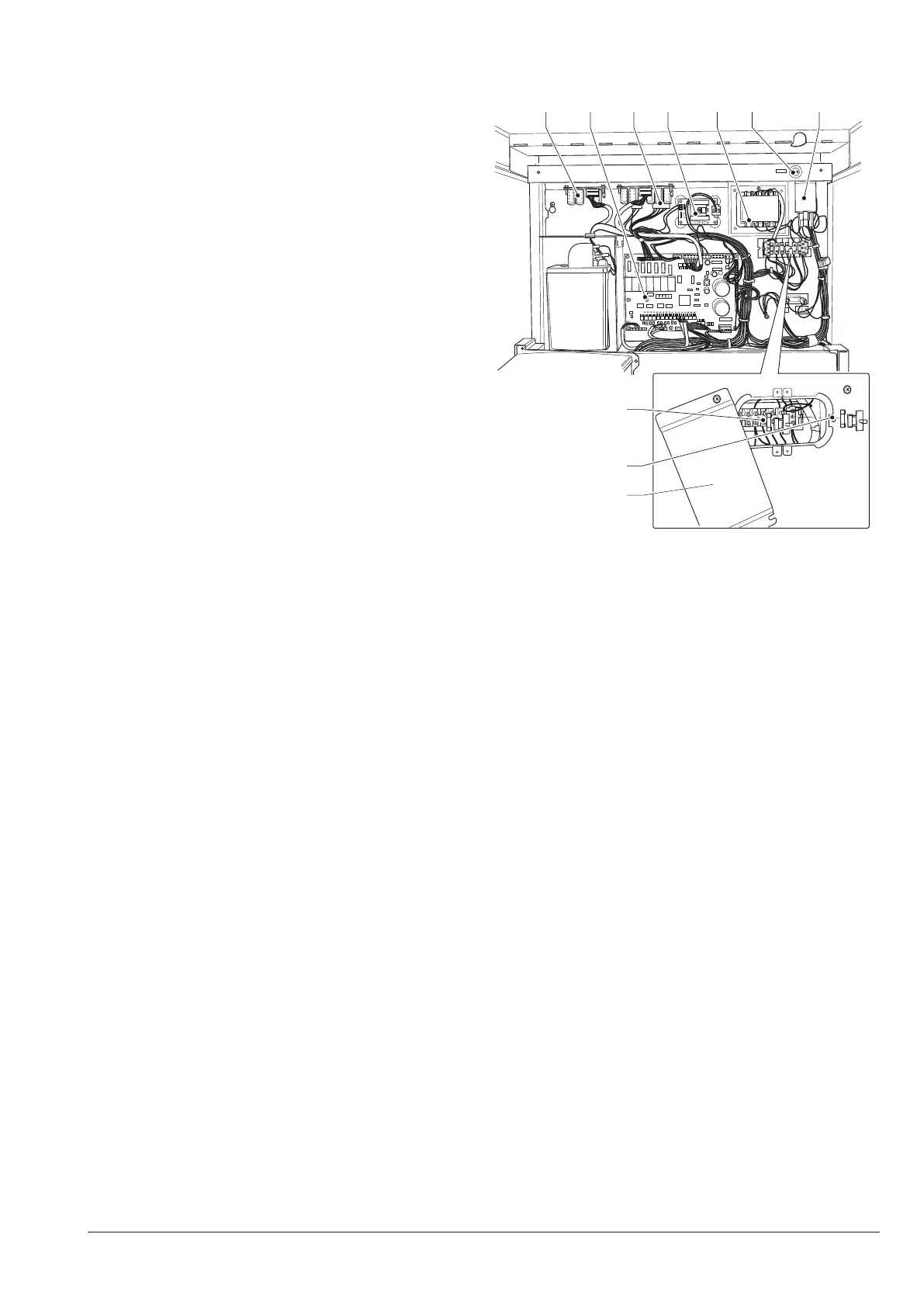

Fig. 46
1. Primary transformer fuses
2. Secondary transformer fuses
3. Interference suppressor
4. Mains fuse
5. Transformer
6. Boiler control board
7. Relay board (if any)
8. Actuation board
9. Fuse access flap
10. Relay board (if any)
