EVS Multicam LSM Operating Manual

Issue
10.01.F
EVS Multicam Version 10.01 – Operating Manual
EVS Broadcast Equipment SA – July 2009
20
4.3 CLIP NUMBERING HIERARCHY
Multicam can store up to 900 (multiplied by the number of cameras) clips
and 100 playlists in its libraries. 900 clips with up to 6 camera angles per
clip results in 5400 clips on a server. This number is displayed in the upper
right window of the VGA Setup screen (SHIFT+F2 from the PC keyboard).
If you are working with XNet SDTI network, keep in mind that the total
number of clips on the entire network is limited to 6,000 or 16,000,
depending on the network settings. This number is displayed in the same
area on the VGA Setup window.

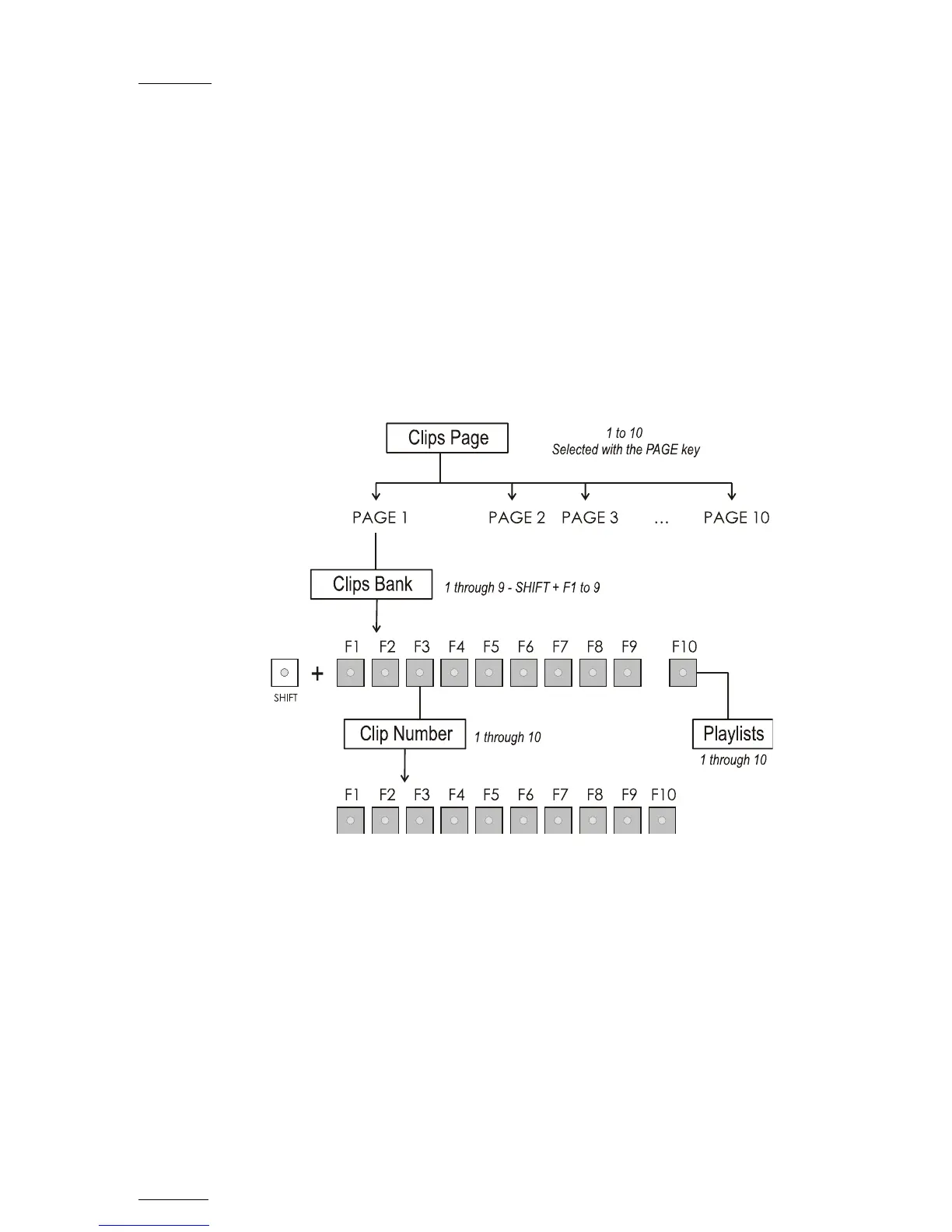

The following diagram represents the hierarchy of the Multicam clip
numbering system. As an example, clip number “112” is used:
