Extreme Networks ExtremeSwitching 5320 Series - Page 63

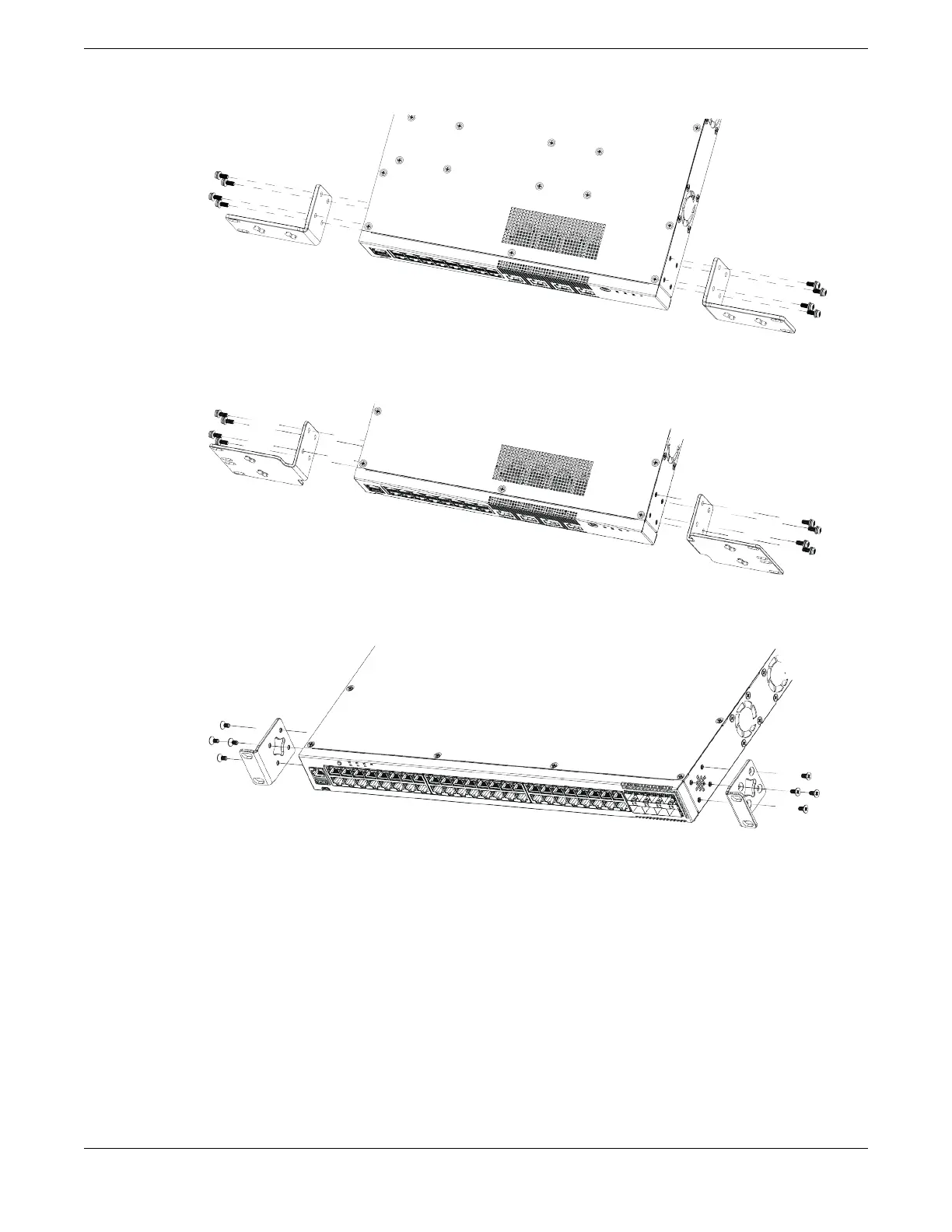

Figure 33: Flush-Mount: Attaching 1U mounting ears to 5320-16P models
Figure 34: Flush-Mount: Attaching larger mounting ears to 5320-16P models
Figure 35: Flush-Mount: Attaching short mounting ears to models 5320-48P/T
and 5320-24P/T
Install Your Switch Install the Device in a Rack
ExtremeSwitching 5320 Series Hardware Installation Guide 63
